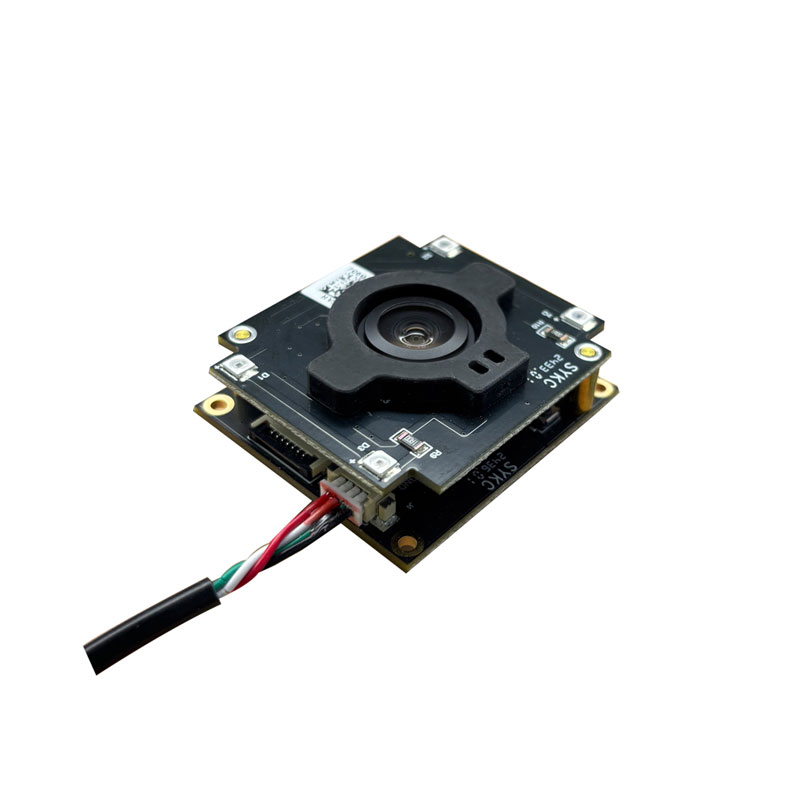

The RD920 Palm Vein Module is a cutting-edge biometric solution engineered for high-security applications. Leveraging advanced palm vein recognition technology, it utilizes an ultra-wide field of view and 850nm infrared illumination to capture unique vascular patterns with precision. Powered by the X1600 dual-core processor (optimized for computational efficiency and real-time control), it integrates a true random number generator and supports robust encryption protocols (RSA-2048, AES-256, SHA-24). With a rapid recognition time of <500ms and exceptional accuracy (FAR ≤0.0001%, FRR ≤0.01%), it ensures secure, contactless authentication. The module’s TOF sensor enables palm detection within 5–15cm and operates reliably across diverse environments (-15°C to 55°C).
Key Features
- Dual-Core X1600 Processor: Balances high-speed computation and real-time control.
- Military-Grade Encryption: Supports RSA-2048, AES-256, and SHA algorithms.
- Ultra-Fast Recognition: <500ms response time with 10,000-palm storage capacity.
- Environmental Resilience: Operates in extreme temperatures (-15°C to 55°C) and humidity (20–80%).
- TOF Distance Sensor: Ensures accurate palm positioning and anti-spoofing.
Parameters
|
product model |
RD920 |
|

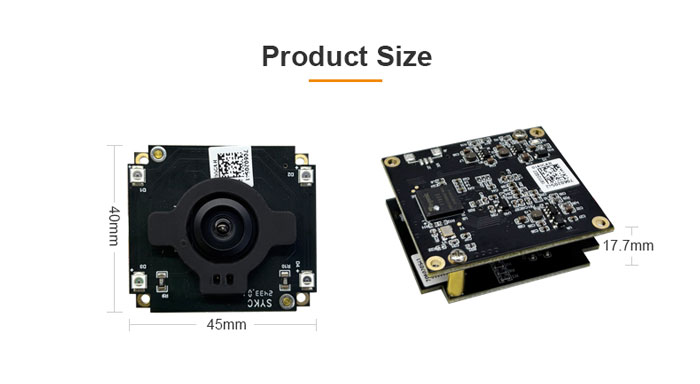

dimensions |
45X40X17.7mm |
|
image dimensions |
960*720pt |
|
Interface |
JST-1.25-4P FPC-1.0-7P |
|
Wait for electromechanical current |
0mA |
|
working temperature |
-15℃~55℃ |
|
Working humidity |
20% to 80% (no condensation) |
|
working voltage |
4.8V-6.3V |
|
rated current |
<150mA |
|
peak point current |
<700mA |
|
operating system |
Support Windows, Linux, Android |
