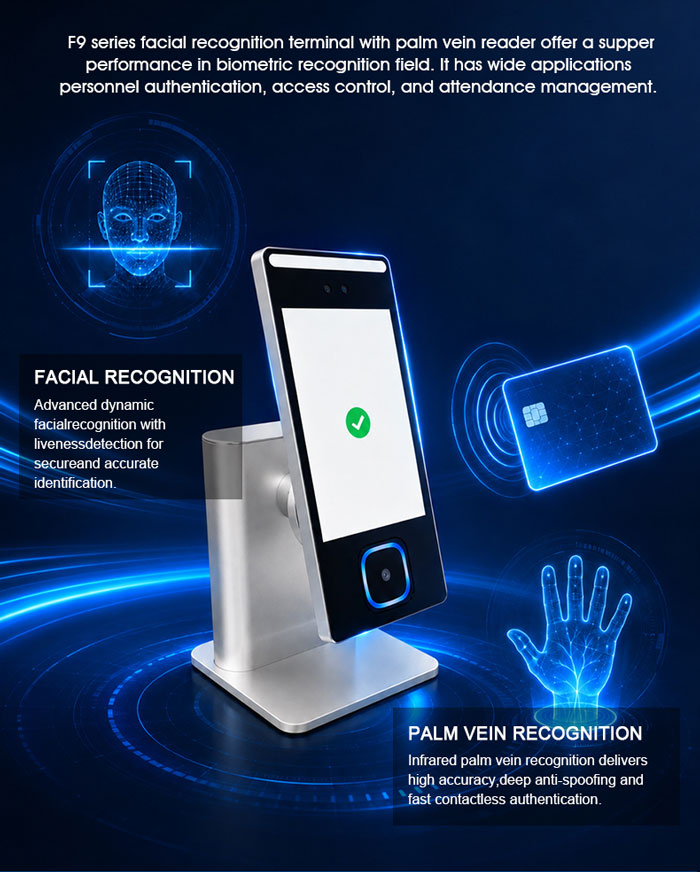

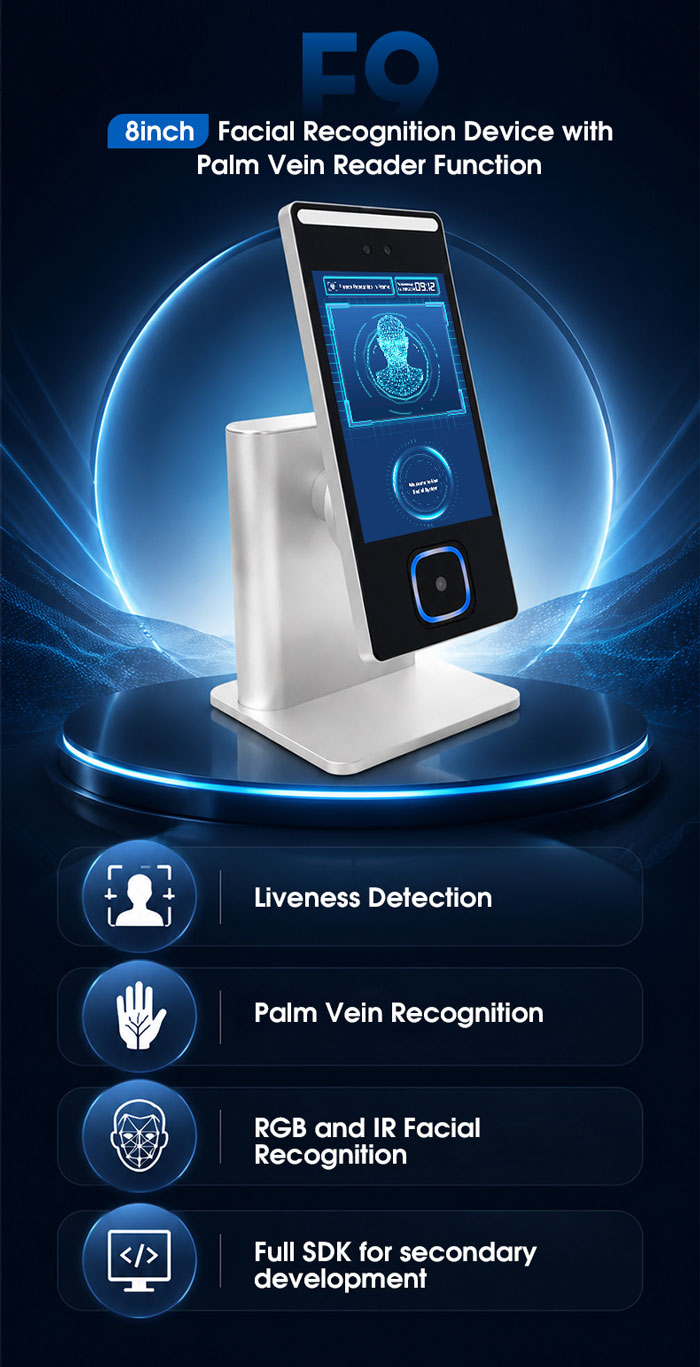

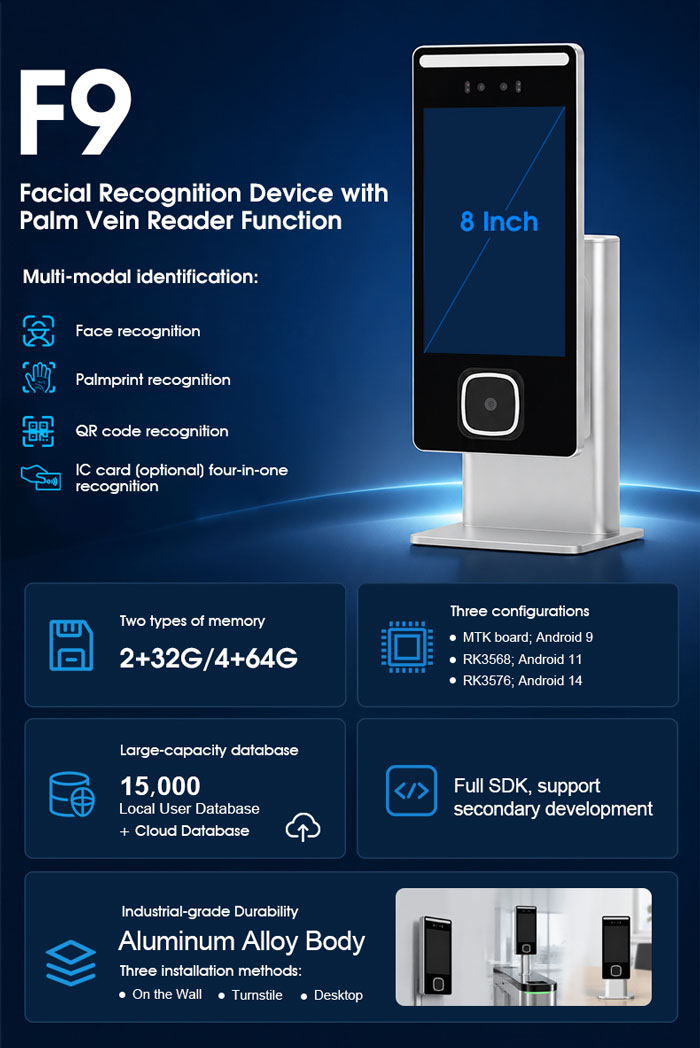

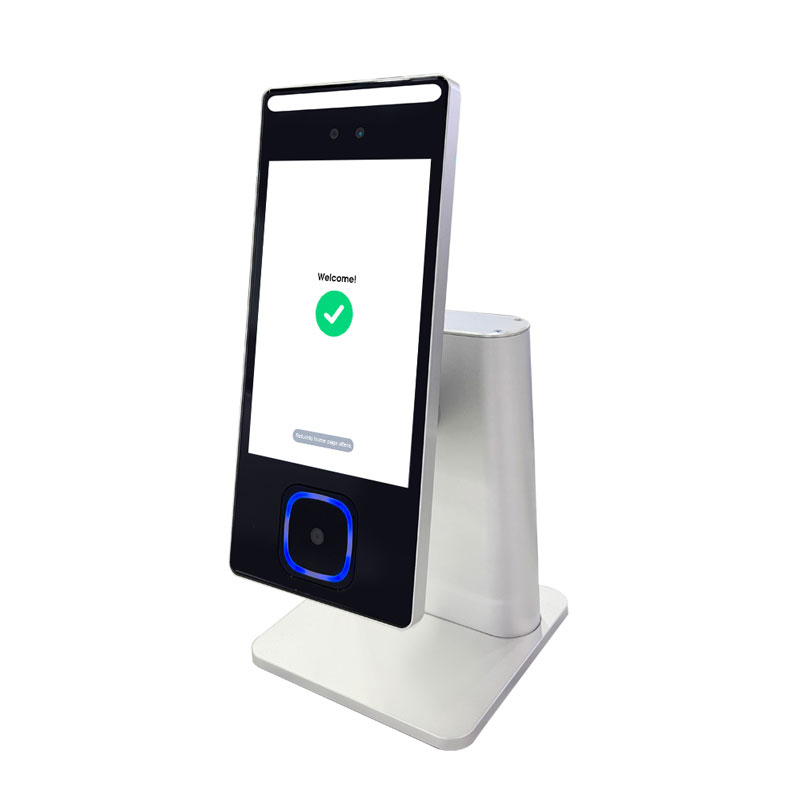

The Rakinda F9 is a next-generation biometric access control system that combines facial recognition, palm vein biometrics, and IC card authentication in a single sleek 8-inch touchscreen device. As touchless biometrics such as face and palm recognition continue to gain traction in the post-pandemic era, the F9 delivers a hygienic, frictionless security experience for offices, government facilities, healthcare institutions, and corporate lobbies. Supporting a local user database of up to 15,000 users with optional cloud database expansion, this face recognition access control terminal is ideal for enterprises seeking high-security access control with multimodal authentication. Available in three configurations (MTK/Android 9, RK3568/Android 11, RK3576/Android 14) with 2+32GB or 4+64GB memory options, the F9 offers flexibility for any deployment scale. Full SDK support enables seamless secondary development for system integrators and ISV partners.
Facial Recognition & Palm Vein Reader Parameters
|
Algorithm |
Support algorithms from top domestic AI manufacturers |
||
|
Function |
Combined with facial recognition algorithms, it supports a database of tens of thousands of faces. |
||
|
Velocity |
Combined with face recognition algorithm, face recognition |
||
|
Anti-fake |
Palmar vein recognition, with live detection support |
||
|
Interaction |
8-inch ultra-high-definition touchscreen with voice interaction prompts |
||
|
Environment |

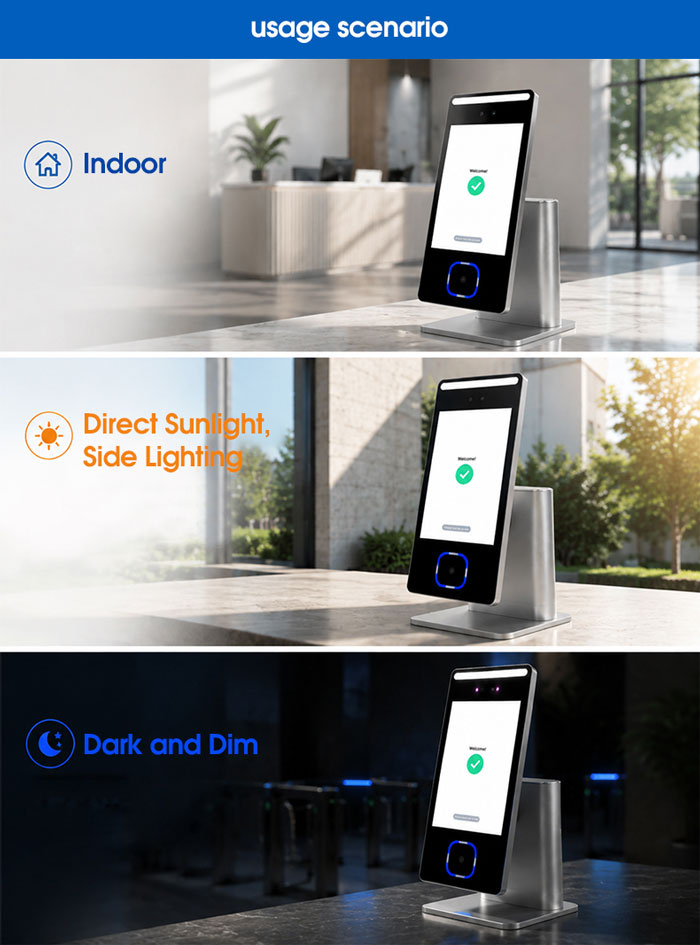

Exemplary environmental adaptability, demonstrating excellent performance under both low-light conditions and strong backlighting. |
||
|
Open |
Provide an SDK to meet the secondary development needs of S/ISV vendors |
||
|
Verification |
Palmar massage (palmar creases, palmar veins) |
||
|
Access control attendance Face recognition all-in-one machine terminal |
|||
|
Product Features |
Major function |
Access control, attendance check, access gate |
|
|
Service environment |
Indoor, outdoor |
||
|
Enclosure |
Aluminum alloy material, silver color |
||
|
Face Recognitio Camera |
Type |
RGB |
IR |
|
Resolution ratio2 |
2 million pixels |
2 million pixels |
|
|
Vertical wide anglen |
65° |
65° |
|
|
Horizontal wide angle |
40° |
40° |
|
|
White fill light |
Support |
||
|
Infrared fill light |
Support |
||
|
Palm Vein Reader |
Type resolution ratio |
1.3 million pixels |
|
|
Algorithm performance |
Shaking Angle Heel angle ≤ 30°, roll angle ≤ 30°, yaw angle ≤ 360° |
||
|
Palms Recognition Accuracy Rate 98% |
|||
|
Computing power requirements for the host machine ≥4*A17@1.8GHz |
|||
|
Algorithm Deployment Strategy Supports both on-premise and cloud deployments |
|||
|
Human-Computer Interaction |
Display screen |
8-inch full-view 170° IPS LCD display with a resolution of 800×1280 |
|
|
Touch screen |
Support |
||
|
Backlight |
White |
||
|
Pilot lamp |
Red, Green |
||
|
Communication Mode |
Ethernet |
10/100 Mbps Ethernet |
|
|
WIFI |
Complies with the IEEE 802.11b/g/n standard (2.4 GHz) |
||
|
Identification Method |
Face recognition |
Support |
|
|
Palmar vein identification |
Support |
||
|
IC Card & Network Certificate |
Optional |
||
|
Interface |
Data interface |
USB 2.0*1 RJ45*1 |
|
|
Source |
Adapter |
DC5525 – Power supply: 12 V/2 A |
|
|
Environmental Requirements |
Working temperature |
-20℃ ~ 60℃ |
|
|
Static electricity ESD |
IEC61000-4-2,LEVEL3 |
||
|
Working Humidity |
20% to 90% (in the absence of condensed water droplets) |
||
|
Way to Install |
Desktop, wall-hanging, turnstile |
||
