Category：Biometric Recognition
Product ID：RD960
Views：13788
Product Introduction：In stock
Details

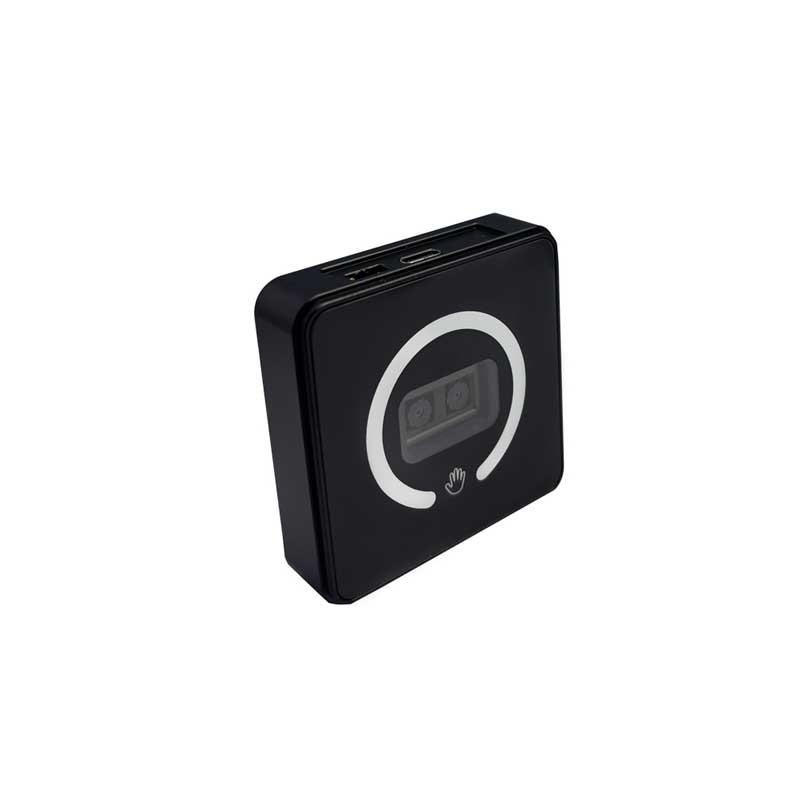

The RD960 is a cutting-edge biometric palm scanner that combines palmprint and palmar vein recognition for unparalleled authentication accuracy. Unlike traditional fingerprint access control systems that are susceptible to spoofing, the RD960 leverages liveness detection and near-infrared imaging to capture unique subcutaneous vascular patterns — internal biometric features that are impossible to steal, replicate, or counterfeit. With a False Acceptance Rate (FAR) of < 0.0000001% and False Rejection Rate (FRR) of < 0.01%, this palm vein biometric device delivers enterprise-grade security for access control systems, payment processing, attendance management, and government identity verification applications. The module supports 1:1 and 1:N comparison modes, stores up to 1,000 users locally (8,000 optional), and operates in temperatures from -20°C to 75°C — making it ideal for contactless biometric authentication in demanding environments.
Biometric Access Control Parameters
Palm vein recognition
Image dimensions
800*600pt*2
Interface
JST- 1.25-4P JST- 1.25-7P
Standby current
180mA
Working temperature
-20℃~75℃
Working Humidity
20% to 80% (no condensation)
Working voltage
5V- 16V
Rated current
<300mA
Peak point current
<600mA

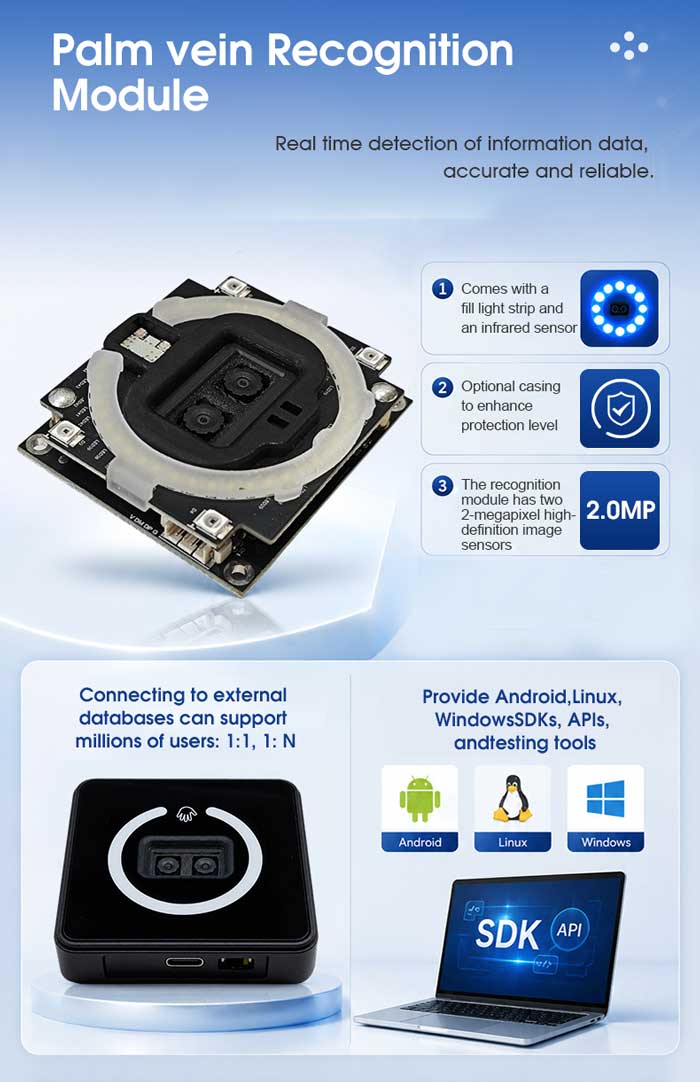

Operating system
Supports Windows, Linux, and Android
Palmar vein recognition based on palm patterns

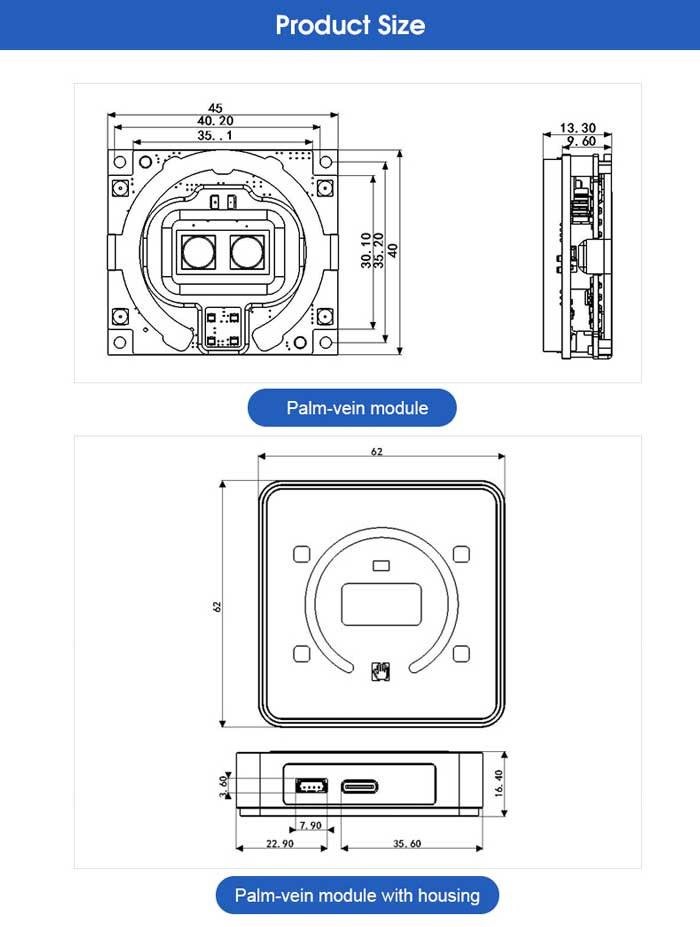

dimensions
45X40X13.2mm
Application Angle
Horizontal rotation ±20°; Vertical tilt ±20°
Comparison Mode
1:1 1:N
Storage capacity
The module supports up to 1,000 users with an optional
capacity of 8,000; backend comparison is unlimited.
Accuracy
FAR≤0.0000001% FRR≤0.01%
Power On Time
<600ms
Recognition time
<500ms
Recognition Distance
6- 15cm
Illuminant
850 nm: 2 W (peak);
White light: 1 W (peak);
Tricolor light: 0.25 W (peak)
Characteristic length
560 Byte

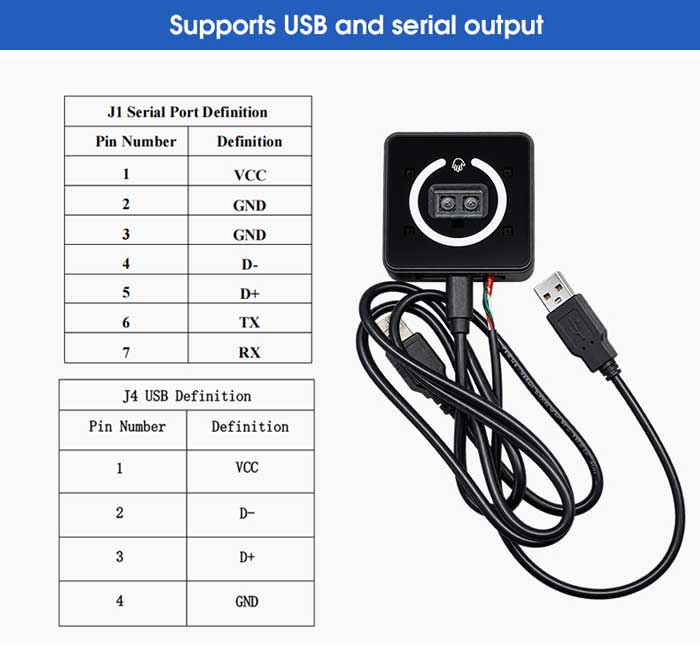

Interface
Serial Port, USB
