Category：Bus QR Code Scanner
Product ID：RD700
Views：5383
Product Introduction：In stock
Details

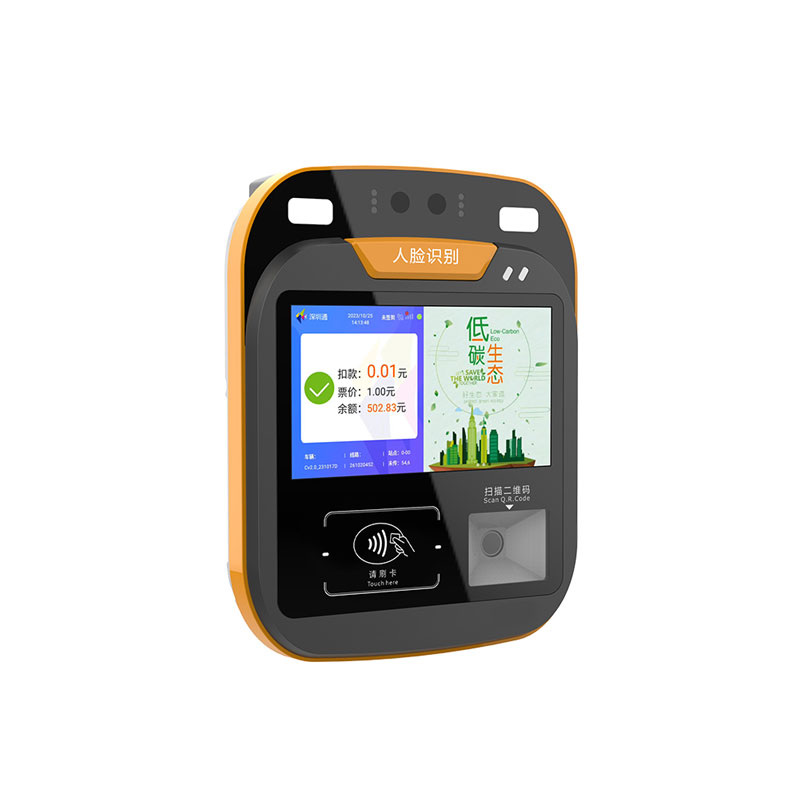

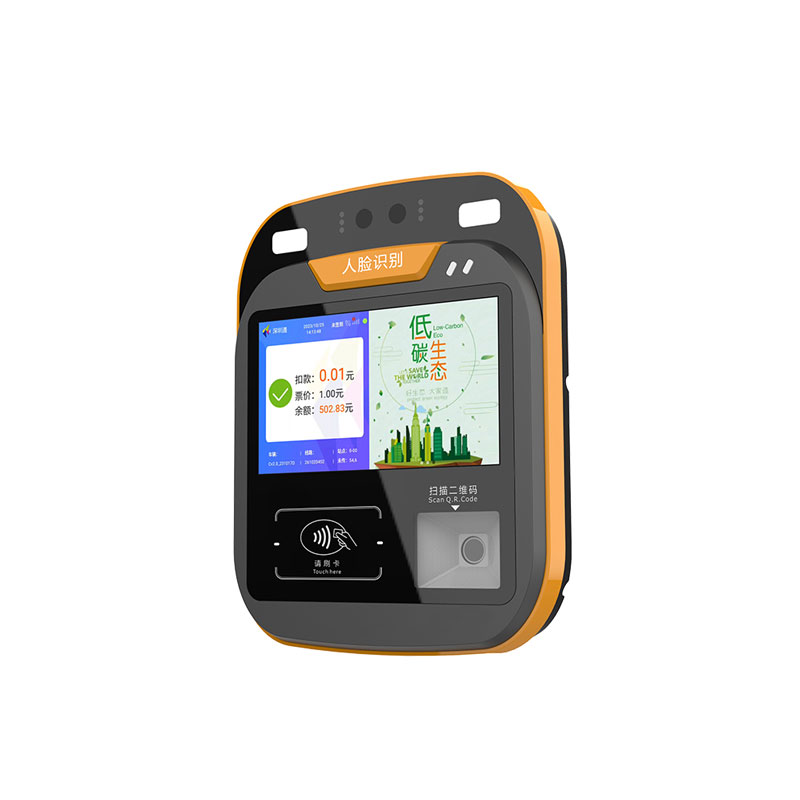

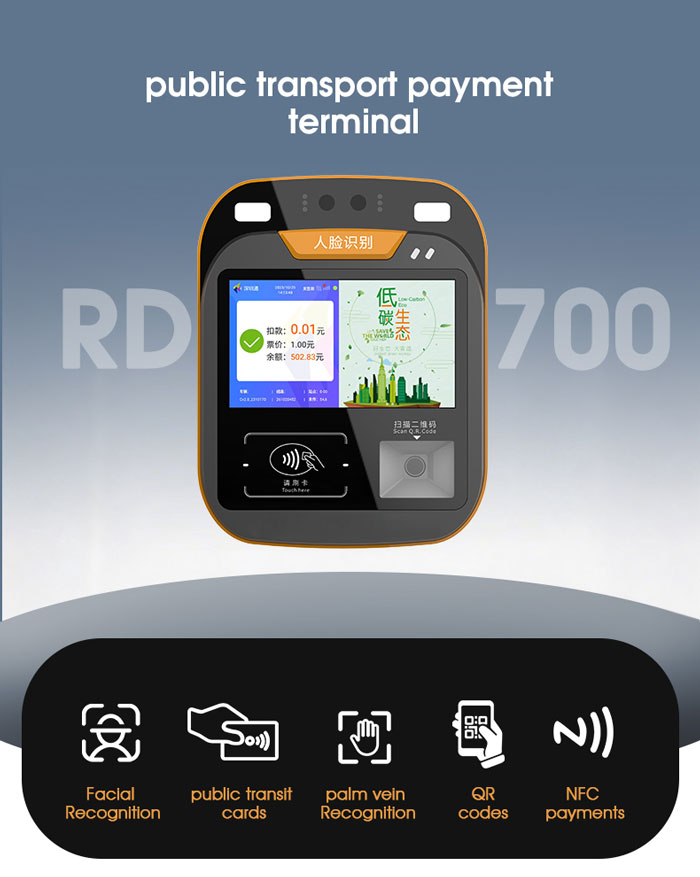

The RD700 is an Android OS vehicle-mounted payment terminal engineered for the future of public transit. Designed as a high-volume payment processing terminal for buses and fleet management, it integrates card payment, QR code scanning, and offline data authentication (ODA) for sub-second "tap-and-ride" experiences without real-time network connectivity. By supporting password-free and signature-free transactions, this all-in-one payment machine accelerates boarding, reduces queues, and meets the growing commuter demand for seamless, secure digital mobility.
Palm Scanning Terminal Key Features:
- All-in-One Payment Acceptance: Supports open-loop EMV contactless cards, QR codes (WeChat Pay, Alipay), and ODA-enabled offline verification.
- Android OS & High-Volume Processing: Built on a flexible Android platform for easy integration with fleet management software and capable of handling peak-hour transaction surges.
- Password-Free & ODA Ready: Enables rapid boarding with "tap-and-go" speed, leveraging ODA to validate cards instantly even in tunnels or remote routes.
Parameters of Facial Recognition Payment
|
Essential Parameter |
|
|
Processor |
Quad-core Cotex-A55 Android 11 |
|
Operating System Internal Storage 4G Module |
ROM: 16G RAM: 2G |
|
GPS |
All-network 4G module with standard SIM card support*1 and built-in 4G antenna GPS+Beidou dual-mode positioning; single Beidou positioning; GPS antenna |
|
WiFi |
IEEE 802.11 b/g/n 2.4G |
|
Bluetooth |
4.0 Bluetooth |
|
PSAM Block |
4 PSAM cards supporting ISO 7816 standard |
|
Scan Code Module |
Code: QR Code (QR 1/2, Micro); Angle: 360° rotation, tilt +/-40° |
|
Radio Frequency Module |
13.56MHz dedicated antenna; ISO 14443 TYPE A/B card; optional C card and 2.4G RF-SIM card |
|
Dual-camera System |
Resolution: 1920X1080; 200W pixels; 30fps; supports face detection and liveness detection |
|
Ferroelectric FRAM |
ferroelectric 8K byte FRAM |
|
ID Card Module |
Supports resident ID card scanning (Optional) |
|
Temperature Measurement Module |
Temperature measurement range: 30°C-45°C (Optional) |
|

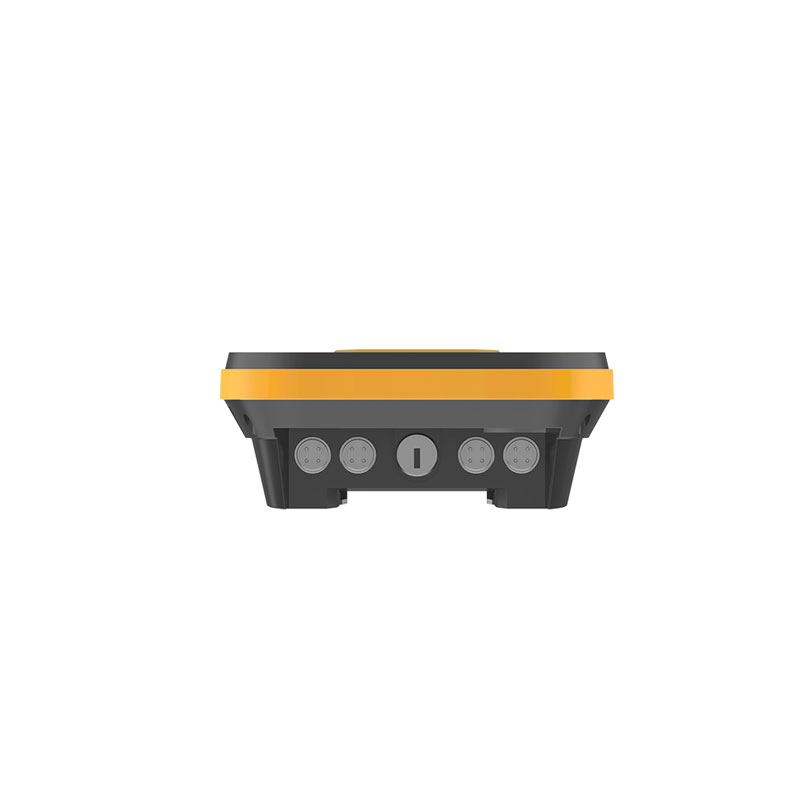

Peripheral Interface |
|
|
Port |
RS485/RS232/Ethernet ports (default RS485, with three selectable functions) |
|
OTG |
USB-OTG port*1 |
|
Universal Inter Face |
RS232 universal interface*1 |
|
CAN |
CAN interface*1 (Optional) |
|
GPS |
External GPS antenna interface (Optional) |
|
Human-computer Interaction |
|
|
Display Screen |

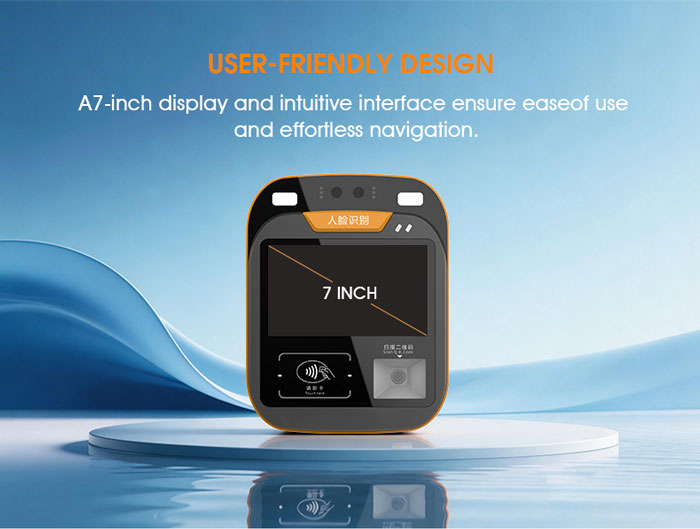

7-inch color display screen Function keys*4 |
|
Function Key Pilot Lamp |
Status indicator lights*2 Buzzer*1 |
|
Buzzer |
15W 4Ω speaker |
|
Speaker |
1-digit display *1, 4-digit display |
|
Nixie Light Swing Card |
Clearly marked card-swiping area |
|
Power Supply Specifications |
|
|
Power Management |
Powered by a DC power supply (9-36V) |
|
Install |
|
|

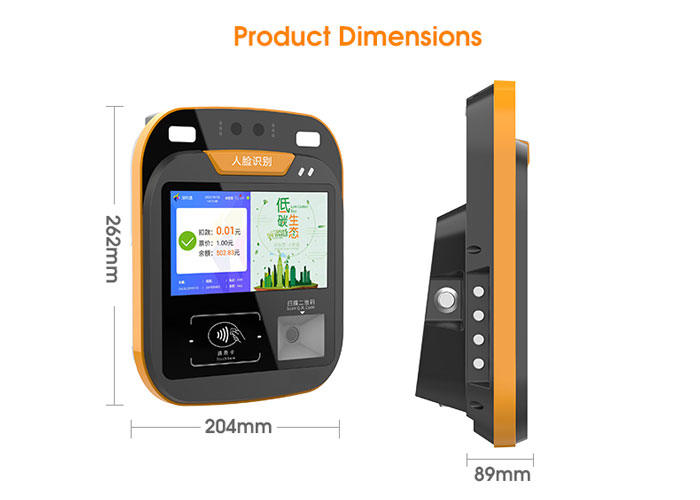

Size |
262mm(L) * 204mm(W) * 89mm(H) |
|
311mm (L) * 204mm (W) * 89mm (H) (with module) |
|
|
Weight |
Approximately 1.8kg |
|
Work Environment |
|
|
Operating Ambient Temperature |
-20℃ ~ +70℃ |
|
Product Parameter Storage Ambient Temperature |
-40℃ ~ +85℃ |
|
Humidity of the Working Environment |
40°C, 15%–95% relative humidity (no condensation) |
|
Storage Environment Humidity |
50°C, 5%–95% relative humidity (no condensation) |
|
Product Property |
|
|
Reliability |
IP54; ≥1 million read/write operations; over 100,000 button presses |
