Category：Bus QR Code Scanner
Product ID：RD200
Views：35382
Product Introduction：In stock
Details

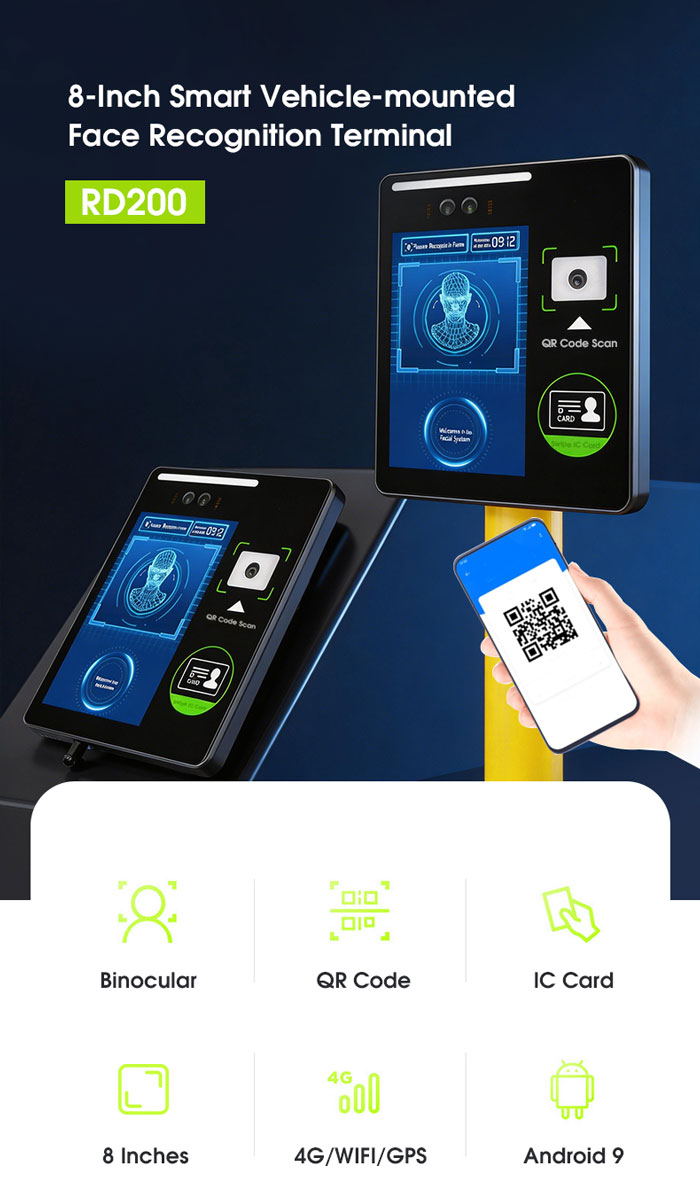

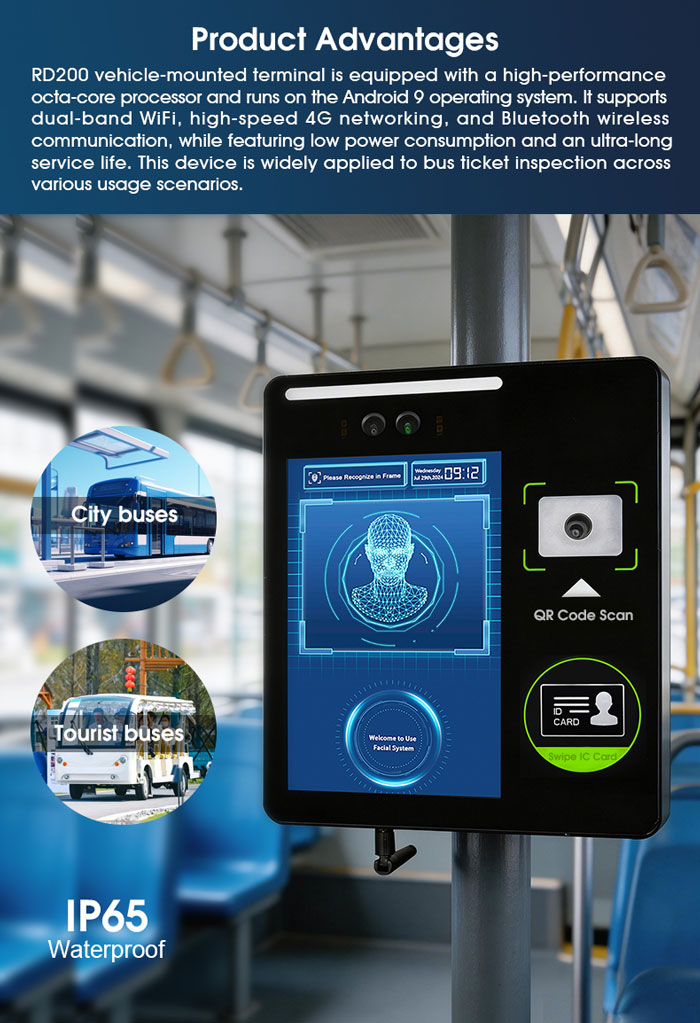

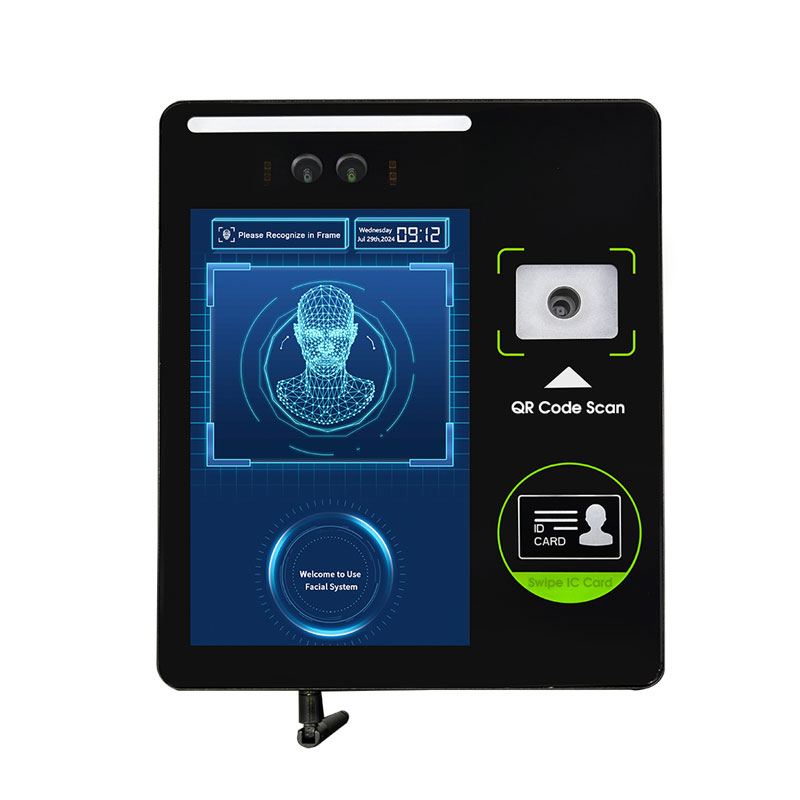

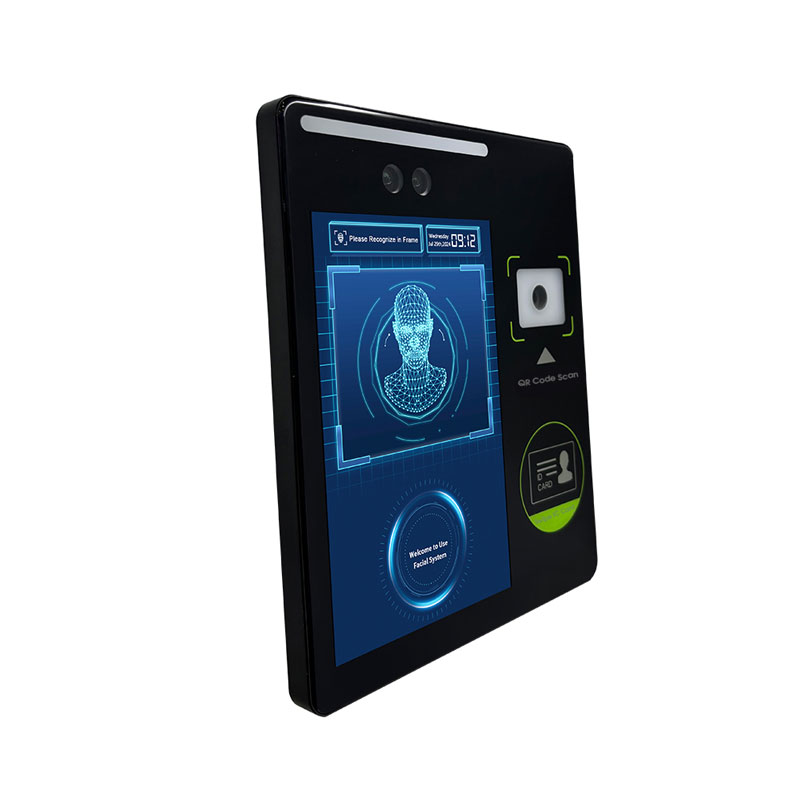

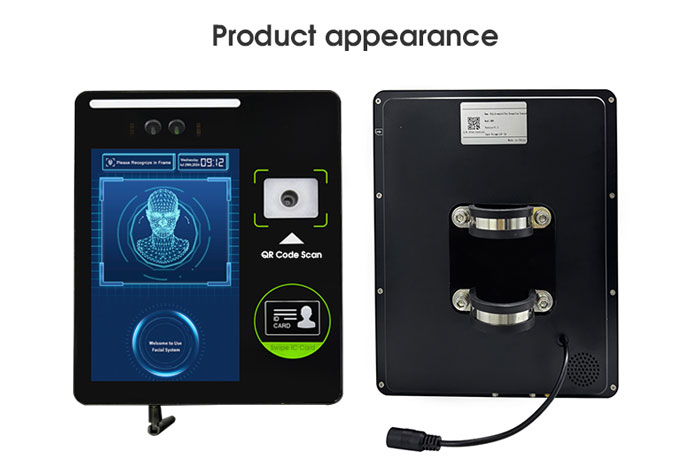

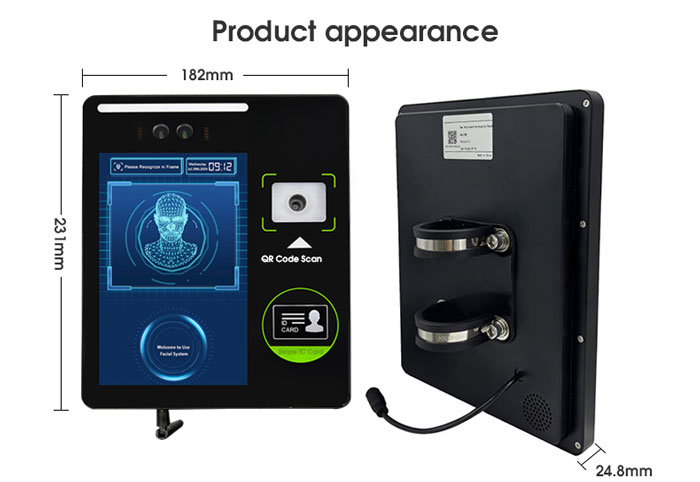

The Rakinda RD200 is a cutting-edge Android face recognition terminal designed for modern smart transit applications. More than just a simple bus fare collection system, it consolidates multiple payment modes into one seamless hardware solution. The device supports contactless payment via QR codes (1D/2D) for popular mobile wallets, offline dual-function IC and ID card swiping, and high-speed biometric facial recognition for rapid authentication. By leveraging its octa-core processor and 4G connectivity (CAT7 compatible with all domestic networks), the RD200 ensures fast, reliable transaction processing for urban transportation, school buses, ferries, and corporate shuttles.
Vehicle Mounted Terminal Key Features:

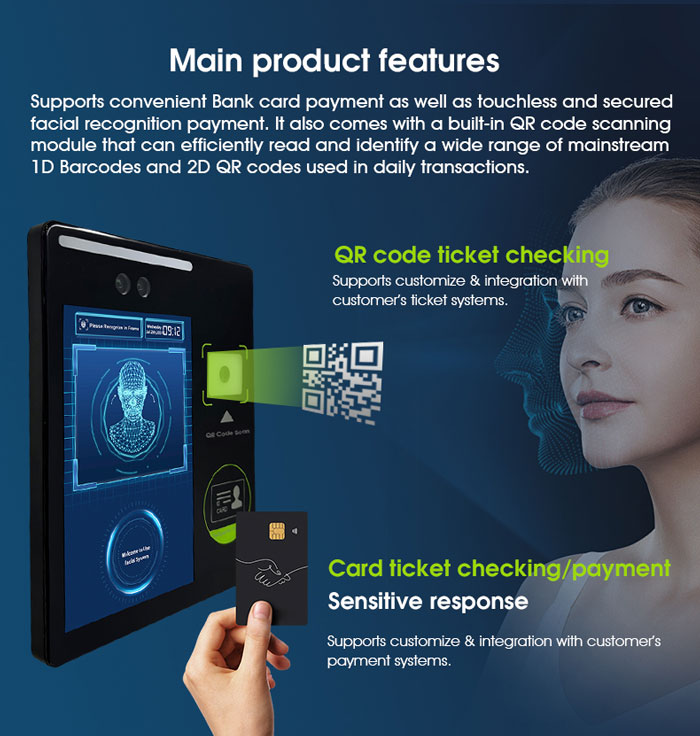

- Unified Smart Transit Payment: Fully integrates QR code payment (WeChat Pay/Alipay-ready), offline IC card swiping, and facial recognition payment into a single vehicle-mounted device, enabling a completely cashless passenger experience.
- High-Performance Android 9.0 System: Powered by a 2.0GHz octa-core CPU with 4GB RAM and 64GB storage, ensuring smooth operation of complex ticketing apps and rapid data processing even in high-traffic scenarios.
- Robust Biometric Authentication: Equipped with high-resolution RGB and IR cameras (200MP each) featuring wide-angle lenses (87.8°) and anti-spoofing infrared fill light, ensuring accurate passenger verification under varying light conditions inside vehicles.
Parameters of Bus IC Card Reader
|
Essential Parameter |
|||
|
Major function |
Nucleus body |
||
|
Service environment |
Inside the train, at the station platform |
||
|
Enclosure |
Aluminum alloy + composite material, black |
||
|
Camera |
Type |
RGB |
IR |
|
Resolution ratio |
200 megapixel |
200 megapixel |
|
|
Vertical wide-angle |
87.8° |
87.8° |
|
|
Horizontal wide-angle |
57.2° |
||
|
White fill light |
Support |
||
|
Infrared supplementary light lamp |
Support |
||
|
Core parameters |
System |
Android 9.0 |
|
|
CPU |
S8-core processor with 2.0GHz clock speed (4xCortex-A73 cores up to 2.0GHz + |
||
|
4xCortex-A53 cores up to 2.0GHz)upport |
|||
|
SC |
4GB RAM, 64GB storage |
||
|
Human-computer interaction |
Display screen |
8 Inch full-view 170° IPS LCD screen with 800×1280 resolution |
|
|
Touch screen |
Support |
||
|
Communication mode |
4G |
CAT7, fully compatible with all domestic networks |
|
|
WIFI |
Complies with IEEE802.11b/g/n standard (2.4GHz) |
||
|
Fixed position |
Beidou, GPS, GPS external antenna, mounted on the windshield |
||
|
Recognition method |
Human face |
Support |
|
|
Certificate of identification |
Supports (offline), dual-function reader (IC and ID card) |
||
|
Two-dimension code |
Support |
||
|
Support Interface |
Data interface |
USB2.0*1 |
|
|
Mains switch |
Support |
||
|
Source |
Vehicle Adapter |
12V to 100V conversion to 12V5A |
|
|
Environmental requi rements |
Working temperature |
-10～50 |
|
|
Working humidity |
20% to 90% (in the absence of non-condensable water droplets) |
||
|
Static electricity ESD |
IEC61000-4-2,LEVEL3 |
||
|

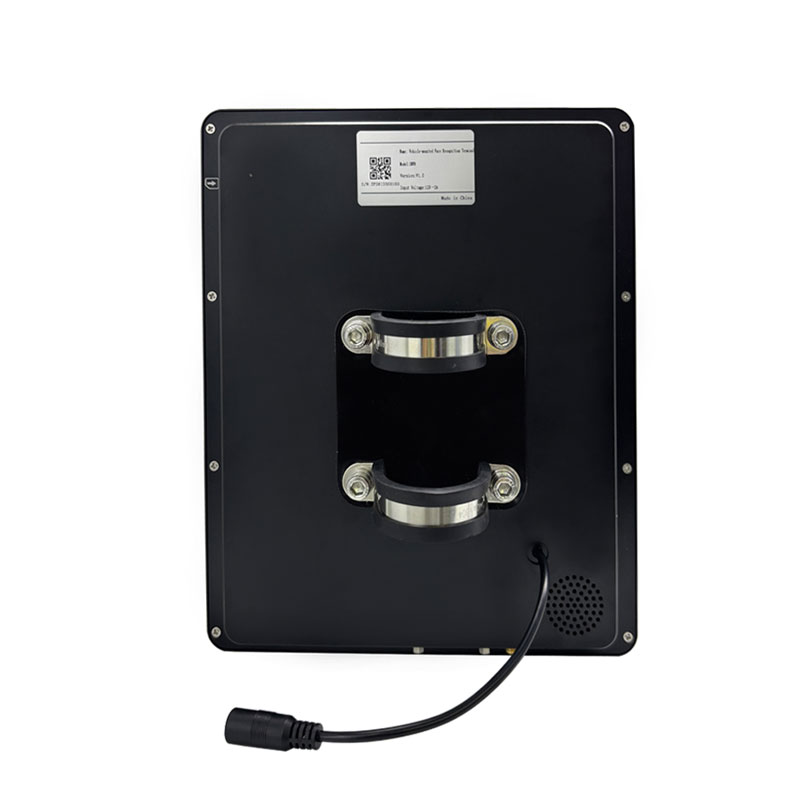

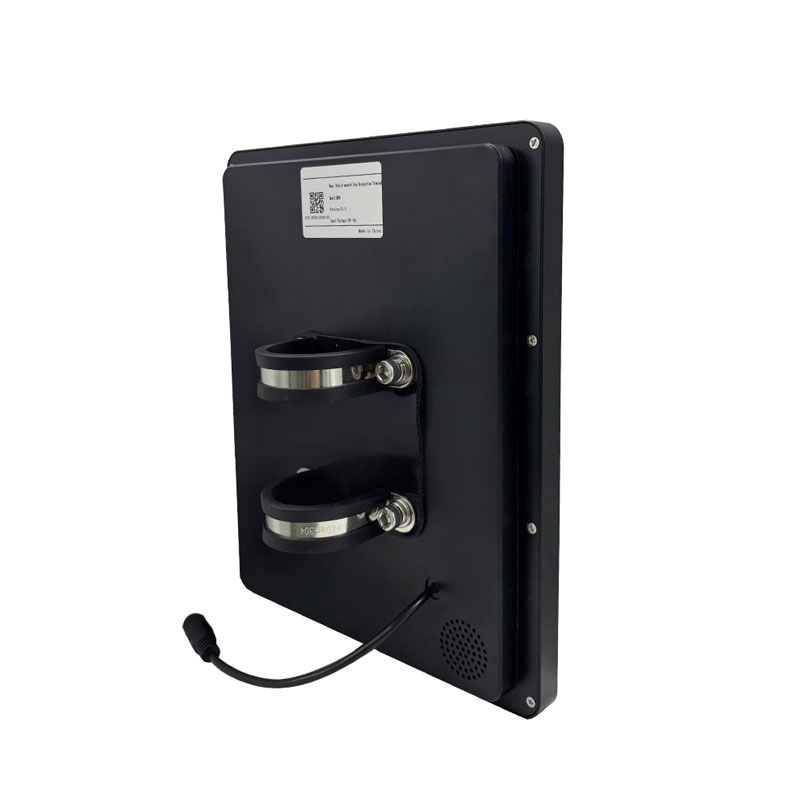

Way to install |
1 This method |
Vehicle |
|
