Category：Bus QR Code Scanner
Product ID：RD800
Views：28569
Product Introduction：In stock
Details

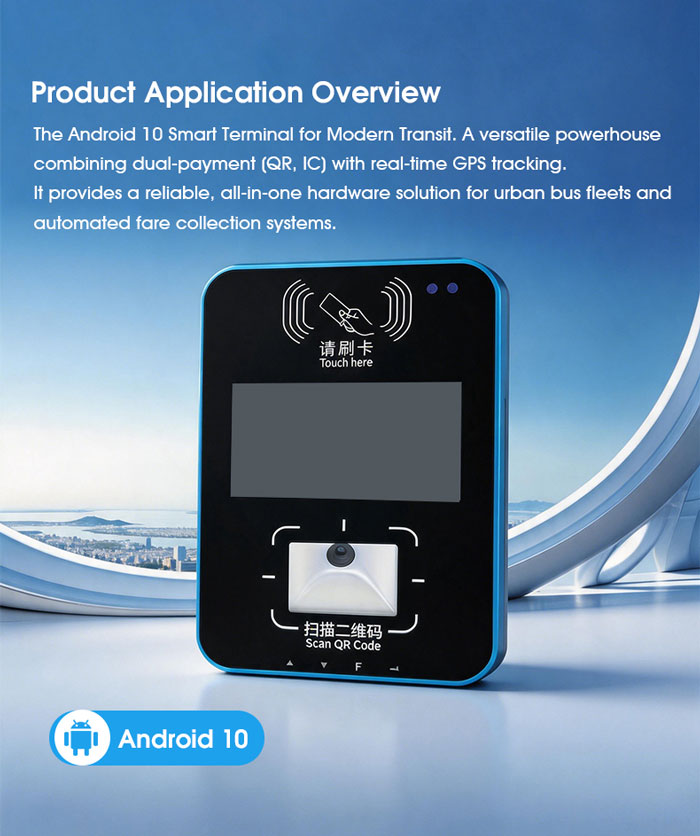

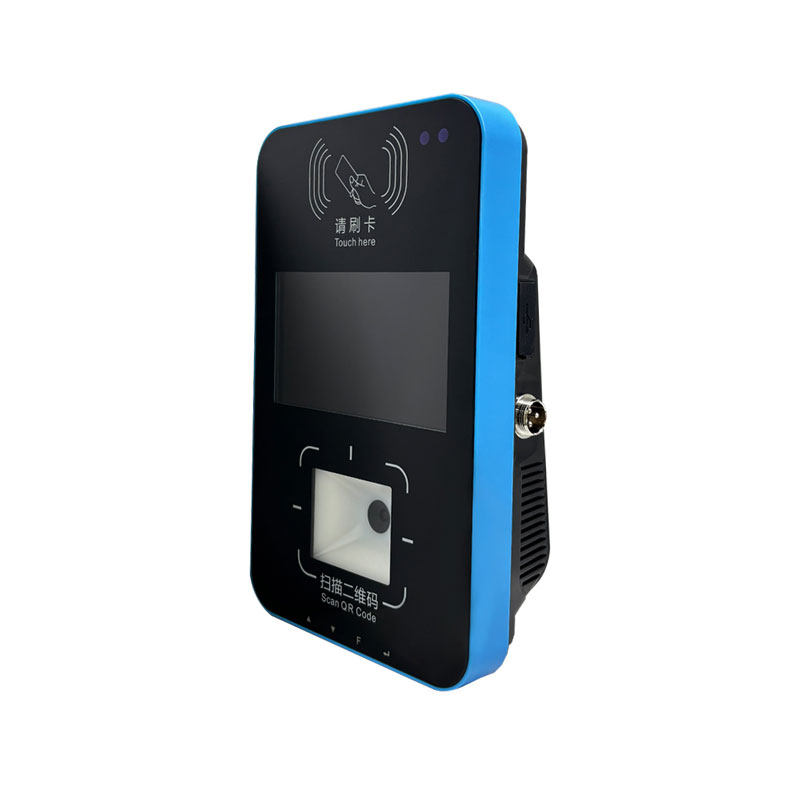

The RD800 is a professional Android 10 rugged transit validator designed specifically for modern public transportation. Combining multi-payment support, 4G wireless communication, GPS & Beidou dual positioning and industrial IP54 rugged design, this vehicle-mounted payment terminal delivers stable fare collection and real-time tracking for buses, ferries and trains.

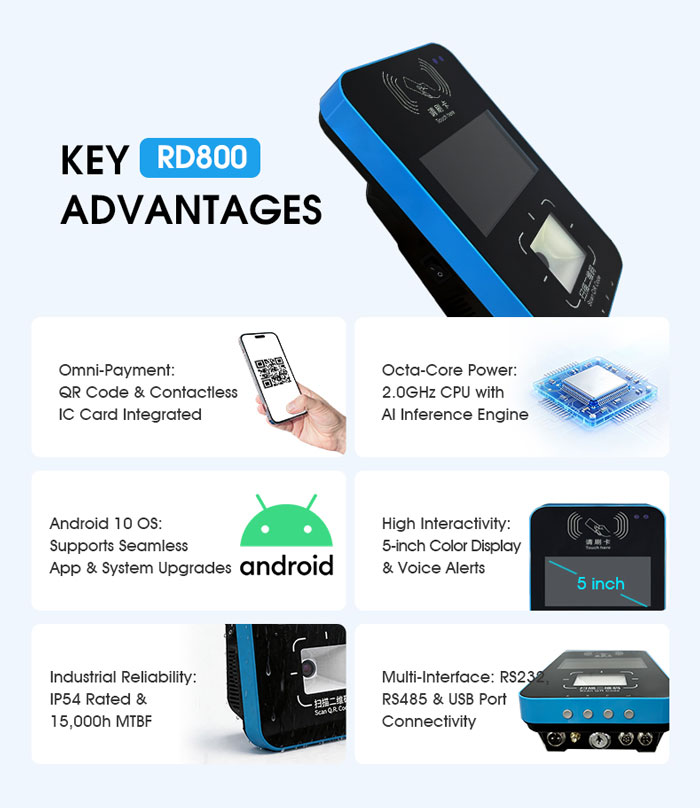

Feature :

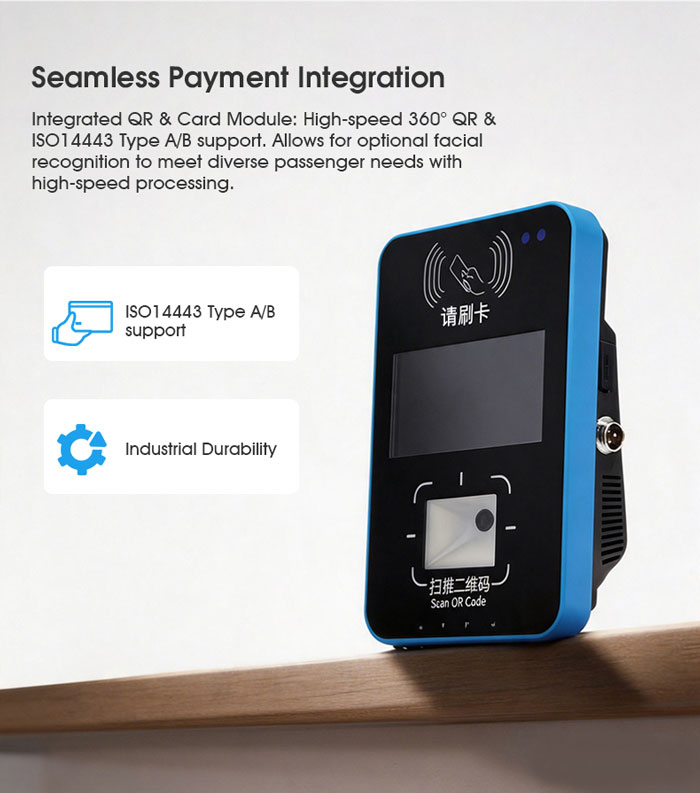

1: All-in-One Multi-Payment Support
This smart transit terminal supports public transit cards, bank cards, NFC payment and QR code scanning. It features 360° rotation and ±40° tilt QR recognition, enabling fast and contactless fare collection for all public transit scenarios. Optional 2.4G RF-SIM and ID card recognition are available for extended use.
2: IP54 Industrial Rugged Vehicle Design
Built with IP54 dustproof and waterproof grade, the RD800 supports 9–36V wide voltage protection. It works reliably in extreme temperatures from -20°C to +70°C, resisting vehicle vibration and high heat. With over 100,000 button cycles and 1 million read-write operations, it ensures long service life for onboard heavy-duty use.

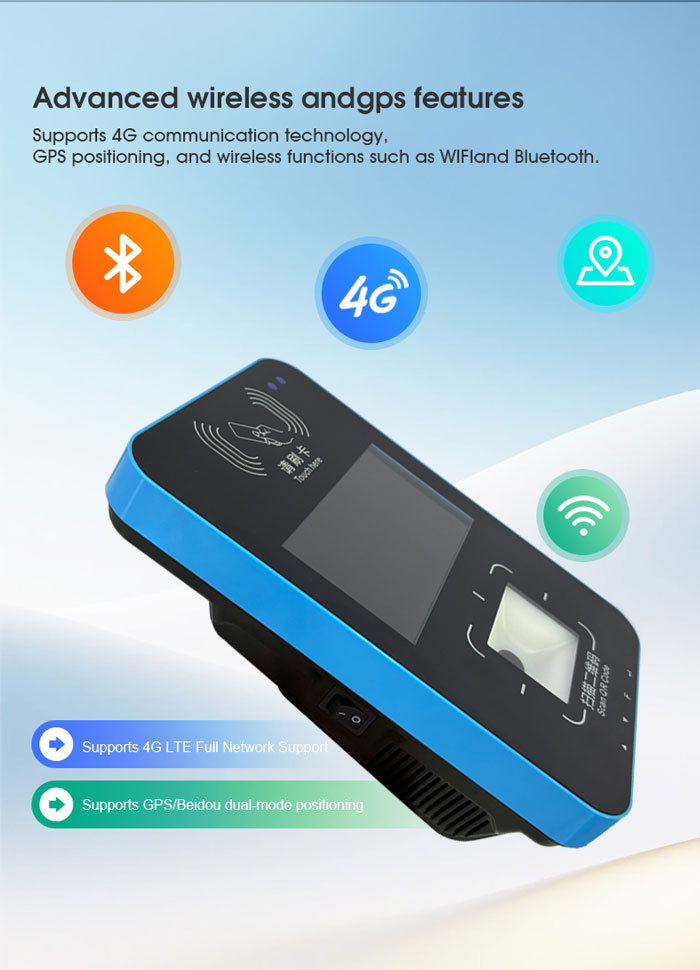

3: 4G Wi-Fi Bluetooth & Dual GPS Positioning
Equipped with 4G LTE full network, 2.4G Wi-Fi and Bluetooth 4.0, the terminal realizes stable wireless data transmission. GPS and Beidou dual-mode positioning support real-time vehicle location tracking. Rich interfaces including RS232, RS485 and USB allow easy connection with peripheral devices.
Powered by octa-core Cortex-A53 processor, 2GB RAM and 32GB ROM, the RD800 runs smoothly on Android 10 system. It adopts a 5-inch 720*1280 color LCD display, voice alerts and physical function keys for simple human-computer interaction. Compact structure, easy installation and low maintenance make it an ideal bus fare collection terminal for global public transit projects.
Widely applicable as vehicle mounted payment terminal for buses, ferries, trains and other public transport. Perfect for urban transit fare management, intelligent passenger ticketing and real-time fleet monitoring systems.
4G GPS Bus Payment Terminal Parameters
|
Basic module |
|
|
Processor |
Eight-core processor (4 Cortex-A53 2.0GHz cores + 4 Cortex-A53 1.5GHz cores) |
|
Memory |
RAM: 2GB / ROM: 32GB (non-volatile memory ≥ 8KB) |
|
Operating System |
|
|
Communication network |
Supports 4G LTE Full Network Support |
|
WIFI/ PDA |
IEEE 802.11 b/g/n 2.4G, supports Bluetooth 4.0 |
|
Positioning |
Supports GPS/Beidou dual-mode positioning |
|
Display screen |
5-inch color LCD screen with a resolution of 720*1280 |
|
Slot extension |
Supports 4*PSAM cards and 1*SIM card |
|
Payment module |
Card reader: Supports ISO 14443 TYPE A/B, 2.4G RF-SIM (optional),and ID card (optional) |
|
Scan the QR code (QR 1/2, Micro) with 360-degree rotation and ±40° tilt recognition |
|
|

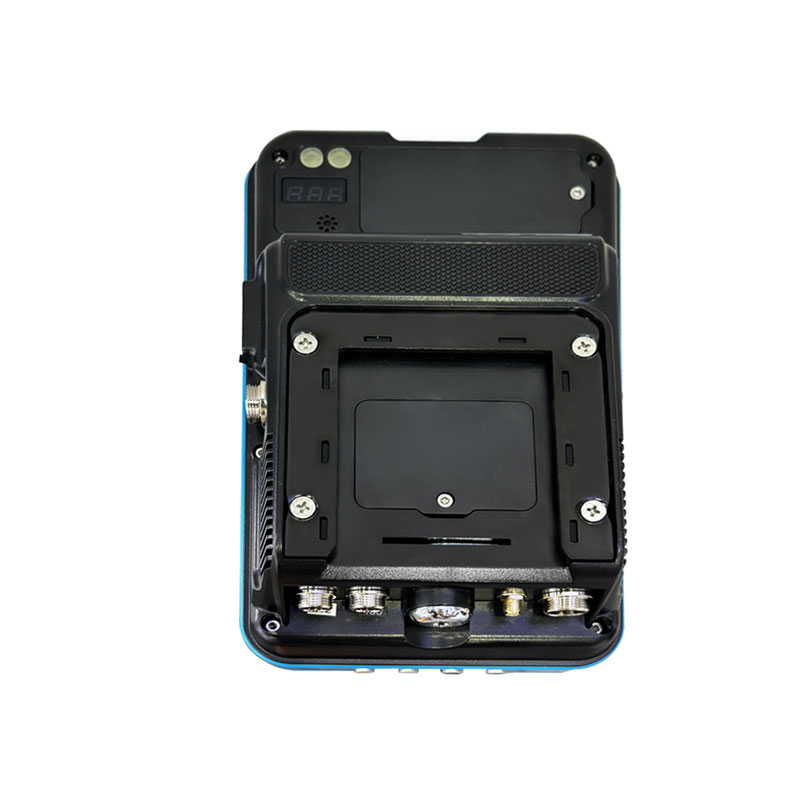

Interfaces |
|
|
Serial interface |
1* RS232 (Ŏ12mm) small keyboard, 1* RS232 (Ŏ16mm), 1* RS485/232 (Ŏ12mm) |
|
USB |
1xUSBport(on the side) |
|
Human-computer interaction |
4 function keys (Up, Down, Back, Confirm), 2 status indicators, 1 three-digit display |
|
Audio output |
1* Speaker (4Ω 3W), 1* Buzzer |
|
Power supply specifications |
|
|
Power input |
DC 9-36V (Ŏ12mm aviation connector) |
|
Clock battery |
RTC battery capacity:≥210mAh |
|
Installation and Environment |
|
|

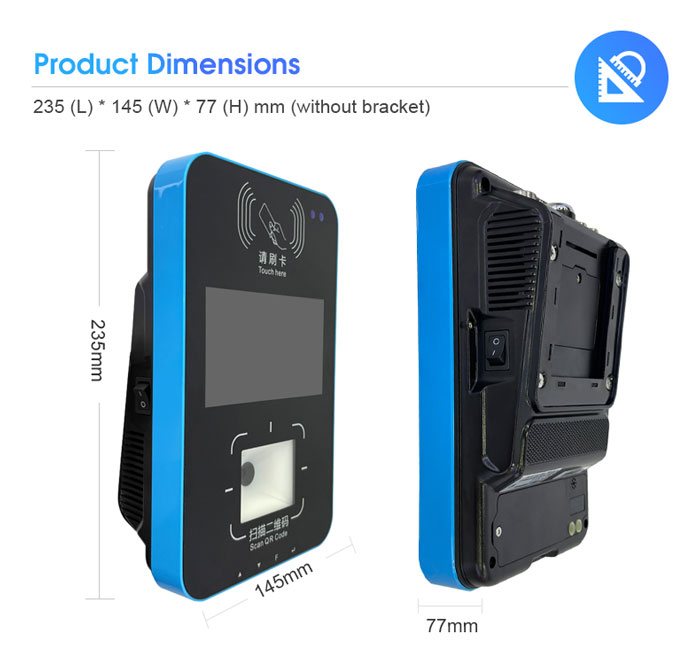

Size |
235 (L) * 145 (W) * 77 (H) mm(without bracket) |
|
235 (L) * 145 (W) * 118.7 (H) mm (with fixed bracket) |
|
|
Weight |
Approximately 1000 grams |
|
Work environment |
Temperature: -20°C to +70°C; Humidity: 15% to 95% RH (no condensation) |
|
Product Property |
|
|
Reliability |
IP54; ≥1 million read/writeoperations; over 100,000 button presses |
