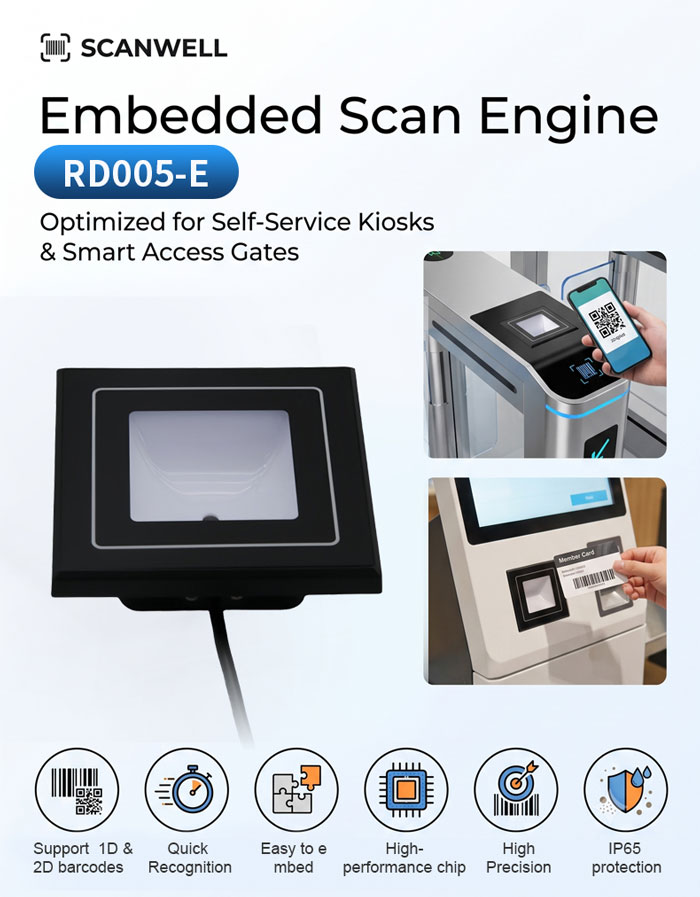

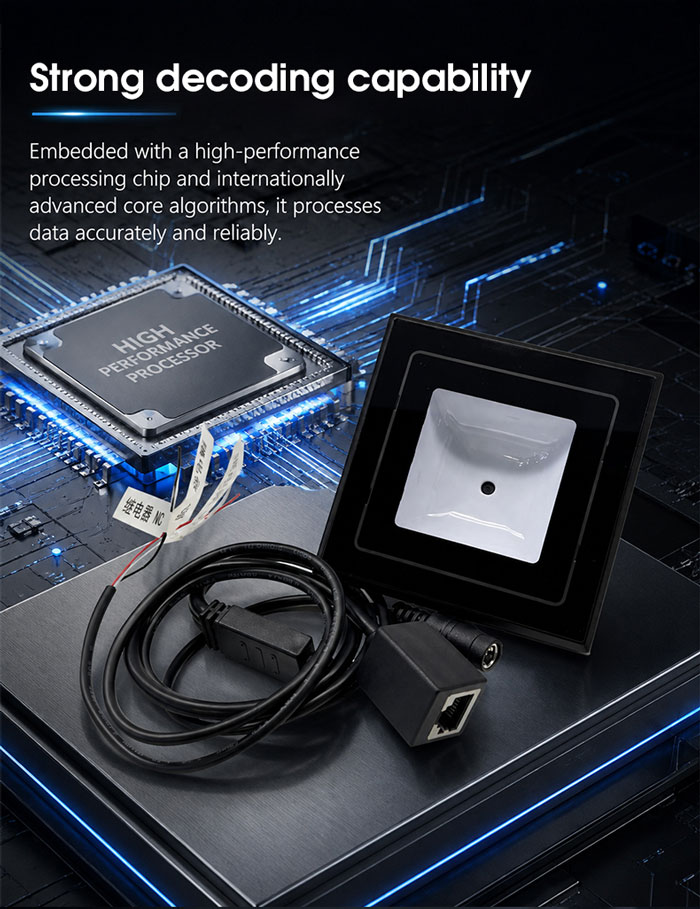

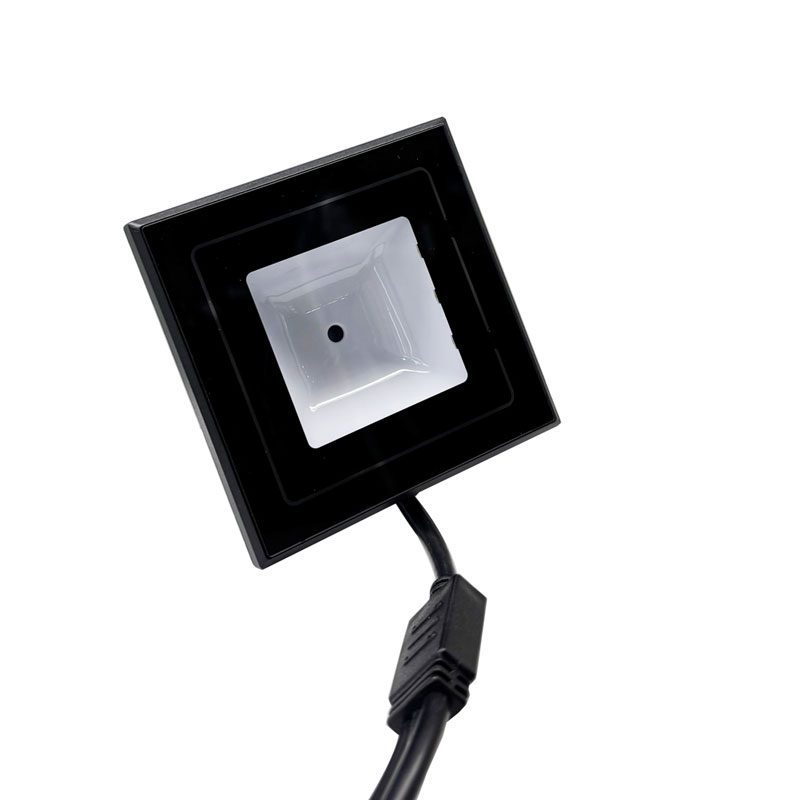

RD005-E embedded scan engine is an integrated 1D & 2D barcode scanner optimized for self-service kiosks and smart access gates. This rugged scan module supports QR Code, Data Matrix, PDF417 and other mainstream barcodes, compatible with Mifare series & ISO/IEC 14443A NFC mobile cards. Featuring IP65 protection, high-performance decoding chip, fast accurate recognition and Ethernet wired data transmission, it enables seamless integration for access control, vending machines and transit ticketing terminals.
Access Control QR & NFC Scanner Parameters
|
Scan Performance |
|||
|
lmage Sensor |
640x480 CMOS |
||
|
Precision |
≥7mil |
||
|

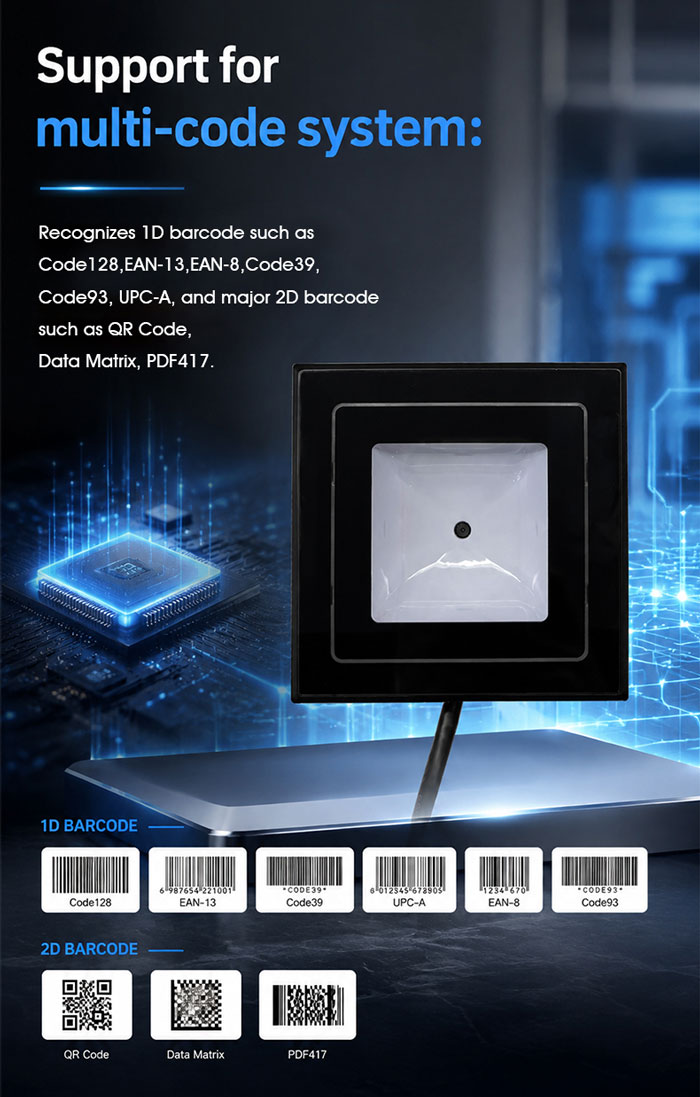

Symbologies |
2D
1D |
Code 11 ，Code 39 ，Code 93 ，Code 128 ，EAN-8 ，EAN-13 ，UPC-A ，UPC-E， Codebar，Standard 25 ，Matrix 25 ，Interleaved 25 ，MSI ，Plessey，GS1 ，Telepen QR Code ，Micro QR ，PDF417 ，Micro PDF 417 ，Data Matrix(ECC 200)， Grid Matrix，Aztec |
|
|
Depth of Field |
10mm~100mm |
||
|
Print Contrast |
≥30% |
||
|
Barcode Roll Sensitivity |
360° |
||
|
Barcode Pitch Sensitivity |
±60° |
||
|
Barcode Skew Sensitivity |
±40° |
||
|

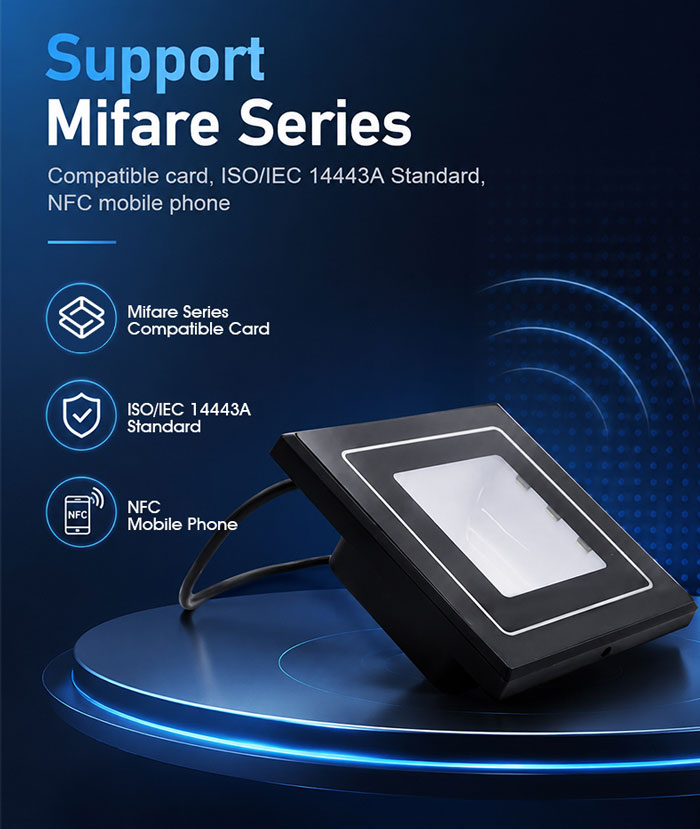

NFC |
Support Mifare series compatible card,ISO/IEC 14443A Standard,NFC mobile phone |
||
|
Illumination LED light source |
Visible Light-emitting Diode (white ) |
||
|
Interface |

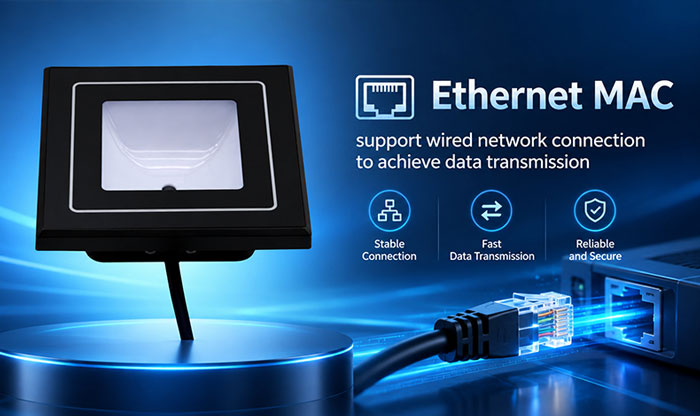

Ethernet MAC |
||
|
Triggering Mode |
Automatic / |
Mobile Induction |
|
|
Prompting Mode |
BEEPER |
||
|
Config Mode |
Config Barcode |
||
|
Network protocol |
|||
|
Electrical |
|
||
|
Input Voltage |
DC 5~24V |
||
|
Current |
Maximum Current |
250mA |
|
|
Operating Current |
200mA |
||
|
Power Consumption |
Maximum Power Consumption |
1.25W |
|
|
Operating Power |
1W |
||
|
Environment |
|
||
|
Ambient Light |
0 ~ 100,000 LUX |
||
|
Operating Temperature |
-20℃ ~ 60℃ (-4℉~131℉) |
||
|
Storage Temperature |
-40℃ ~ 70℃(-40℉~158℉) |
||
|
Humidity |
5% - 95%(No condensation) |
||
|
Physical |
|
||
|

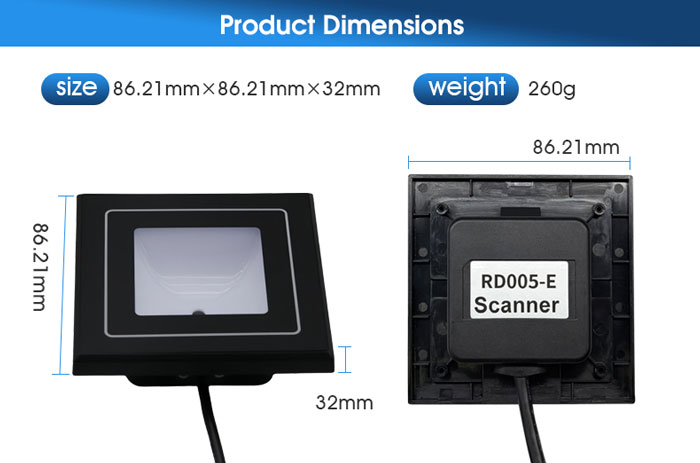

Dimensions |
86.21mm×86.21mm×32mm |
||
|
Mounting holes |
two sides |
||
|
Cable length |
20cm |
||
|
Weight |
260g |
||
|
Safety Grade |
EN55022 ，EN55024 |
||
|
Electrical Safety：EN60950-1 |
|||
|
IP65 |
|||
|
(The Product is subject to real object, no other notice with changed configuration) |
|||
