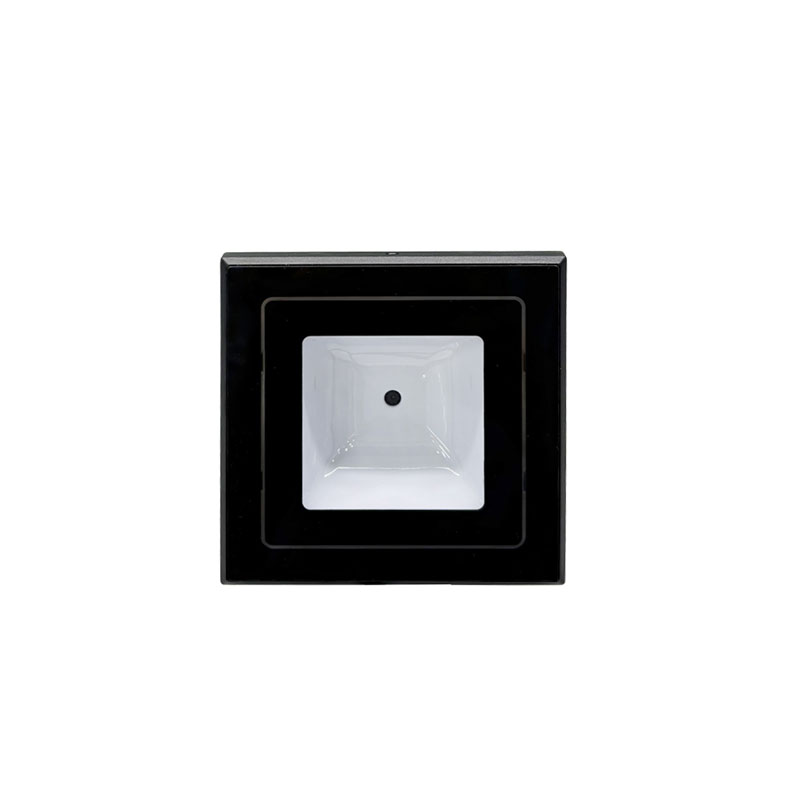

RD006 QR Code Access Control System with IC card Reader

Category:Access Control Solution

Product ID:RD006

Views:179320

Product Introduction:The product has Wiegand 26/ 34 output when the product is used as a 2d code reader, It’s a kind of access control using 2d barcodes scanning based on TCP / IP based network.




Inquiry Now

Details

The product has Wiegand 26/ 34 output when the product is used as a 2d code reader, which can make the traditional access control, lift control, yard products,own the 2d code access function immediately without changing the main controller.

And can access legally when it must comply with the rules of the 2d code so that the traditional access control, lift control and yard products have a real CPU system security level at once and reduce system costs greatly.


Proximity Card Reader System Features:

1. Single-door access control + 2d code scanner engine + the second generation IC card reader

2.Wiegand 26/ 34 output

3.2-channel relay output

4.Voice amplifier and speakers

5. Off Line to Open Door

6.Network IP parameters, lock delay, Wiegand 26/34

7.Data memory and the ferroelectric memory

8. Multi Card Reader

9.RJ45 10 / 100M TCP / IP transmission,WIFI transmission or mobile phone Bluetooth transmission,Supports TCP/IP remote IAP upgrade.

10.Built-in dual hardware anti-crash watchdog

11.Docking DEMO Language: JAVA, C#, C++, etc

Parameters of RFID QR Access Contro System

QR Code Access Control Devices Detailed

2D Code Engine Component Parameters
Image Sensor 752X480
Light Source White LED
Symbologies 2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code
1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc.
Reading Distance 10-55mm
Scan Angle 360° Full Angle
Input and Output Parameters
Power Input 9-18VDC
Working Current < 600mA
Can read like ISO14443Aor ISO14443B card serial number Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare S50, Mifare S70 IC card), SRIX4K, etc.
Barcode or 2D code input Wiegand 26/ 34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules
Communication Interface RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth
Communication Protocol Support TCP / UDP / HTTP
Voice output comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice
Device input 12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input
Equipment output 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener, light, water valve, etc.
Wiegand output Wiegand 26/34 output
Dimensions
Installation size 152mm * 85mm * 35mm (L*W*H), Compatible with standard 86 box
