Category：Access Control Solution
Product ID： RD005
Views：4018
Product Introduction：In stock
Details

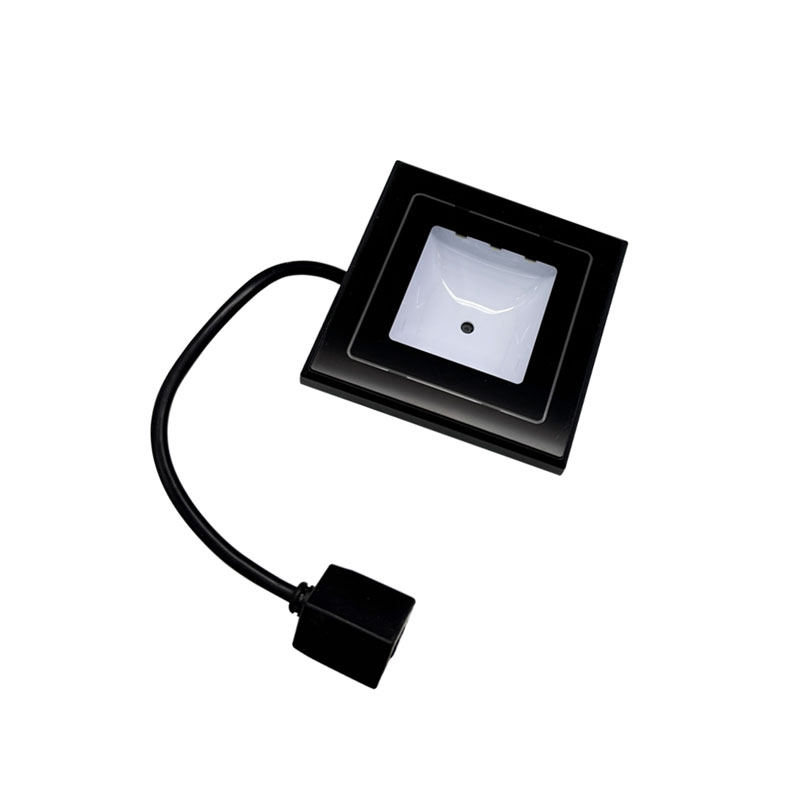

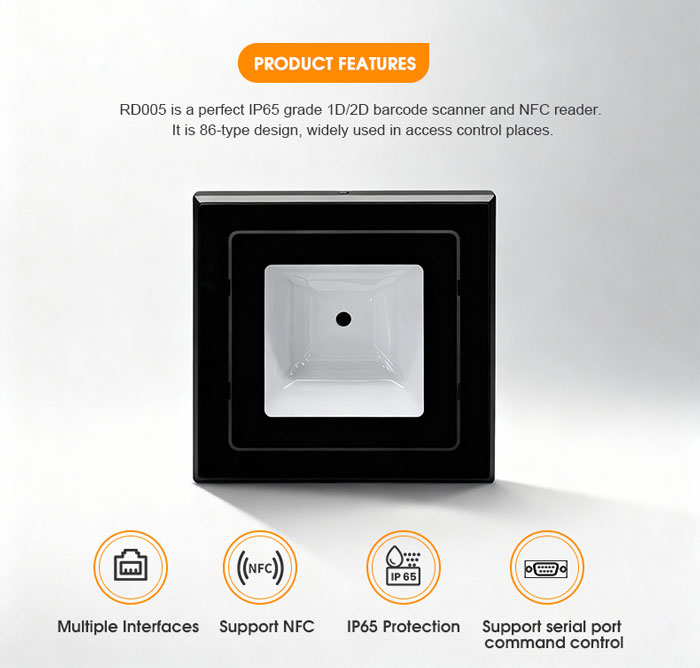

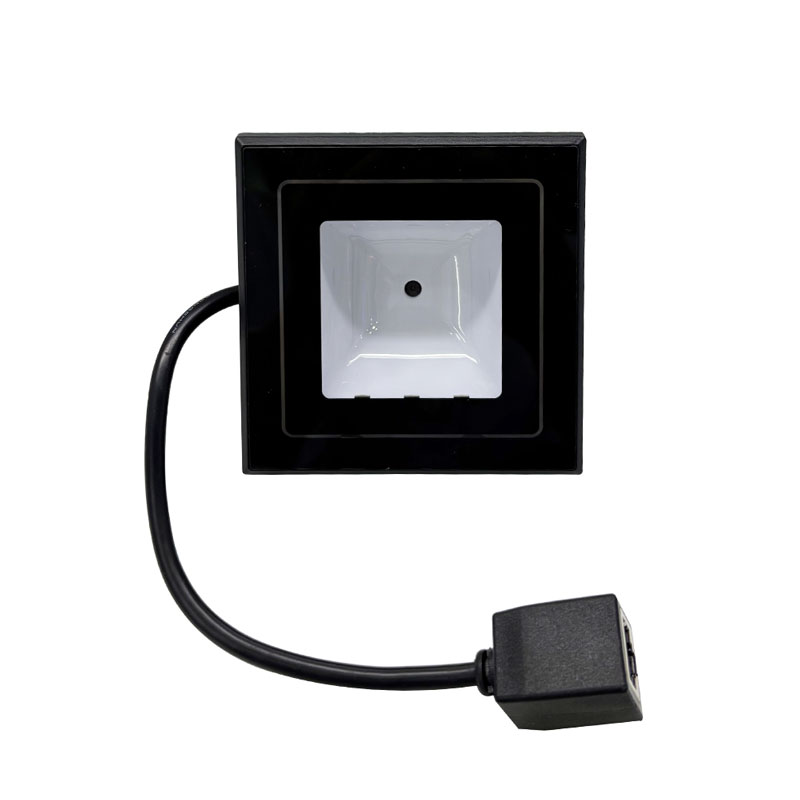

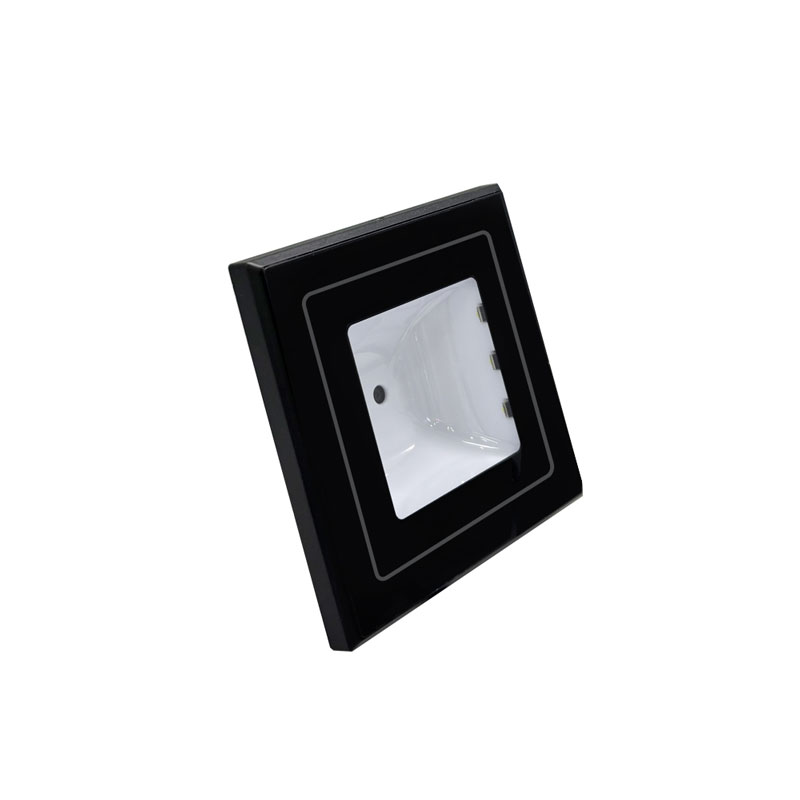

The RD005 is a robust, industrial-grade 1D/2D barcode scanner and NFC reader built for demanding environments. With its IP65 waterproof and dustproof rating, this scanner ensures a long service life and reliable performance in access control, public transportation, and outdoor kiosks. Its versatile 86-type panel design allows for easy embedding into various equipment, making it a perfect embedded barcode scanner for fixed installations.
NFC Reader Key Features:

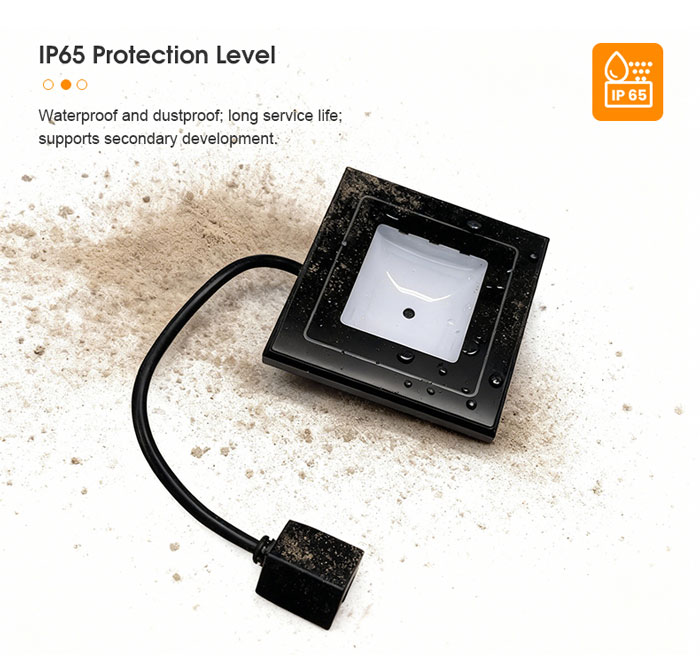

* Industrial IP65 Scanner: Waterproof and dustproof for maximum durability.

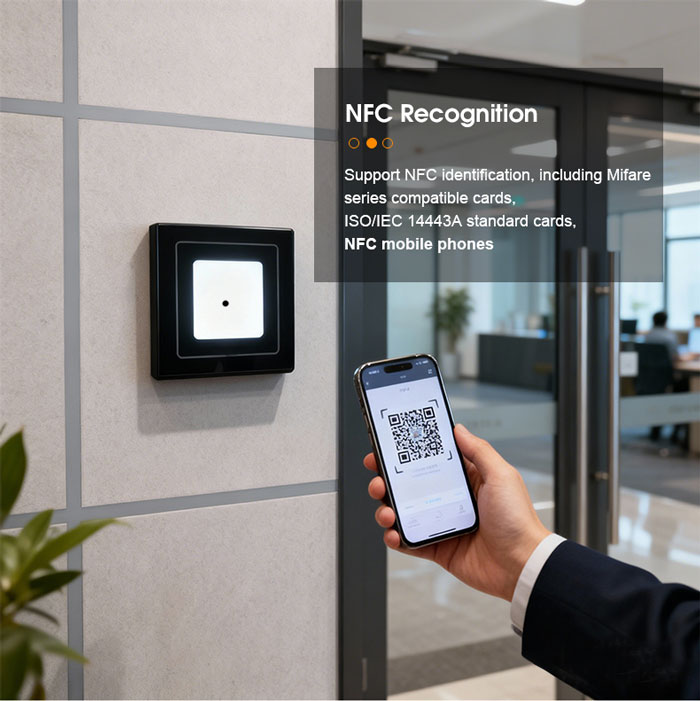

* Dual-Functionality: Reads all 1D & 2D barcodes and supports NFC card recognition.

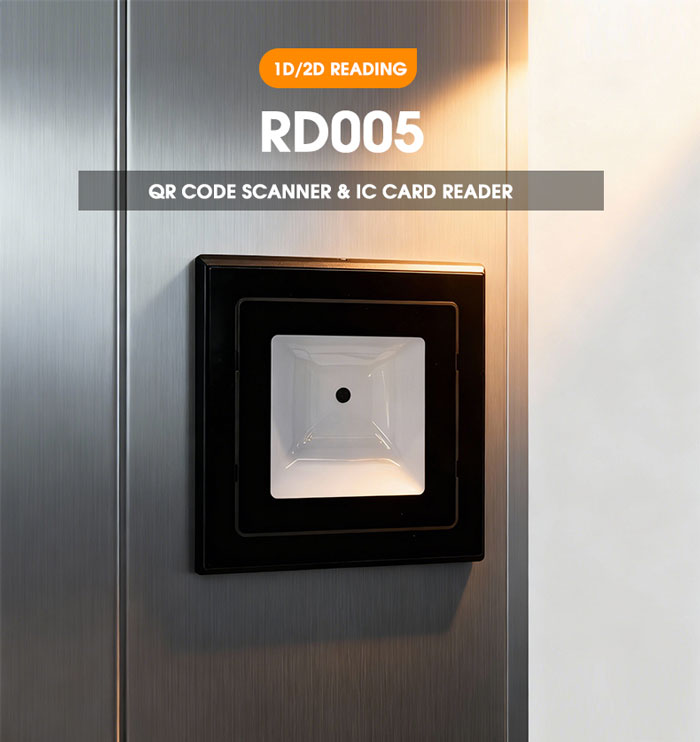

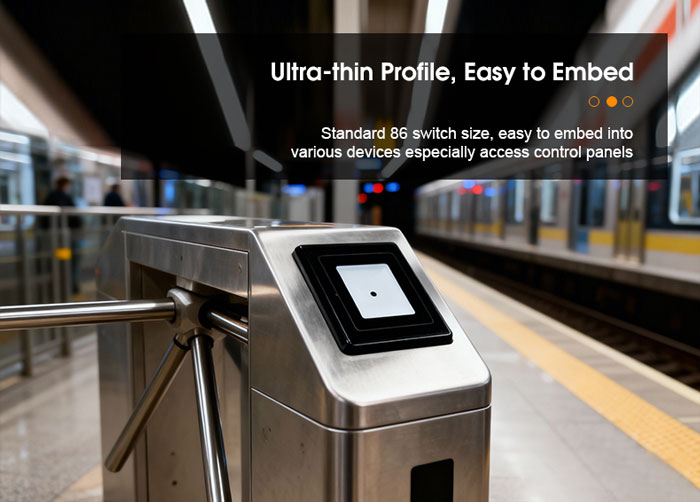

* Embedded Design: 86-type form factor for seamless integration into walls, turnstiles, and control boxes.

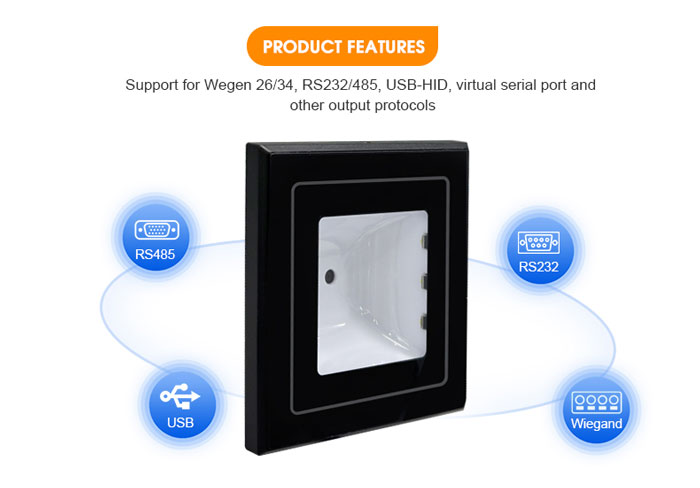

* Multiple Interfaces: Supports Weigand 26/34, RS232/485, USB-HID, and virtual serial port.

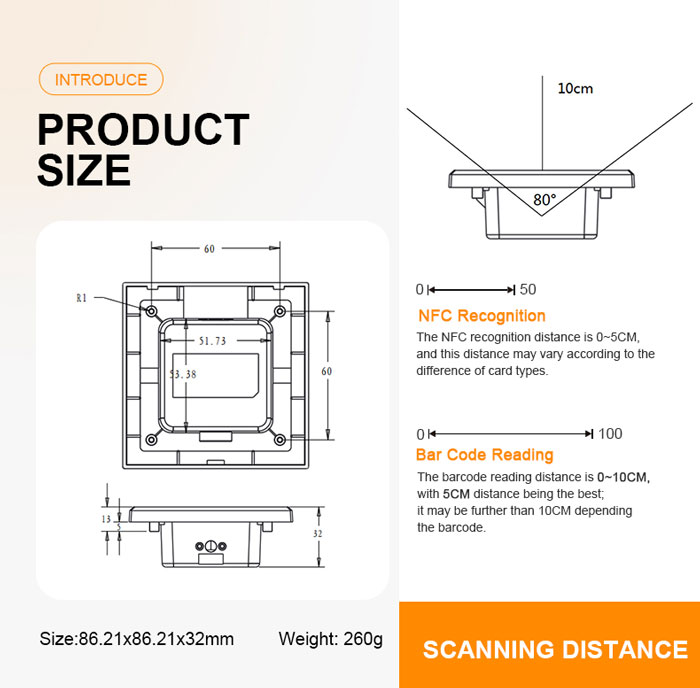

* Long Reading Distance: Barcodes from 0-10cm; NFC recognition from 0-5cm.
Parameters of Bus Card Readers
|
Identifying Parameters |
|||
|
Reading Mode |
CMOS |
||
|
Resolution Ratio |
640x480 |
||
|
Interface Type |
USB / Wiegand /Option: TTL /RS232 / RS485 |
||
|
Code Reading System |
2D |
QR Code,Micro QR,PDF417,Micro PDF 417,Data Matrix(ECC 200)，Grid Matrix ，Aztec |
|
|
1D |
Code11 ，Code39 ，Code93 ，Code 128，EAN-13，EAN-8， UPC-A， UPC-E ，Codebar ，Standard 2of 5， Matrix 2 of 5，Interleaved 2 of 5，MSI ，GS1，Plessey，Telepen |
||
|
Literacy and Lliteracy Rates |
≥ 7mil |
||
|
Know the Depth of Field |
10mm~100mm |
||
|
Print Contrast |
≥ 30% |
||
|
Barcode Rotation Sensitivity |
360° @ 0° Pitch and 0 ° Skew |
||
|
Barcode Tilt Sensitivity |
60° @ 0° Roll and 0 ° Pitch |
||
|
Barcode Deflection |
40° @ 0° Roll and 0 °Skew |
||
|
Sensitivity |
|||
|
Ambient Light |
0 ~ 100,000 LUX |
||
|
NFC |
|||
|
Frequency |
13.56MHz |
||
|
Protocol Type |
ISO/IEC 14443 TypeA/B |
||
|
ISO/IEC 18092 P2P passive initiator mode |
|||
|
Type of Card Read |
Support for mobile payment apps such as Apple Pay and Samsung Pay Supports Mifare series compatible cards,ISO/IEC 14443 A/B standard card NFC mobile phone, second generation ID card |
||
|
Read Card Distance |
0~5cm |
||
|
Electrical Character |
|||
|
Read Card Distance |
0~5cm |
||
|
Electrical Character |
|||
|
Maximum Power Dissipation |
1.25W |
||
|
Voltage |
5~24V |
||
|
Current |
Maximum current |
250 mA |
|
|
Working current |
200 mA |
||
|
Weight |
260 g |
||
|
Work Environment |
|||
|
Working Temperature |
-20℃~ +60℃ |
||
|
Storage Temperature |
-40℃~ +80℃ |
||
|
Humidity at Work |
5% -95% (no condensation) |
||
|
Water proof and Dust Proof Rating |
IP65 |
||
