Category：Passport Reader Machine
Product ID：RK5100
Views：1349
Product Introduction：In stock
Details

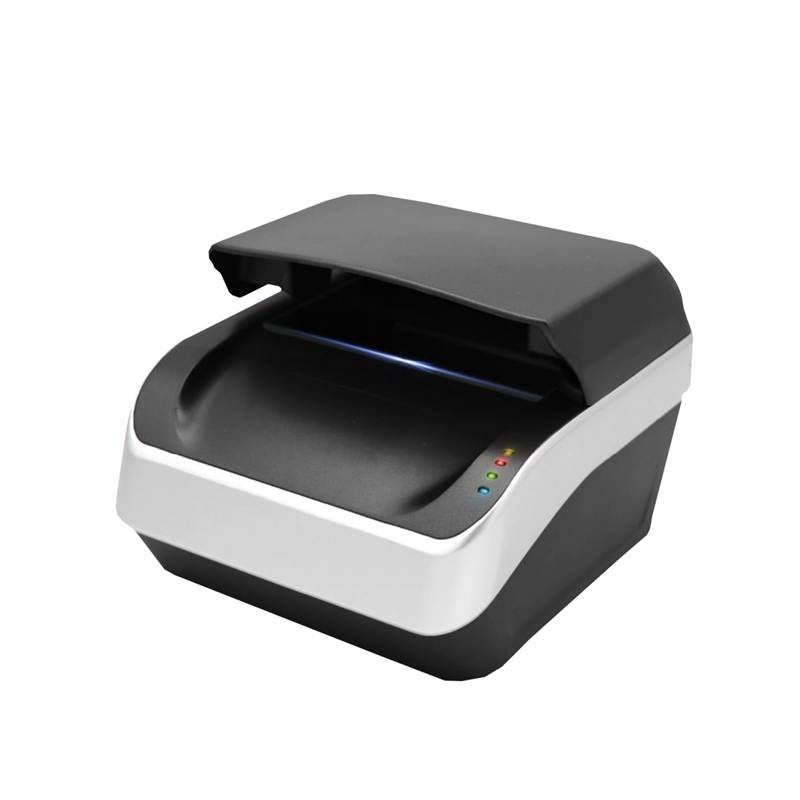

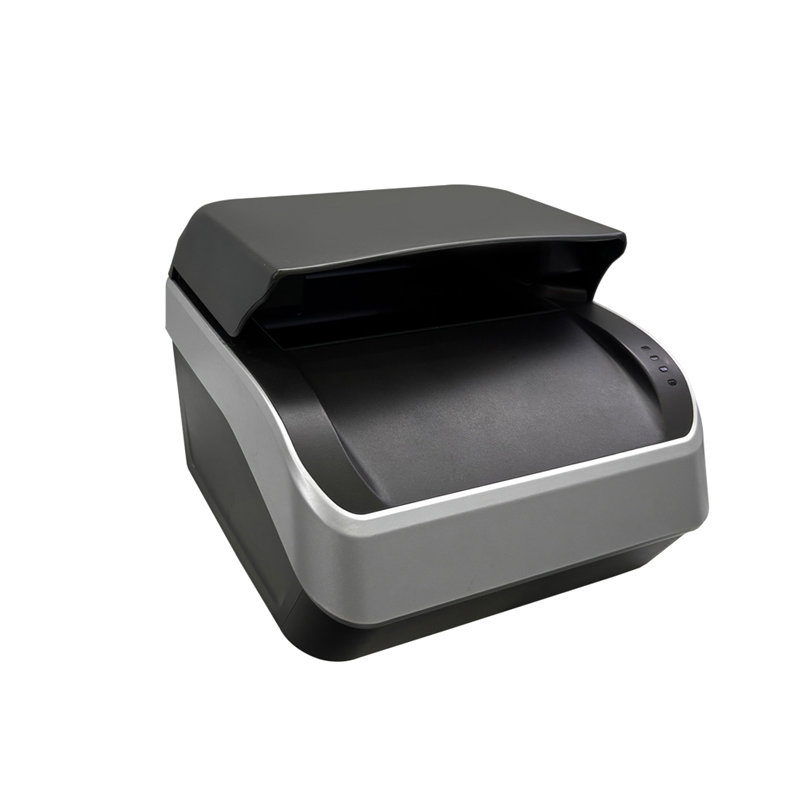

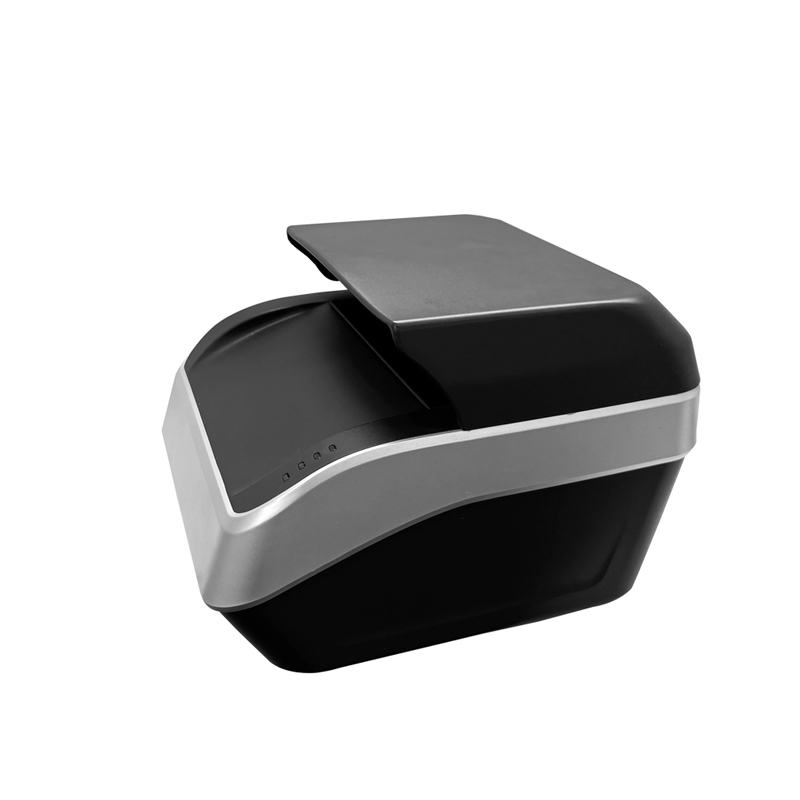

The RK5100 Passport Reader is a high-performance document scanning solution designed for fast and accurate data extraction from ICAO-compliant passports, ID cards, visas, and driver licenses. Equipped with RFID chip reading (ISO/IEC 14443 Type A/B) and OCR SDK support, it enables seamless identity verification for border control, hotel check-ins, and secure financial services. The device captures images in visible, IR (850nm), and UV (365nm) light, ensuring full document authenticity checks including UV dull paper and IR B900 ink verification.
Key Features:
- Reads ICAO 9303 documents (Passport, Visa, ID-1, ID-2)
- RFID support with BAC, EAC, and active/passive authentication
- High-resolution 500 DPI imaging with 5MP CMOS sensor
- Multi-spectral illumination: Visible, IR, and UV
- Ideal for border control, airport security, and identity management systems
Parameters
|
Supported Documents |
Machine Readable Zone |
ICAO 9303 standard compliant documents: |
|
ID-1 (Identity Card) |
||
|
ID-2 (Visa) |
||
|
ID-3 (Passport) |
||
|
Visual Inspection Zone |
Customization based on clients’ requirements |
|
|
RFID |
Read contactless ICs according to ISO/IEC 14443-S (Type A/B) |
|
|
Support e-passport Basic Access Control (BAC) & Extended Access Control (EAC) Support active/passive authentication |
||
|
Barcode |
1D: Code 128, Code 39, Interleaved 2 of 5 |
|
|
2D: PDF 417, QR Code, Data Matrix, Aztec Code |
||
|
Image |
Resolution |
500 DPI |
|
Illumination |
Visible, IR (850nm) and UV (365nm) |
|
|
Color Depth |
24 bits/pixels |
|
|
Sensor |
CMOS, 5.0 Megapixels (2592*1944) JPG, BMP |
|
|
Image Format |
PNG |
|
|
Field of View |
127mm*88mm |
|
|
Software |
Supported Operation System |
Windows 7,8,10, Vista, XP (32/64 bit WHQL certified) Windows Server 2003 & 2008 (32/64 bit) Linux Ubuntu, CentOS, RedHat Android |
|
Development kit |
Complete OCR SDK including DLLs,OCXs, WebSocket, Samples and Demo program |
|
|
Programming Languages |
C#, C/C++, Java, Delphi, Visual Basic 6.0, VB.NET |
|
|
Security Check |
UV Dull Paper Check; MRZ Comparison; Portrait Comparison; IR B900 Ink check. |
|
|
Hardware |
Dimension |

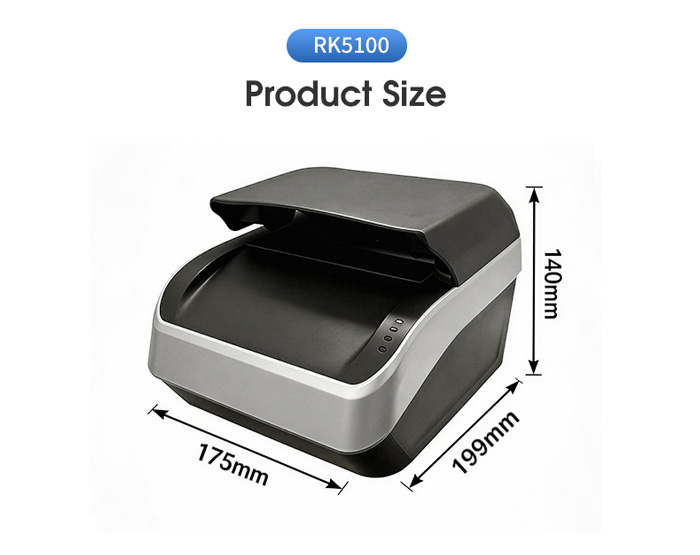

175*199*140mm(width*depth*height) |
|
Weight |
1.75kg (Net) Weight 2.00kg (Gross) |
|
|
Interface |
USB 2.0 |
|
|
Status LEDs |
Power, Ready, Error and Warning |
|
|
Buzzer |
Build-in buzzer |
|
|
Power |
Input: AC 100~240V, 50-60Hz, 0.8A |
|
|
Output: |
DC 12V, 2A |
|
|
Operating humidity |
20%-95%(non-condensing) |
|
|
Operating temperature |
-10℃ to 50℃ operating |
|
|
-20℃ to 50℃ storage |
||
|
Warranty |
1 year warranty, extensible |
