Category：Passport Reader Machine
Product ID：RK25
Views：16740
Product Introduction：
Details

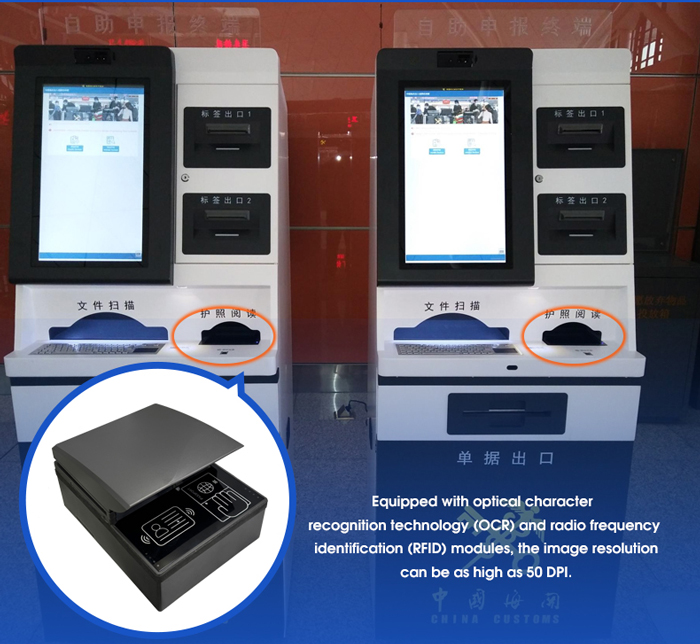

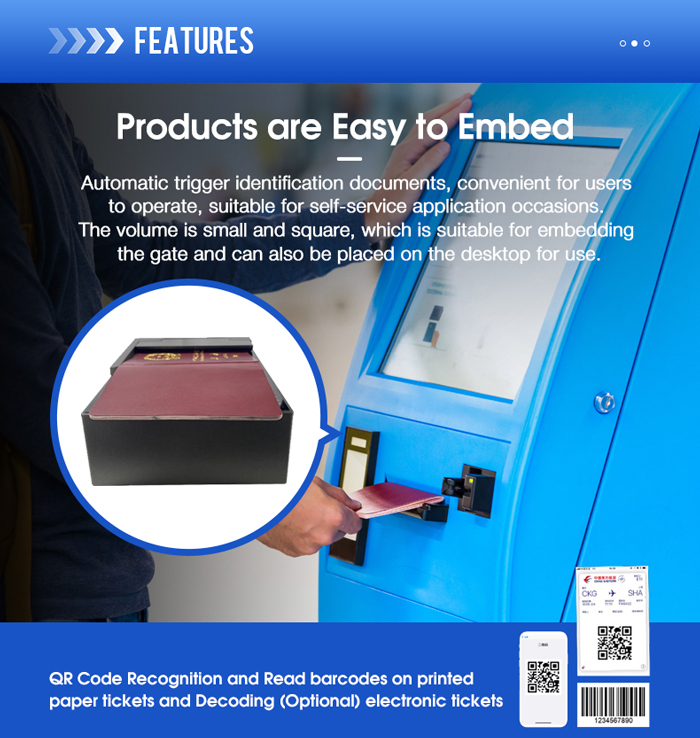

The RK25 Kiosk Passport Reader is a high-performance, ICAO 9303-compliant document scanner designed for seamless integration into self-service kiosks and border control systems. With support for MRZ (Machine Readable Zone) extraction, RFID (ISO 14443 Type A/B), and 2D barcode reading (PDF417, QR Code, Data Matrix), this all-in-one identity document reader ensures fast and accurate data capture. Ideal for e-passport authentication, visa processing, and ID verification, it features a 500 DPI CMOS sensor and supports both visible and IR illumination. Whether used in airport kiosks, hotel check-ins, or government agencies, the RK25 delivers reliable performance in compact form.
Parameters of Passport Reader Machine
|
Supported Documents |
Machine Readable Zone |
ICAO 9303 standard compliant documents: |
|
ID-1 (Identity Card) |
||
|
Machine Readable Zone ID-2 (Passport, Visa) |
||
|
ID-3 (Passport) |
||
|
Visual Inspection Zone |
Customization based on clients’ requirements |
|
|
RFID |
Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B) |
|
|
Support e-passport Basic Access Control (BAC) & Extended Access Control (EAC) |
||
|
Support active/passive authentication |
||
|
Barcode |
1D: Code 128, Code 39, Interleaved 2 of 5 Barcode |
|
|
2D: PDF 417, QR Code, Data Matrix, Aztec Code |
||
|
QR Code Recognition and Decoding (Optional) |
Read barcodes on printed paper tickets and electronic tickets |
|
|
Image |
Resolution |
500 DPI |
|

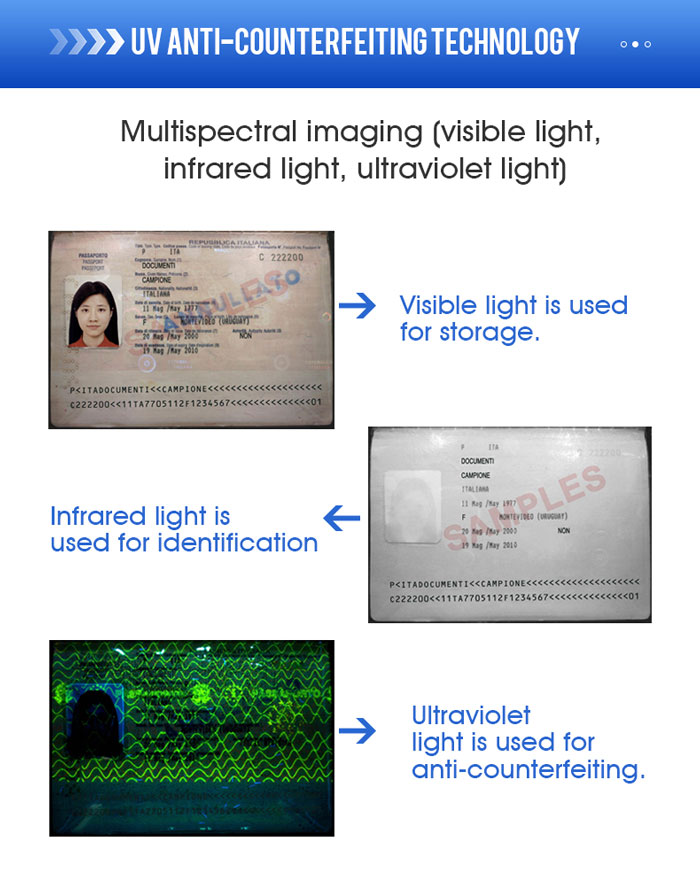

Illumination |
Visible, IR (850nm) |
|
|
Color Depth |
24 bits/pixels |
|
|
Sensor |
CMOS, 500 Megapixels (2592*1944) |
|
|
Image Format |
JPG, BMP, PNG |
|
|
Field of View |
127mm*88mm |
|
|
Software |
Supported Operation System |
Windows 7,8,10,Vista,XP (32/64 bit WHQL certified) |
|
Windows Server 2003 & 2008 (32/64 bit) Linux Ubuntu, CentOS, RedHat |
||
|
Android |
||
|
Development kit |
Complete OCR SDK including DLLs,OCXs, WebSocket, Samples and Demo program |
|
|
Programming Languages |
C#, C/C++, Java, Delphi, Visual Basic 6.0, VB.NET |
|
|
Hardware |

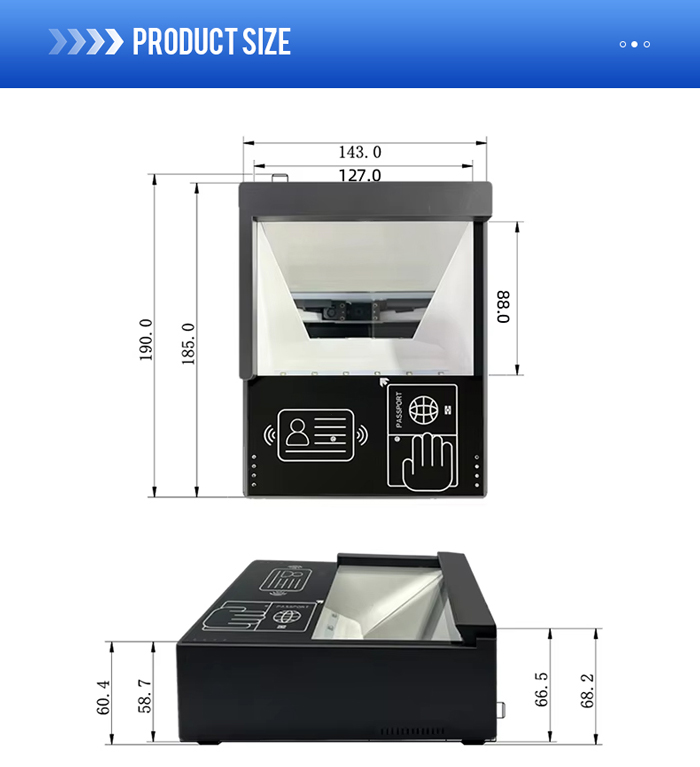

Dimension (W*D*H) |

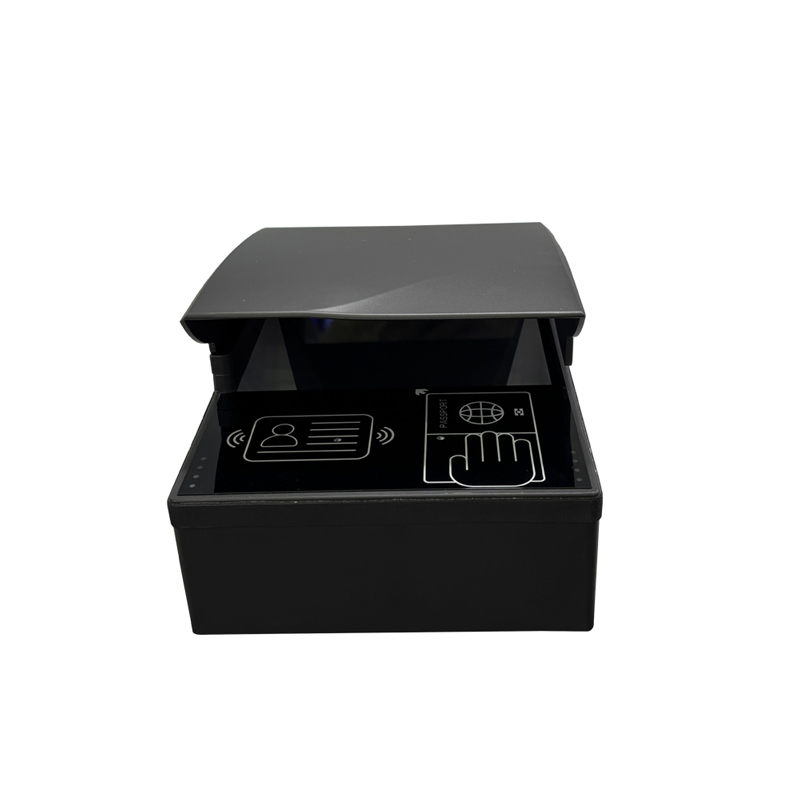

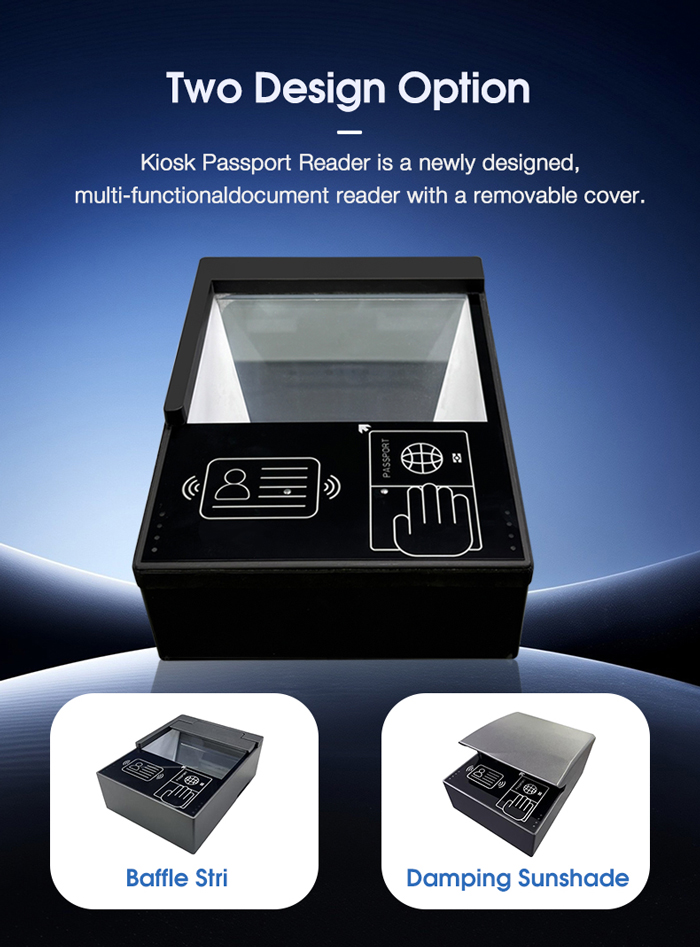

190* 143* 68.3mm (without Cover) 190* 143* 101 mm (with Cover) |
|
Interface |
USB 2.0 |
|
|
Status LEDs |
Power, Ready, Error and Warning |
|
|
Buzzer |
Build-in buzzer |
|
|
Power |
Input: AC 100~240V, 50-60Hz, 0.8A |
|
|
Output: DC 12V, 2A |
||
|
Operating humidity |
20%-95%(non-condensing) |
|
|
Operating temperature |
-10℃ to 50℃ operating |
|
|
-20℃ to 50℃ storage |
||
|
Warranty |
1 year warranty, extensible |
