LV2097 2D Small USB Barcode Scanner Module for Pos

Category:Barcode Scan Engine

Product ID:LV2097

Views:5504

Product Introduction:Small TTL232 raspberry PI OEM 2D QR code OEM scanner engine embedded barcode scanner module.




Inquiry Now

Details

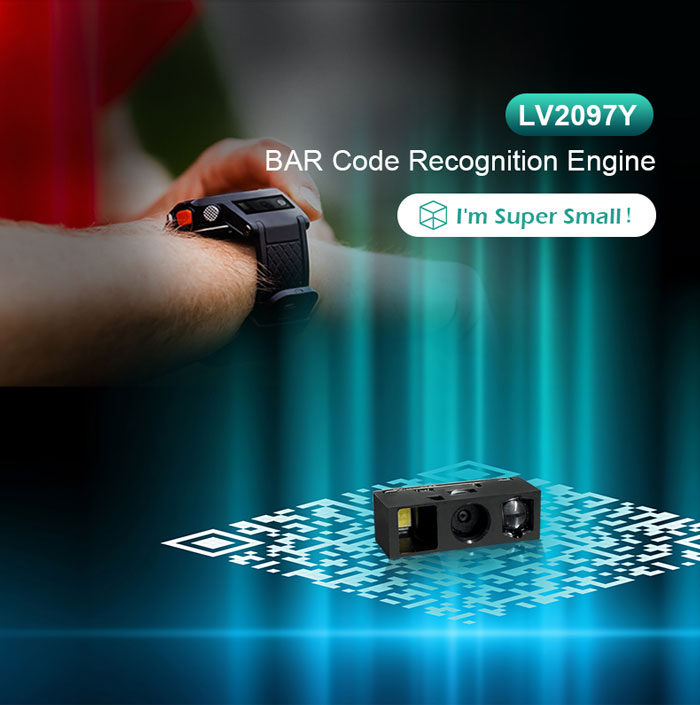

This module is only 21.5 x 9 x 7mm, which is our smallest scan engine so far. It saves space and power in embedded applications.The power consumption of the whole machine is only 452mW. LV2097's reading depth range, field of view angle range, and working temperature range are relatively large compared to competing products. Even for difficult to read one-dimensional and two-dimensional bar codes, its accuracy and speed are the best. Can be integrated into smooth and slim equipment or spaces.


Features of OEM QR Code Scanner
* Integrated design of image collector and decoder board, high integration, can adapt to various product integration applications
* Provide USB and TTL232 interfaces to meet more interface requirements
* Can adapt to low-brightness and large-data screen barcodes of various types of films
* Adopting the scheme of warm white LED, not dazzling.


Ring Barcode Reader Parameters

LV2097 Datasheet En

Performance

Image Sensor

640 480 CMOS

Illumination

Aiming



White LED

Red LED (625nm)

Symbologies

2D

PDF417, QR Code, Micro QR, Data Matrix.



ID

Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM 128, Plessey, MSI-Plessey

Resolution*



>3mil

Typical Depth of Field*



EAN-13 (13mil): 60mm-350mm

Code 39 (5mil): 40mm-150mm

PDF417 (6.7mil): 50mm-125mm

Data Matrix (1 Omil): 45mm-120mm

QR Code (15mil): 30mm-170mm

Min. Symbol Contrast*



25%

Scan Angle



Roll: 360。,Pitch: ±60°, Skew: ±60°

Field of View



Horizontal 42°, Vertical 31.5°

Mechanical/

Interface



TTL-232, USB

Electrical

Operating Voltage



3.3VDC±5%

Current@3.3VDC

Operating

138mA (typical)



Idle

11.8mA

Dimensions



21.5(W) X9.O(D) x7.0(H)mm (max)

Weight



1.2g

Environmental

Operating Temperature



-20°C to 55°C

Storage Temperature



-40°C to 70°C

Humidity



5% to 95% (non-condensing)

Ambient Light



0~100,OOOlux (natural light)

Certifications





FCC Parti 5 Class B,CE EMC Class B, RoHS2.0, IEC62471

Accessories

EVK-N1

Software development board for the NLS-N1, equipped with a trigger button, beeper and RS-232 & USBType-C interfaces.



Cable

USB Used to connect the EVK-N1 to a host device.

RS-232 Used to connect the EVK-N1 to a host device.
