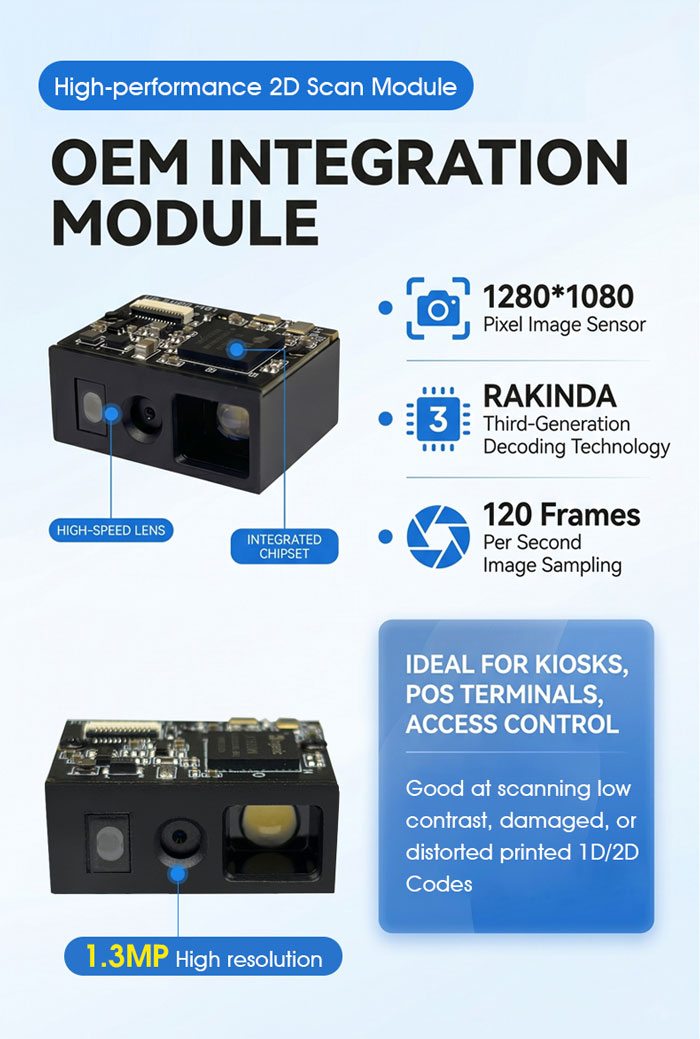

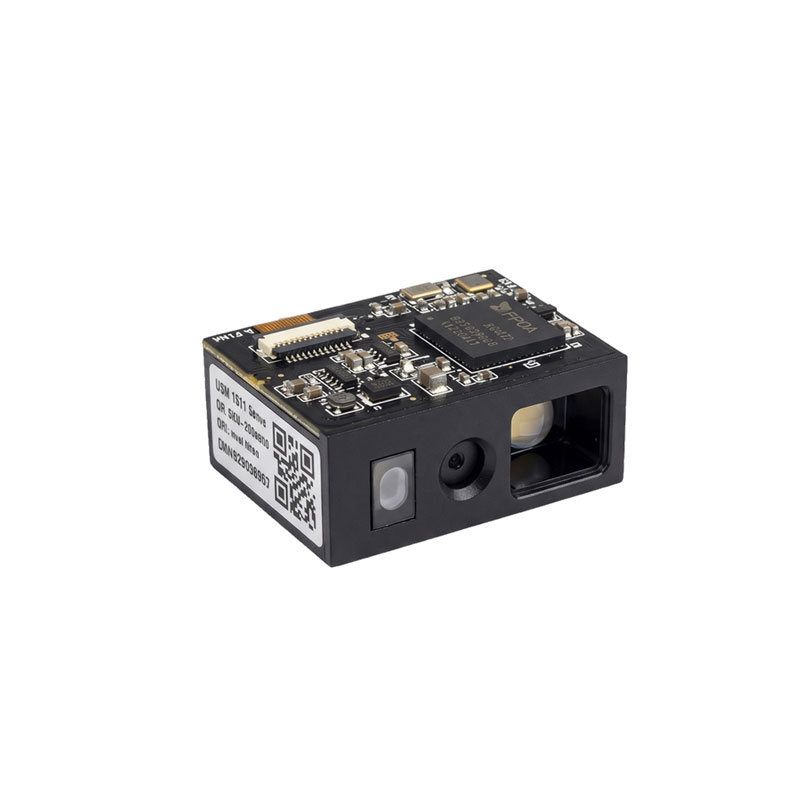

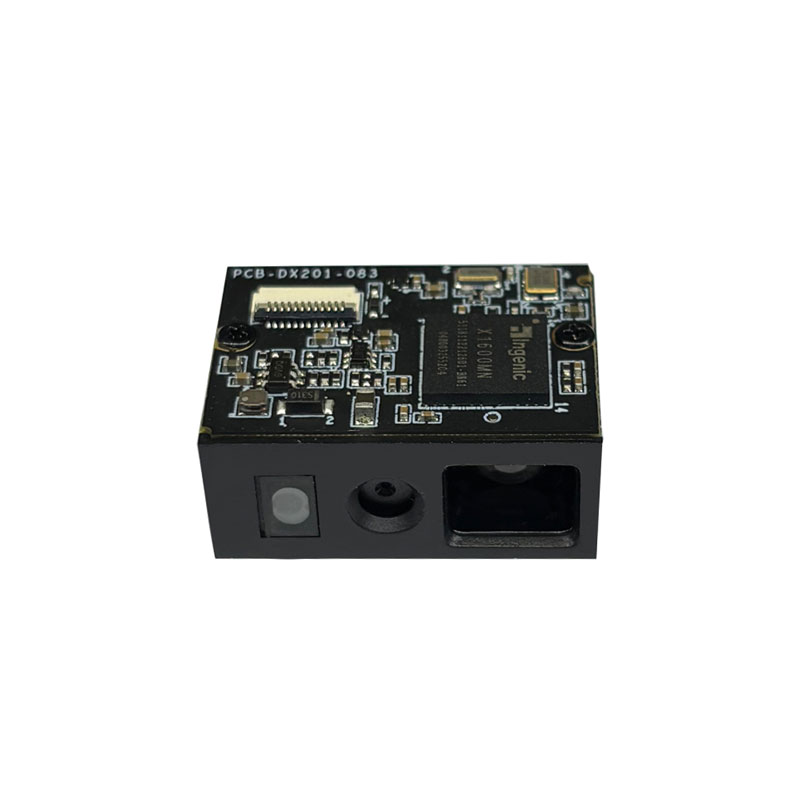

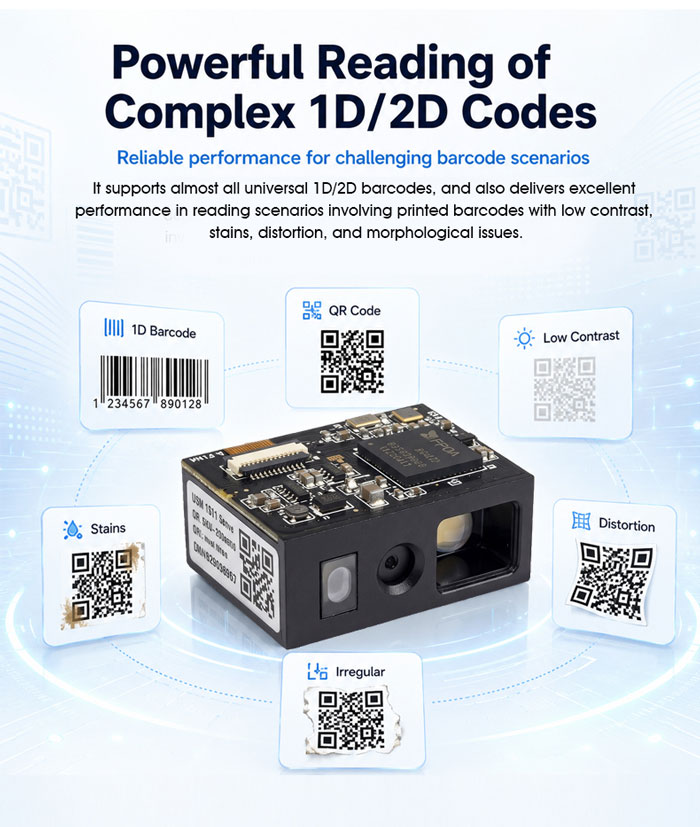

The RK35 is a 1.3MP high-performance 2D scanning engine designed for embedded integration. Built with RAKINDAB’s third-generation decoding algorithm and a 1280×1080 image sensor, it supports 120fps high-speed image sampling and reads almost all universal 1D and 2D barcodes. It performs excellently on low-contrast, stained, distorted and damaged codes, ensuring stable scanning in complex environments.

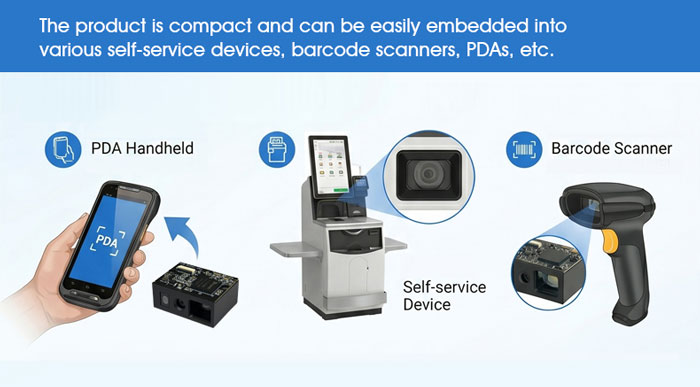

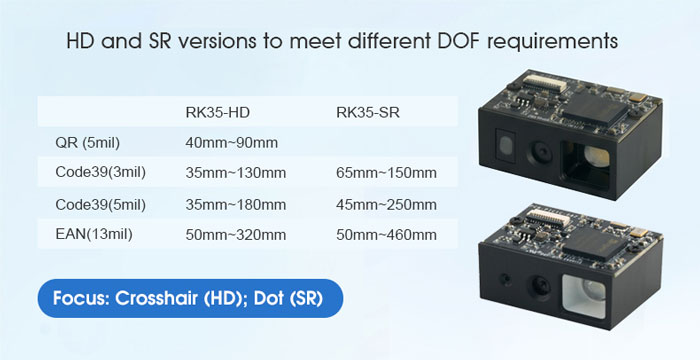

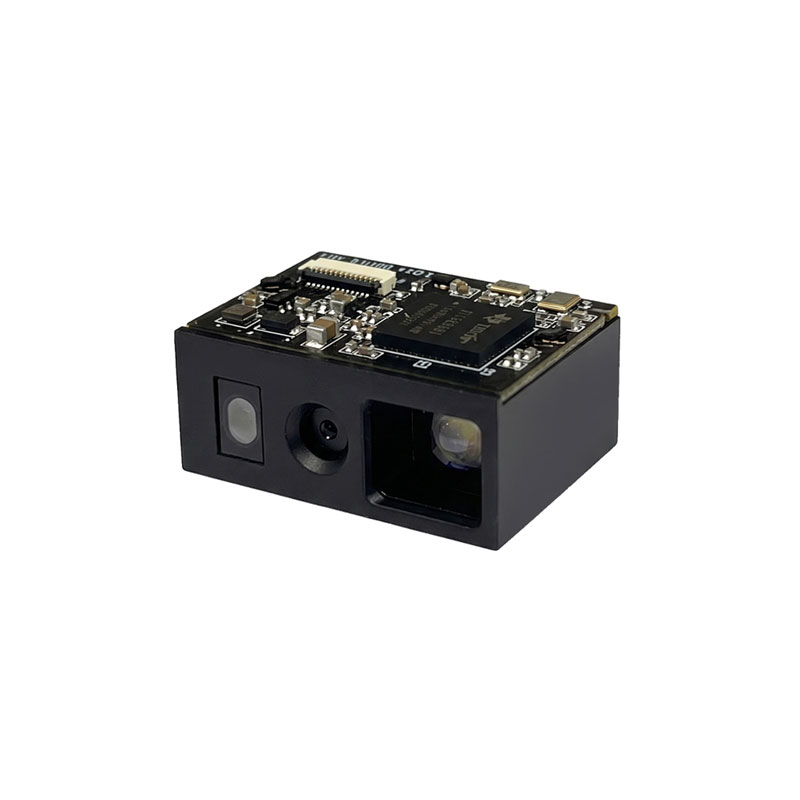

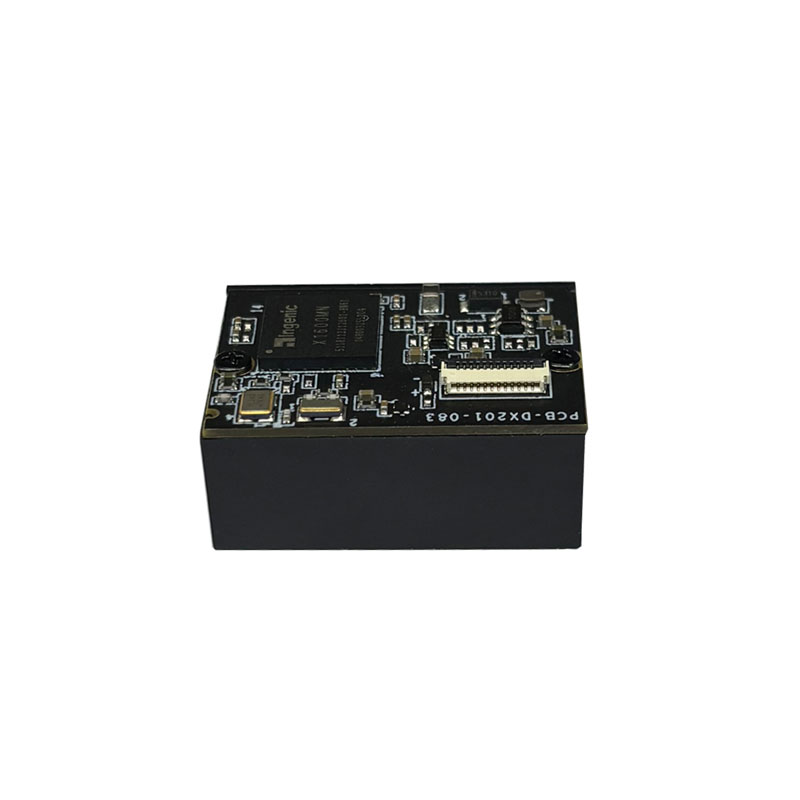

This ultra-compact embedded barcode scan module uses an all-in-one design that integrates the image sensor and decoder board, with dimensions of only 28.6×20.7×12.5mm and a weight of about 6g, making it easy to fit into various smart devices. It offers HD and SR versions to meet different depth of field (DOF) requirements, with cross-aiming or point-aiming options.

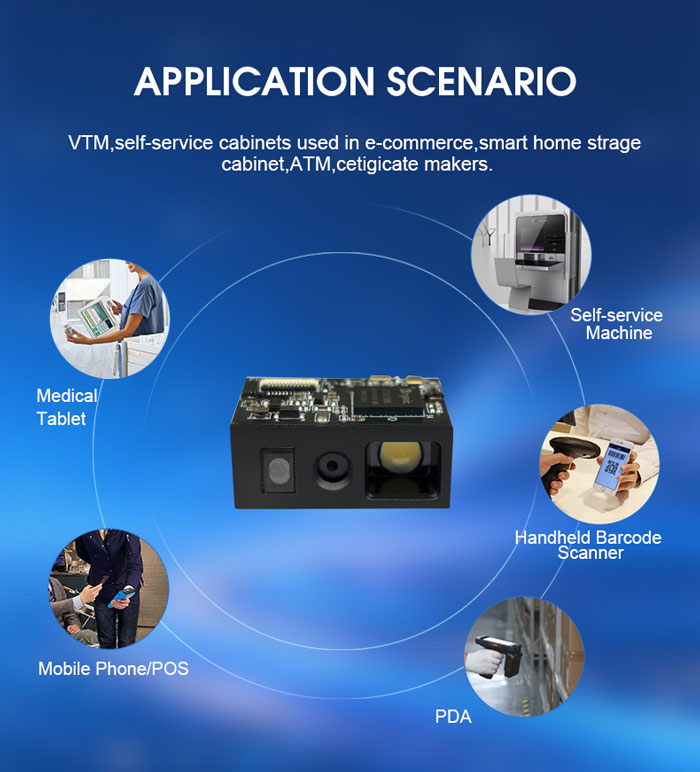

Equipped with USB, RS-232 and virtual COM port interfaces, the RK35 embedded scan engine supports wide voltage and temperature adaptation, strong anti-vibration capability and high ambient light resistance up to 100,000 Lux. It is widely used in self-service kiosks, ATMs, VTMs, smart storage cabinets, queuing machines and certificate-making equipment, providing reliable scanning solutions for retail, banking, e-commerce and smart home scenarios.
Parameters of embedded 2D scanning engine
|
lmage sensor |
1280 (H) * 1080 (V) |
||
|
llumination aiming |
White intense light |
||
|
Focusing |
Cross-Aiming (HD); Point-Aiming (SR) |
||
|
Reading mode |
2D |
Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Hanxin Code |
|
|
1D |
UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar , Plessey , MSI , Interleaved 2 of 5 IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , GS1 DataBar 14 , GS1 DataBar Expanded , GS1 DataBar Limited , |
||
|
Reading accuracy |
1D : 3 mil ; 2D : 5 mil（ HD） ; 2D : 7 mil（ SR） |
||
|
Typical reading |
|
HD focal length-06A |
SR focal length-06B |
|
depth of field |
QR (5mil) |
40mm-90mm |
|
|
|
Code39(3mil) |
35mm- 130mm |
65mm- 150mm |
|
|
Code39(5mil) |
35mm- 1;0mm |
45mm-250mm |
|
|
EAN(13mil) |
50mm- 320mm |
50mm-460mm |
|
Scan Angle* |
Pitch:±60°,Skew:±60°, Roll:360° |
||
|
Field of View |
Level: 43° (H); Vertical: 36° (V) |
||
|
Print contrast |
≥20%(UPC/EAN 100% , PCS 90%) |
||
|
Communication interface |
USB ， RS-232 ， Virtual COMPort |
||
|
Prompting mode |
Buzzer, LED indicator light |
||
|
External dimensions (mm) |

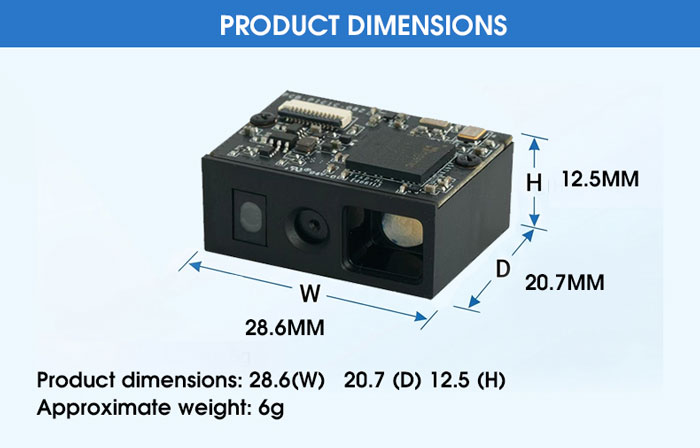

28.6(W) × 20.7 (D) × 12.5 (H) |
||
|
Weight |
Approximately 6 g |
||
|
working voltage |
VCC： DC 3. 3V±5% |
||
|
Working current |
260 mA ±5% (typical value), 380 mA ±5% (maximum value) @VCC 3.3V |
||
|
Standby current |
110 mA (maximum) @VCC 3.3 V |
||
|
Working temperature |
- 10~+50 |
||
|
Storage temperature |
-40~+70 |
||
|
Relative humidity |
5%~95% (no condensation) |
||
|
Ambient brightness |
0– 8,600 Lux (fluorescence); 0– 100,000 Lux (sunlight) |
||
|
Work vibration |
10– 150 Hz, 0.5 G, 3 axial directions, 1 min/Oct, 1 cycle per axial direction |
||
|
Durability vibration |
10– 150 Hz, 2G,3 axial directions, 1 min/oct, 20 cycles/axial direction |
||
|
Attestation |
Aiming (red 617 nm) |
||
|
Lighting (white light, 6,500K): IEC 62471 |
|||
