Category：Industrial Scanner
Product ID：LV3000P
Views：1017
Product Introduction：
Details

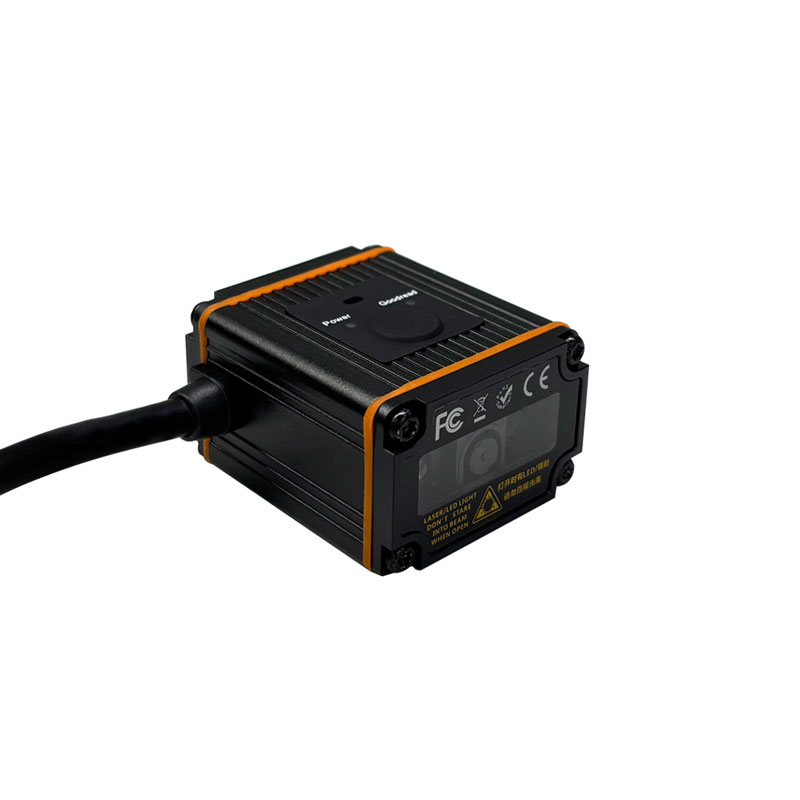

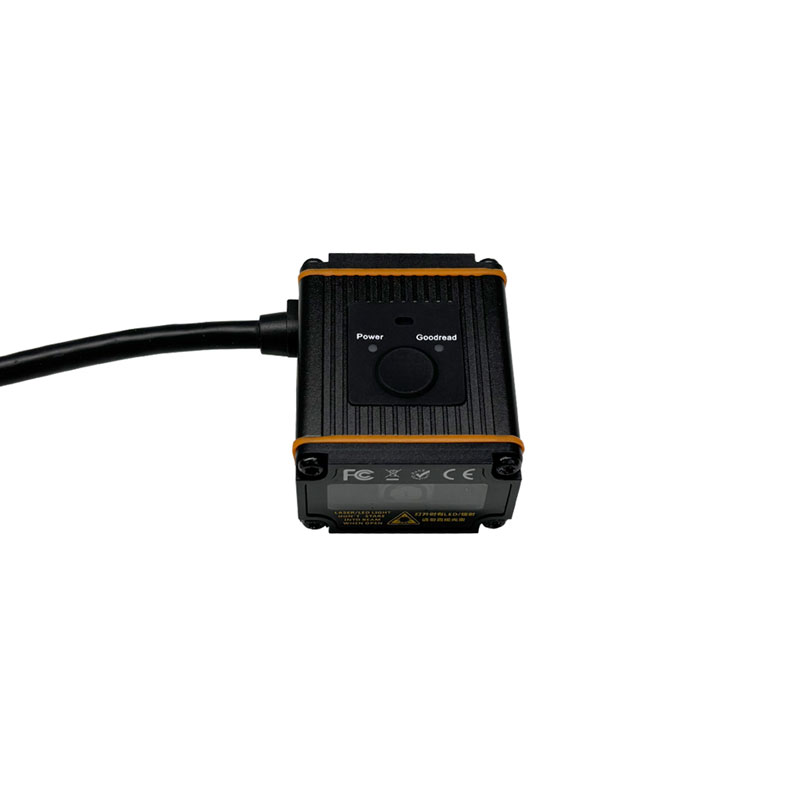

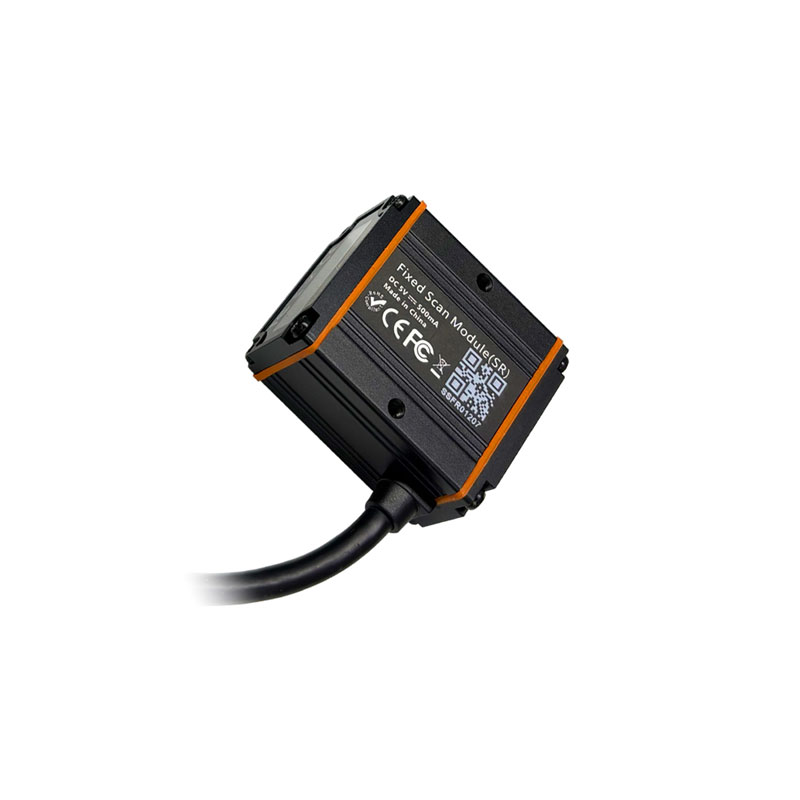

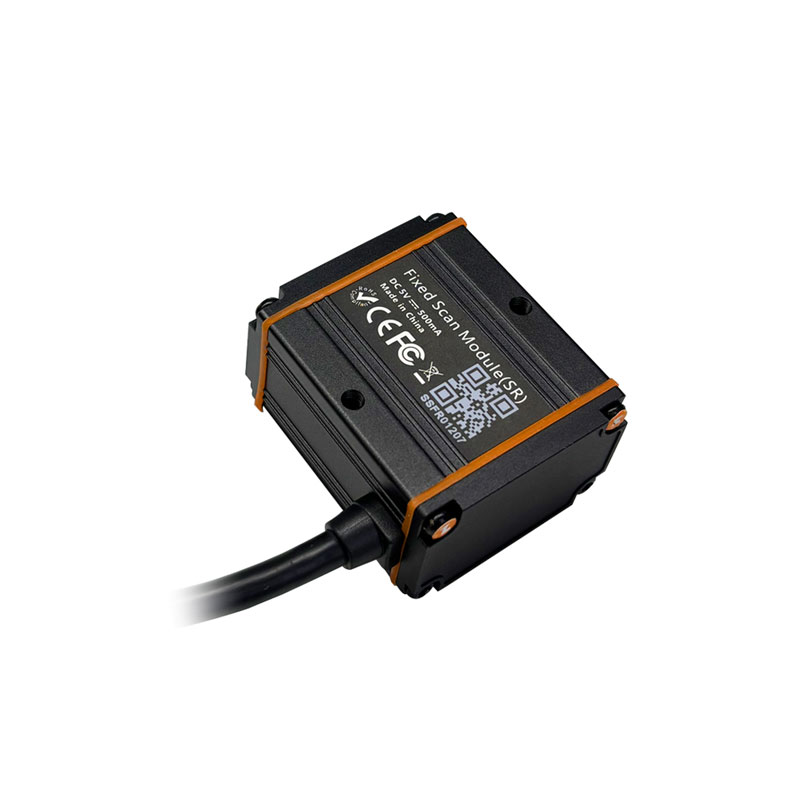

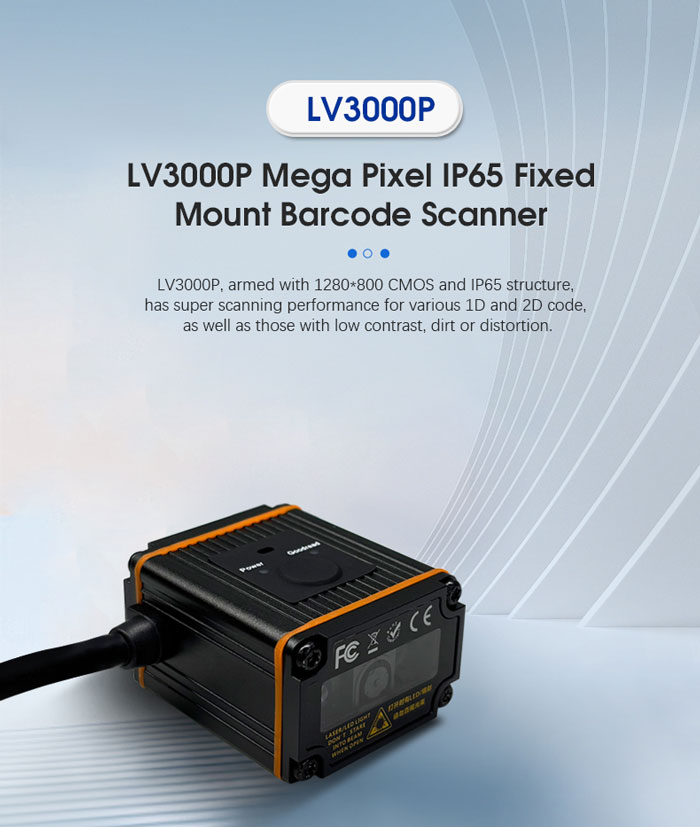

The RAKINDA LV3000P fixed-mount barcode scanner delivers exceptional decoding performance for demanding industrial environments. Engineered with third-generation RAKINDA decoding technology, it effortlessly reads 1D codes, 2D codes (including QR, Data Matrix, PDF417), damaged, low-contrast, or distorted barcodes. Featuring a compact design (36x43x24mm), wide 46°(H)×29°(V) field of view, and IP65 industrial protection, it excels in electronics manufacturing, automotive assembly, and metal processing.
Data Matrix Reader Key specs:
- High Accuracy: Reads 1D codes >4 mil, 2D codes >9 mil.
- Extended Depth of Field: 60–320mm (varies by symbology).

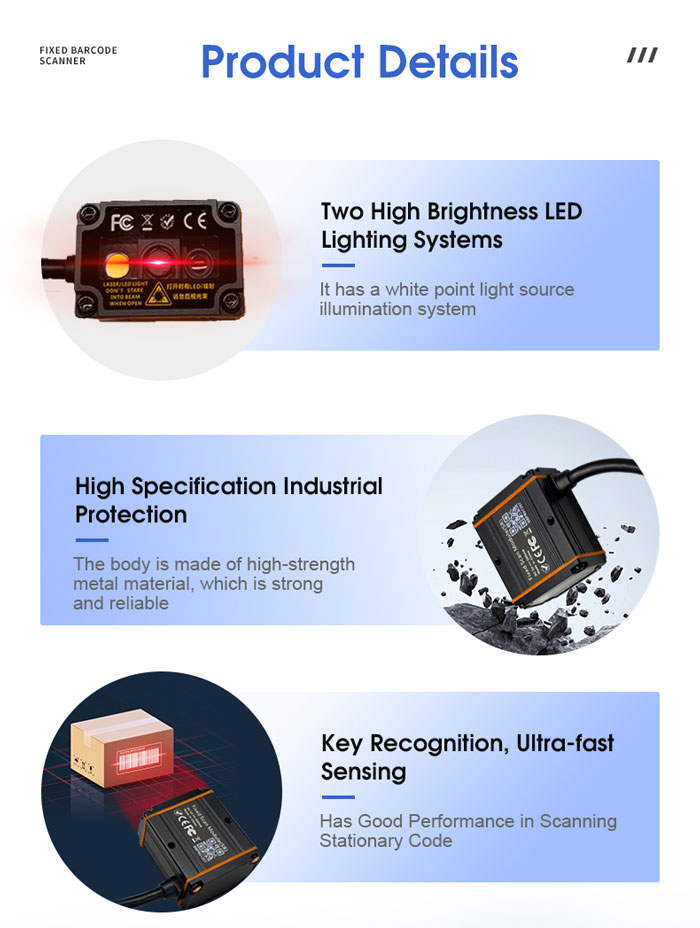

- Dual Lighting: Dual high-brightness LEDs for low-light environments.
- Robust Build: Metal housing, ±12kV ESD protection, 1.5m drop resistance.
- Multi-Interface Support: USB, RS-232, Virtual COM.
Certified FCC/CE/EMC Class B. Optimize your production line with this reliable fixed industrial scanner.
IP65 Barcode Scanner Parameters
Scan Performance
Resolution
1280*800
Field of view
Horizontal 46°(H)·Vertical 29°(V)
Symbologies
2D
1D
Data Matrix , QR Code , Micro QR ，PDF417, Micro PDF417 MaxiCode ，Aztec,UPCA , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 ,
Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5
Llighting
White light source
Reading mode
Key mode, serial command trigger mode
Reading accuracy
1D : ≥4 mil ; 2D : ≥9 mil
Typical reading depth of field
Code39(4mil) 60mm~200mm
Code39(5mil) 60mm~250mm
EAN 13(13mil) 50mm~320mm
QR Code (7mil) 60mm~100mm
Data Matrix(10mil) 60mm~200mm
Print contrast
≥20%
Mechanical and electrical parameters

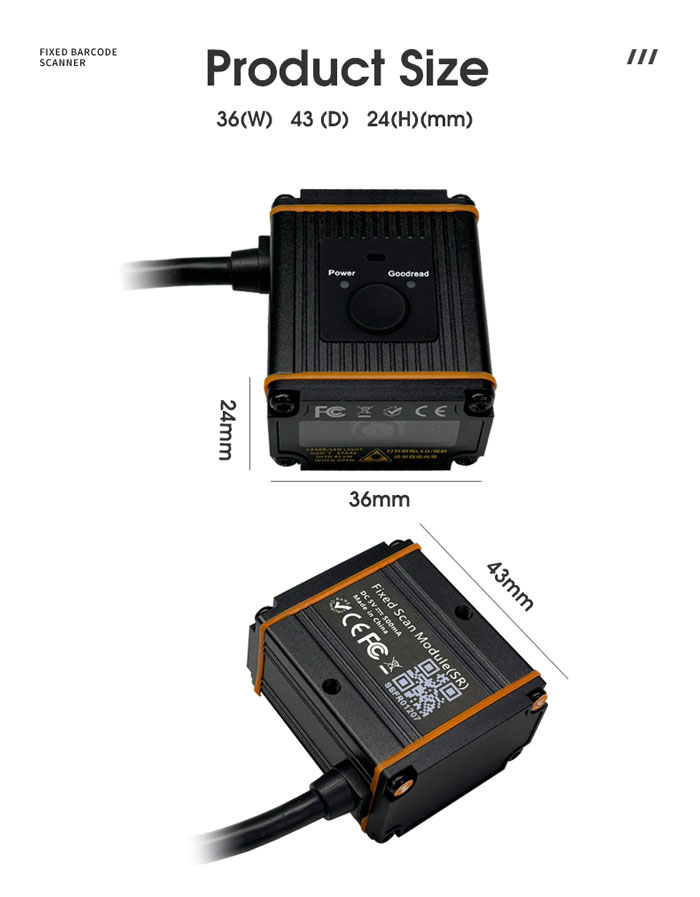

Outer dimensions
36(W) × 43 (D) × 24(H)(mm)
Weight

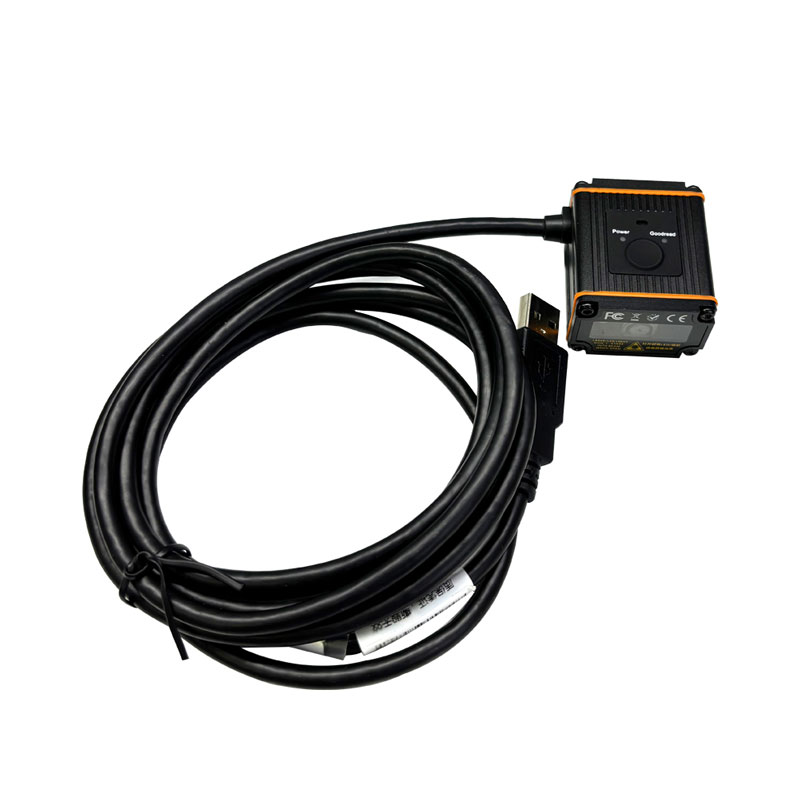

About 100g (including 2 meters of cable)

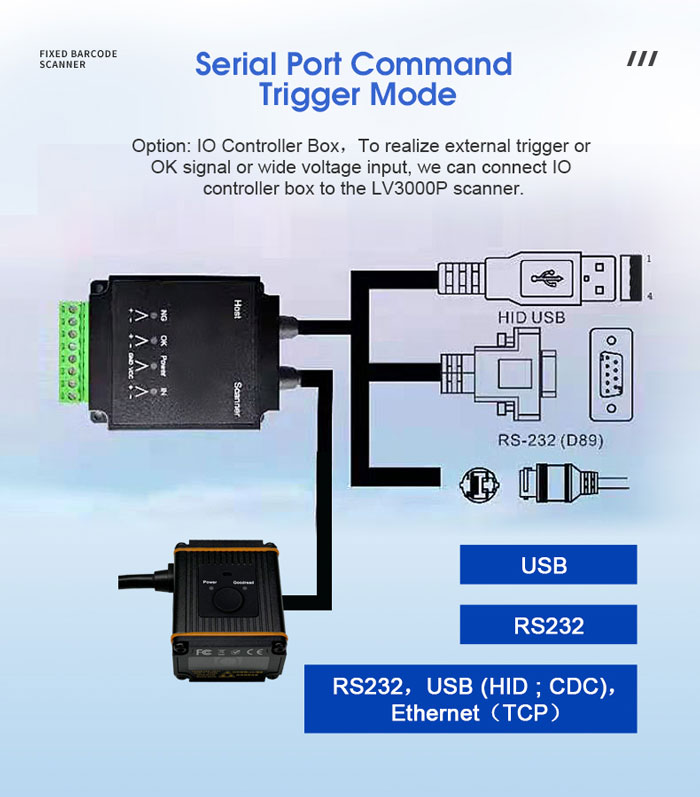

Communication interface
USB ，RS-232 ，Virtual COM Port
Prompting mode
Beep, LED indicator
Working voltage
DC 5V±5%
Working current
300 mA ±5% (typical), 500 mA ±5% (maximum)
Wait for the electromotive force
100 mA ±5%
Enviromental Parameter
Working temperature
-20℃~+50℃
Storage temperature
-40℃~+70℃
Relative humidity
5%~95% (no condensation)
Electrostatic protection
± 12kV (air discharge), ± 8kV (direct discharge)
Drop height
1.5 meters
Levels of protection
IP65
International Certification
Levels of protection
FCC Part15 Class B ，CE ，EMC Class B
