Category：Industrial Scanner
Product ID： R3
Views：3405
Product Introduction：In stock
Details
Built with Rakinda's proprietary decode algorithm, the R3 delivers robust decoding performance on printed labels, screen-displayed codes, and low-contrast markings. Available in five focal lengths — 6 mm, 8 mm, 12 mm, 16 mm, and 25 mm — the scanner accommodates a wide range of working distances and field-of-view requirements. At a 1000 mm working distance with the 6 mm lens model (R3-06W), the horizontal field of view reaches 1010 mm, while the 25 mm lens model (R3-25W) narrows to just 225 mm for high-density code reading on smaller components.

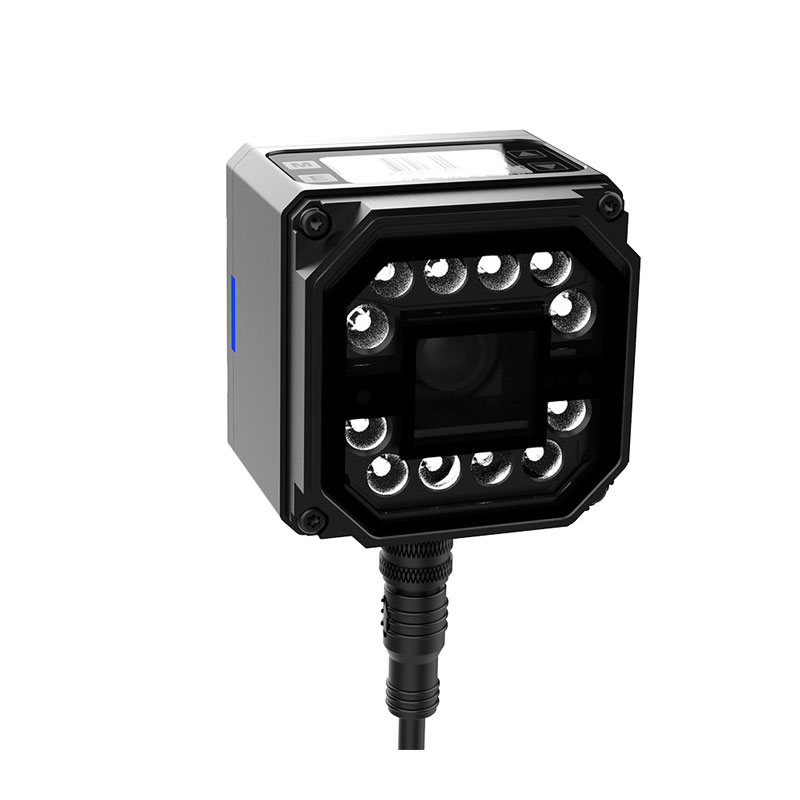

The device features 12 built-in LED illumination lamps and 2 aiming LED lamps for precise code targeting during installation and operation. Multiple I/O interfaces support flexible integration with PLCs and control systems. Status indicators on the device provide real-time feedback on device status and code reading results, simplifying commissioning and troubleshooting.
Key Features:
* 2.0 MP global shutter CMOS sensor — captures high-quality images of moving objects without rolling-shutter distortion; ideal for conveyor tracking and high-speed production lines
* 5 focal length options (6 mm to 25 mm) — flexible working distances from 100 mm to 2000 mm; 6 mm model delivers up to 1998 mm horizontal FOV at 2000 mm distance
* Built-in Rakinda decode algorithm — robust 1D/2D code reading even on damaged, low-contrast, or screen-displayed codes
* 12 LED illumination lamps + 2 aiming LED lamps — ensures consistent read performance in variable lighting conditions and simplifies installation alignment
* Multiple I/O interfaces — seamless integration with PLCs, conveyor systems, and automated control architectures
* Non-polarized mode with optional polarized filter — eliminates glare from reflective surfaces common in packaging and logistics environments

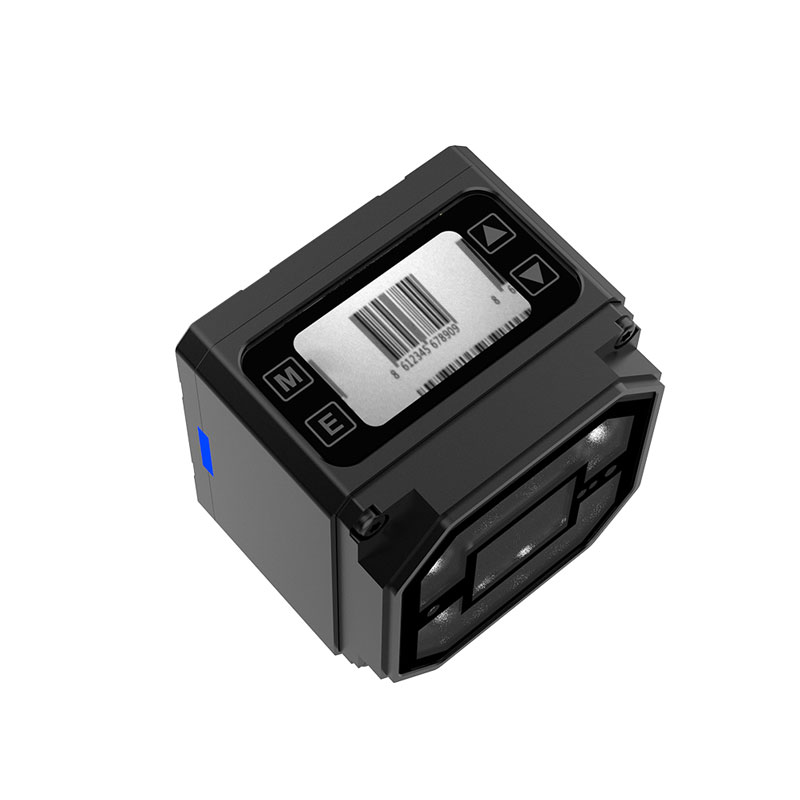

* On-device status indicators — real-time feedback on device status and code reading results for faster setup and maintenance
* Ideal For: Conveyor tracking, production line traceability, order picking, automated storage and retrieval systems, packaging lines, and high-speed sortation applications.
Parameters of IP-rated industrial scanner
|
Model |
R3-06W R3-08W R3-12W R3-16W R3-25W |
|
|
Focal length |
6mm 8mm 12mm 16mm 25mm |
|
|
Scan Field Angle |
52.5°(H)*39.5°(V) 46°(H)*34°(V) 26°(H)*19.5°(V) 20.5°(H)*15.4°(V) 12.5°(H)*9.5°(V) |
|
|
Decode Capabilities |
2D
1D |
QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417 UPC A, UPC E, EAN 8, EAN 13, Code 128, Code 39, Code 93, Code 32, Code11, Coda bar, Plessey, MSI, Interleaved 2 of 5, IATA2 of 5, Hong Kong 2 of 5, USPS Intelligrnt 2 of 5,Pharma code, RSS-14, RSS-14 Expanded, RSS-14 Limited, Composite Code-A, Composite Code-B,Composite Code-C |
|
Max. Frame Rate |
100 fps |
|
|
Sensortype |
CMOS,global shutter |
|
|
Pixel size |
3.45 um X 3.45 um |
|
|
Sensor size |
1/2.6" |
|
|
Resolution |
1600(H)*1200(V) |
|
|
Exposure time |
35 us to 1 sec |
|
|
Gain |
0dB to 15 dB |
|
|
Mono/color |
Mono |
|
|
Communication protocol |
Rakinda SDK, TCP Client, TCP Server, Serial, ProfiNET, Ethernet/IP, Mod Bus |
|
|
Electrical Features |
||
|
Data interface |
Fast Ethernet |
|
|
Power supply |
+12V~24 VDC |
|
|
Digitall/O |
17-pin M12 connector provides power and 1/0, including non-isolated input (Line ln 0/1/2) X 3,non-isolated output (Line Out 0/1/2) X 3, RS-232 input X 1, RS-232 output X 1.Device trigger via pressing button on top supported. |
|
|
Max.power consumption |
Approx. 20 W@24 VDC (light source enabled) |
|
|
Mechanical |
||
|
Lens mount |
M12-mount, Motorized adjustable focus supported. |
|
|
Lens cap |
Optional Polarized Cap |
|
|
Light source |
White light by default. Red/Blue light is optional. |
|
|
Indicator |
Power indicator(PWR), Result indicator(OK/NG) |
|
|
Dimension |

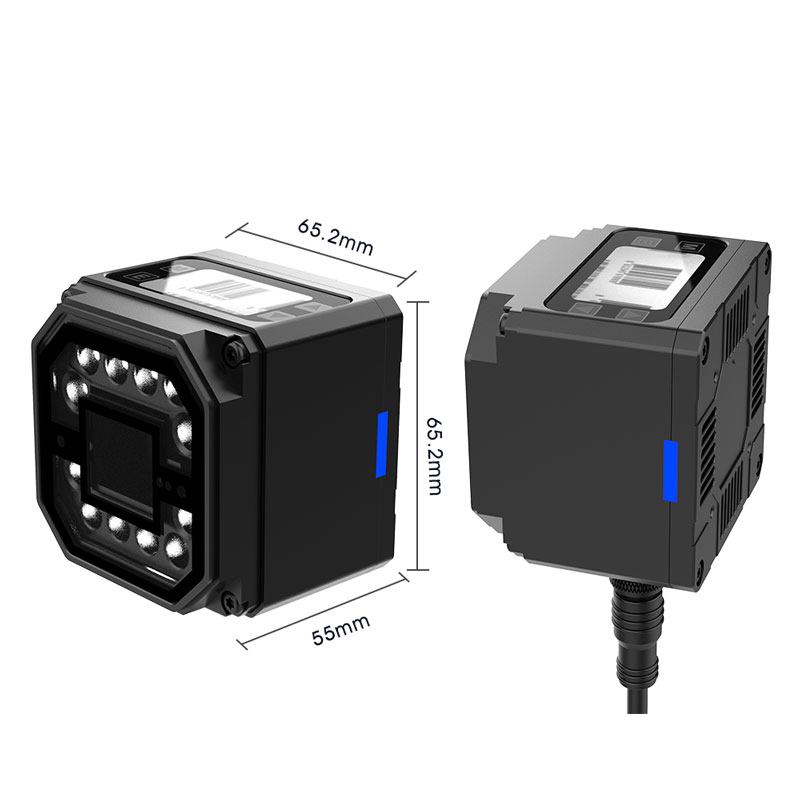

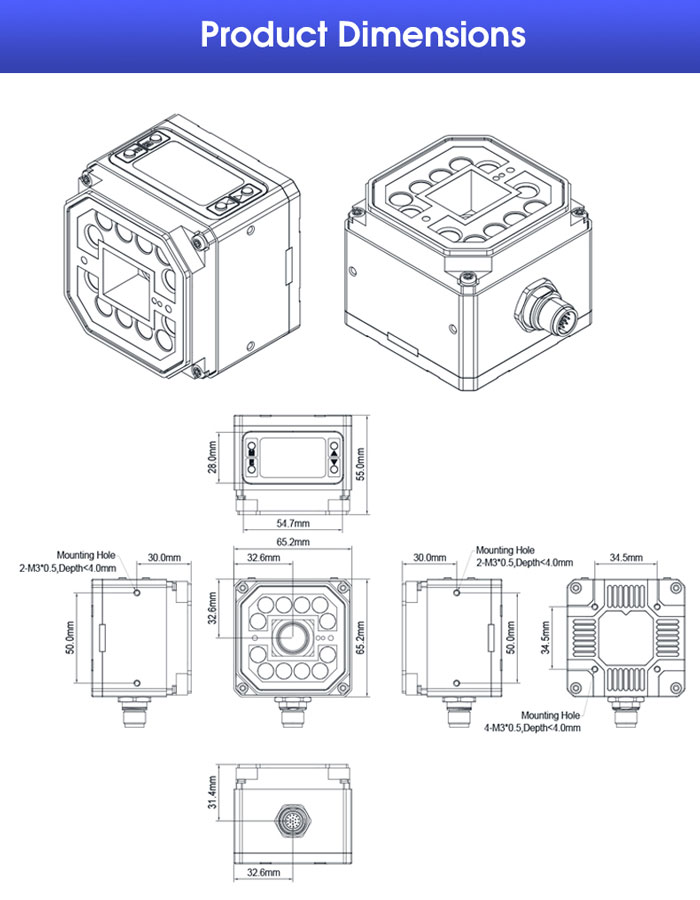

65.2 mm X 65.2 mm X 55 mm (2.6" X 2.6" X 2.2") |
|
|
Weight |
Approx. 300 g (0.66 lb.) |
|
|
Ingress protection |
IP65 (under proper installation of waterproof lens cap) |
|
|
Temperature |
Working temperature: 0°C to 50 °C (32°F to 122°F) Storage temperature: -30 °C to 70 °C (-22°Fto 158 °F) |
|
|
Humidity |
20% to 95% RH, non-condensing |
|
|
General |
||
|
Certification |
CE, FCC, RoHS |
|
