Category：Industrial Scanner

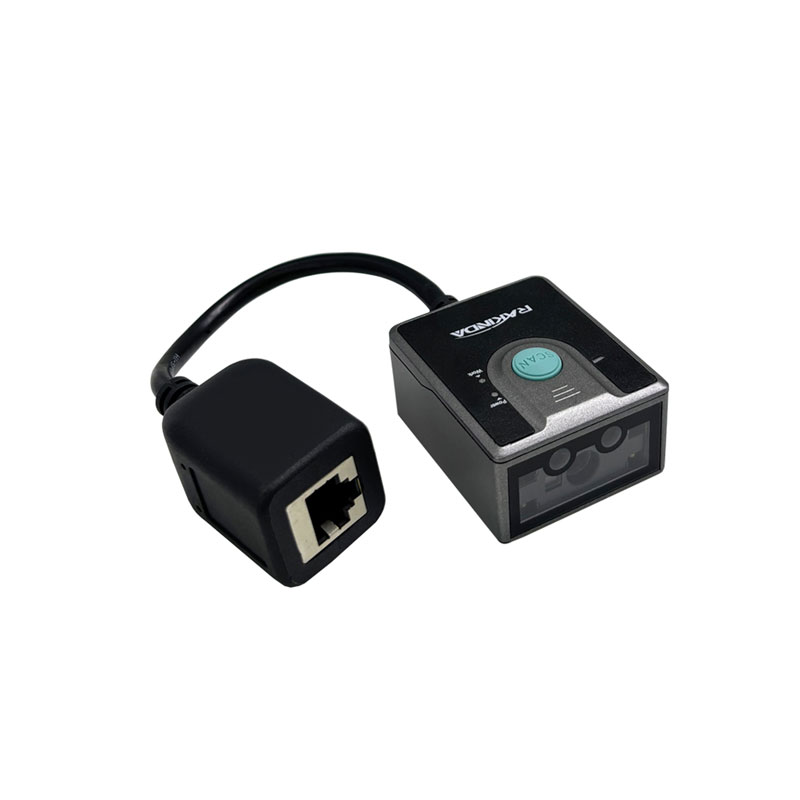

Product ID：LV3000H
Views：6194
Product Introduction：Rakinda's latest technology gives the scan engine an edge with unrivaled decoding capabilities on 1D & 2D barcodes.
Details
It can read high-precision barcodes, and it has advantages to read high passwords; the working temperature is high, and it can be read at Work normally under extreme temperatures;Portable passport MRZ reader ID card OCR 1D QR barcode scanner for airport or hotel.
QR Code Scanner Kiosk Features:
* Infrared/light sensing dual trigger
* Megapixel camera

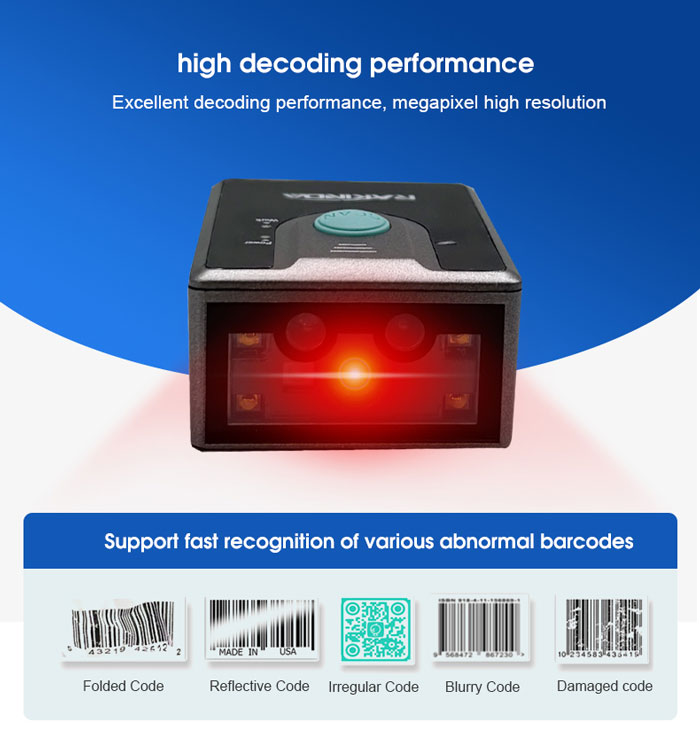

* It can quickly read all kinds of one-dimensional/two-dimensional barcodes and large-data screen two-dimensional barcodes with various films.
* Full code support, customizable
* Automatic exposure control, the sensor on the device can automatically adjust the brightness of the fill light according to the intensity of the light reflected by the barcode
* IP54 protection level
* 1.5m drop resistance
Parameters of Turnstile Barcode Scanner
|
Performance |
Image Sensor |
1280*800 CMOS |
|
|
Illumination Aiming |
Red LED/Laser Aiming |
||
|
Symbologies |
2D |
PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect. |
|
|
1D |
EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc. |
||
|
Resolution |
>=3 mil |
||
|
Typical Depth of Foeld |
EAN-13 |
55-360mm(13mil) |
|
|
Code 39 |
70-180mm(5mil) |
||
|
PDF417 |
55-160mm(6.7mil) |
||
|
Data Matrix |
50-170mm(10mil) |
||
|
QR Code |
40-210mm(15mil) |
||
|
Scan Mode |
Sense mode, Continuous mode, Level mode, Pulse mode |
||
|
Scan Angle |
Roll:360d, Pitch:±55°, Skew:±55° |
||
|
Field of View |
Horizontal 51°, Vertical 32° |
||
|
Min Symbol Contrast |
25% |
||
|
Mechanical Electric |

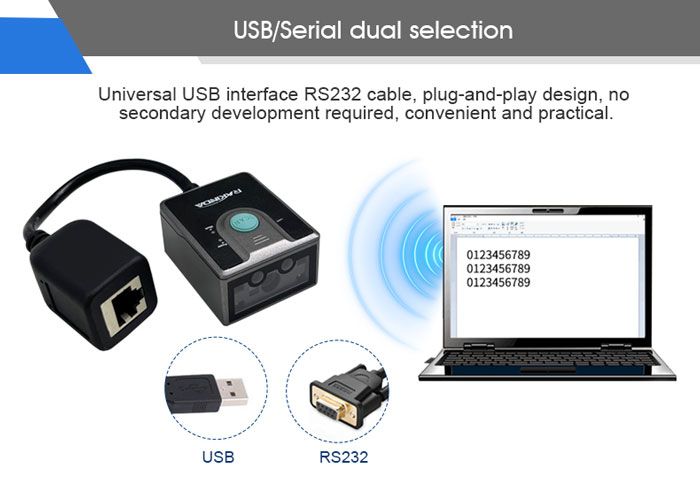

Interface |
RS-232, USB |
|
|

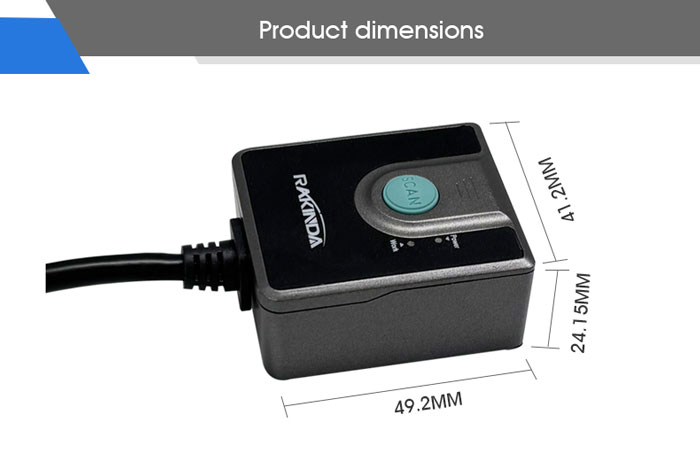

Dimensions |
41.2(W) x49.2(D)x 24.15(H) |
||
|
Weigh |
75g |
||
|
Notification |
Beep, LED indicator |
||
|
Rated Power Consumption |
1622mW(typical) |
||
|
Operating Voltage |
5VDC±-5% |
||
|
Current SVDC |
Operating |
276.8mA(typical), 322.7mA(max.) |
|
|
Standby |
83.3mA |
||
|
Environmental |
Operating Temperature |
-20℃ to 60℃(-4℉ to140℉) |
|
|
Storage Temperature |
-40℃ to 70℃ (-40℉ to 158℉) |
||
|
Humidity |
5% to 95% (non-condensing) |
||
|
ESD |
± 14kV (air discharge), ±8kV (direct discharge) |
||
|
Drop |
1.5m |
||
|
Sealing |
IP54 |
||
|
Certifications |
FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC |
||
|
Environmental |
Cable |
USB |
Used to connect to a host device |
|
RS-232 |
Used to connect to a host device |
||
|
Power Adapter |
DC5V adapter to power with RS-232 cable |
||
