Category：Industrial Scanner
Product ID：RK50
Views：6804
Product Introduction：In stock
Details

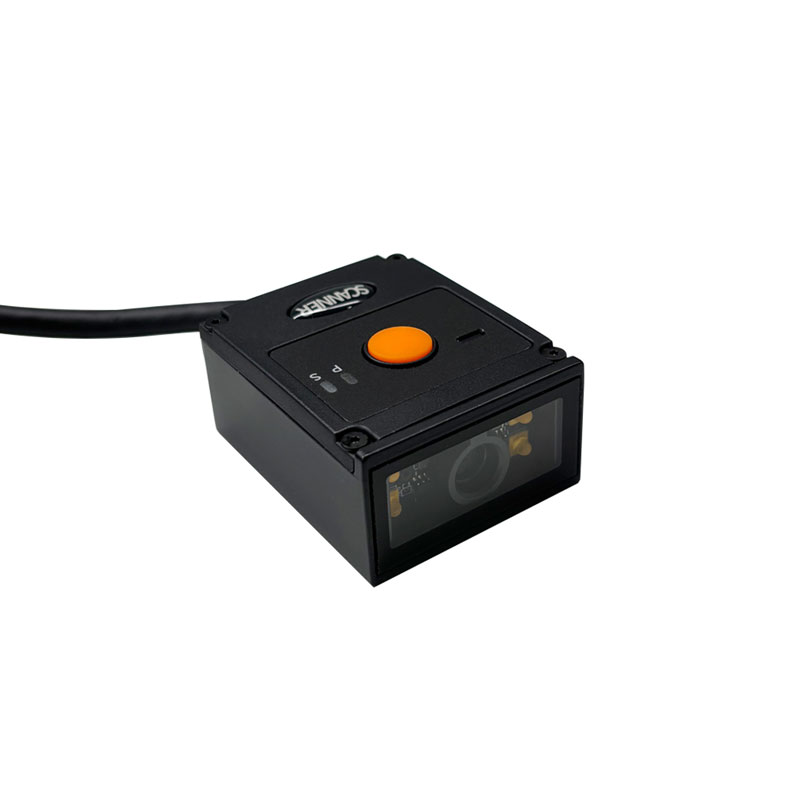

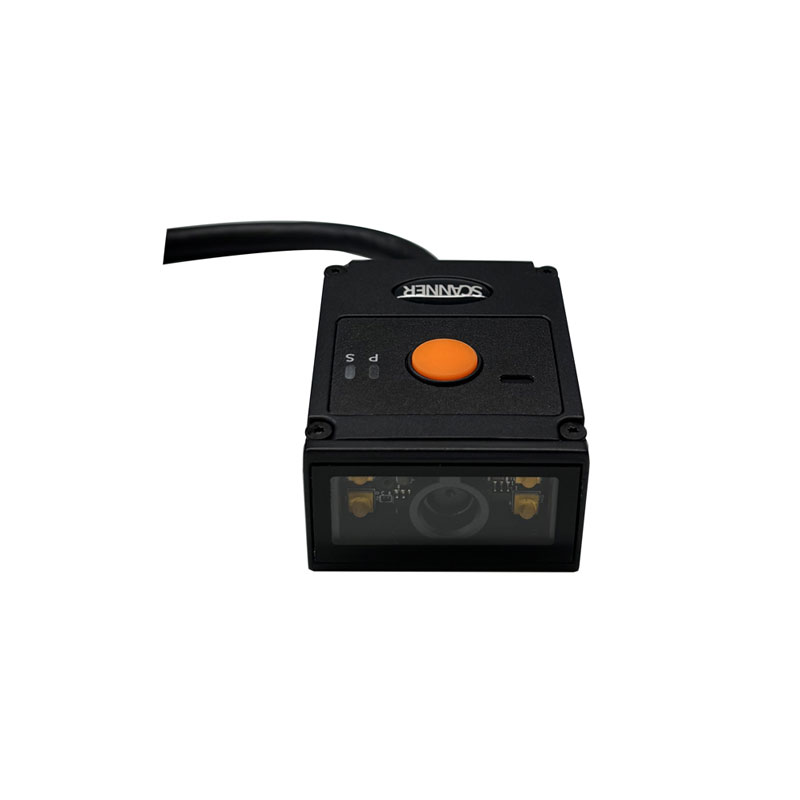

RK50 compact fixed industrial QR code scanner is a 120FPS high-dynamic 1D/2D barcode reader built for high-speed conveyor line barcode reading, a top pick for factory automation, photovoltaic assembly and electronics manufacturing traceability. Equipped with a 1280×960 high-resolution 1.2MP image sensor, this mini embedded barcode scanner delivers stable decoding for low-contrast, dirty and distorted barcodes, supporting ultra-small 3mil 1D and 5mil 2D codes with flexible depth-of-field ranging 30mm–260mm. It offers multi scan modes including external pulse trigger, auto detection and continuous scan, paired with Ethernet (TCP Client/Server, Modbus TCP) and RS232 industrial communication interfaces for seamless integration with PLC, testing equipment and MES systems. Weighing only 100g with 39.5×50×22.6mm tiny zinc alloy housing, this high-speed industrial code reader enables space-saving embedded installation for mobile phone assembly, metal processing and medical device integration.
Modbus TCP Code Reader Parameters
|
Scan Performance |
||
|
Resolution |
1280 pixels (H) x 960 pixels (W), 1.2 million pixels: high-performance sensor |
|
|
Lighting |
4 LEDs, 3000K warm white light source |
|
|
Focusing |
High-brightness red dot aiming |
|
|
Reading mode |
Button Mode, Automatic Detection, Continuous Mode, Pulse Mode (External Trigger) |
|
|
Symbologies |
2D
1D |
Data Matrix,QR Code,MicroQR,PDF417,MicroPDF417,Aztec,MaxiCode UPCA,UPCE,EAN 8,EAN 13,Code 128,Code 39,Code 93,Codabar, Plessey,MSi, Interleaved 2 of 5 |
|
Typical depth of field |
Code (3mil) : 30 mm~90 mm Code 39(5mil) : 35 mm~120 mm QR Code(5mil) : 40 mm~100 mm 100%UPCA(13mil) : 40 mm ~260mm |
|
|
Readability |
1D : ≥3 mil ; 2D : ≥5 mil |
|
|
Field of View Angle |
Level 46° (H), Vertical 34° (V) |
|
|
Printing Contrast |
Greater than 20% (UPC/EAN: 100%) |
|
|
Mechanical & Electrical |
||
|

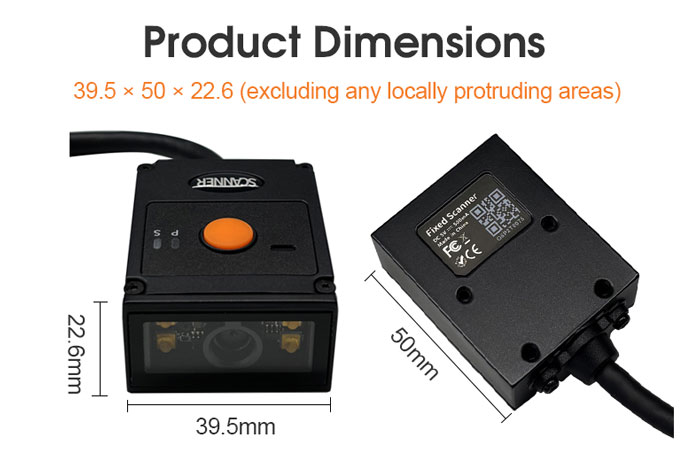

External Dimensions |
39.5 × 50 × 22.6 (excluding any locally protruding areas) |
|
|
Weight |
Approximately 100 g (excluding data cable) |
|
|

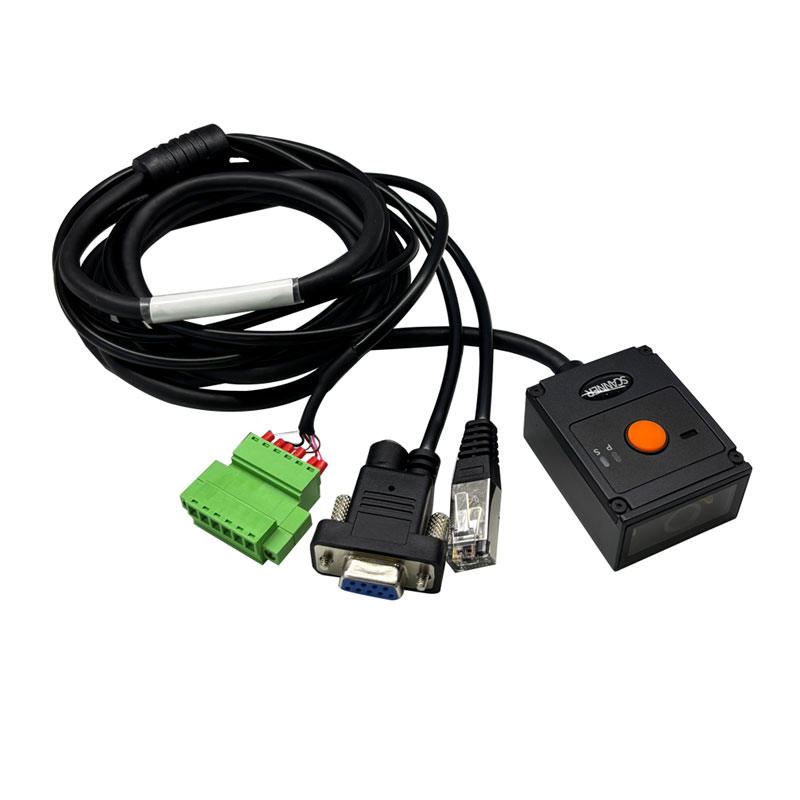

Communication interface |
Ethernet(TCP Client/TCP Server/Modbus TCP),RS232 |
|
|
External Output |
2-channel optical coupling isolation output (Good; NG) |
|
|
Trigger input optocoupler |
(NPN/PNG/relay) |
|
|
Prompting mode |
Bell, LED indicator light |
|
|
Working voltage |
9V~24V DC |
|
|
Environmental parameter |
||
|
Working temperature |
-20℃~+50℃ |
|
|
Storage temperature |
-40℃~+70℃ |
|
|
Relative humidity |
5%~95% (no condensation) |
|
