Category：Card Printer
Product ID：SX230
Views：3405
Product Introduction：
Details
Key Features:

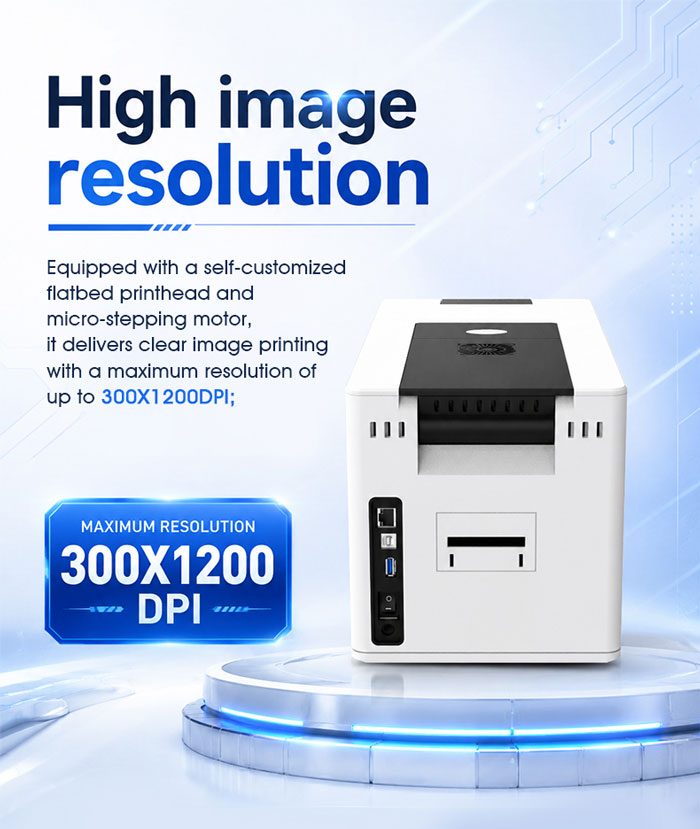

*High-resolution printing – Up to 300 × 1200 DPI for sharp images and fine text

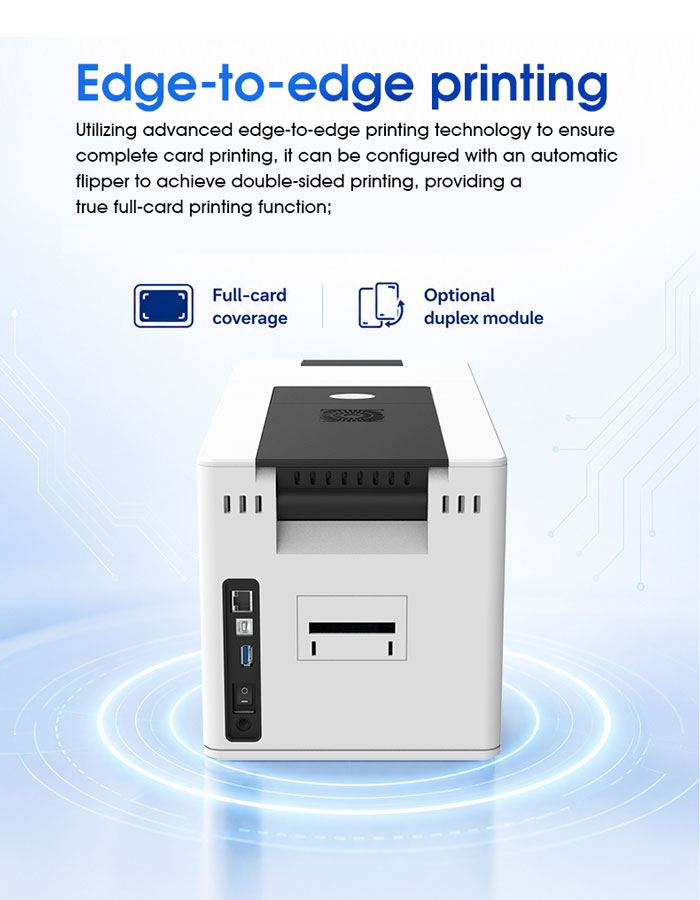

*Edge-to-edge full-bleed printing – Complete card coverage with no white borders
*Versatile card compatibility – Supports PVC, ABS, PET, PET-G, and composite materials

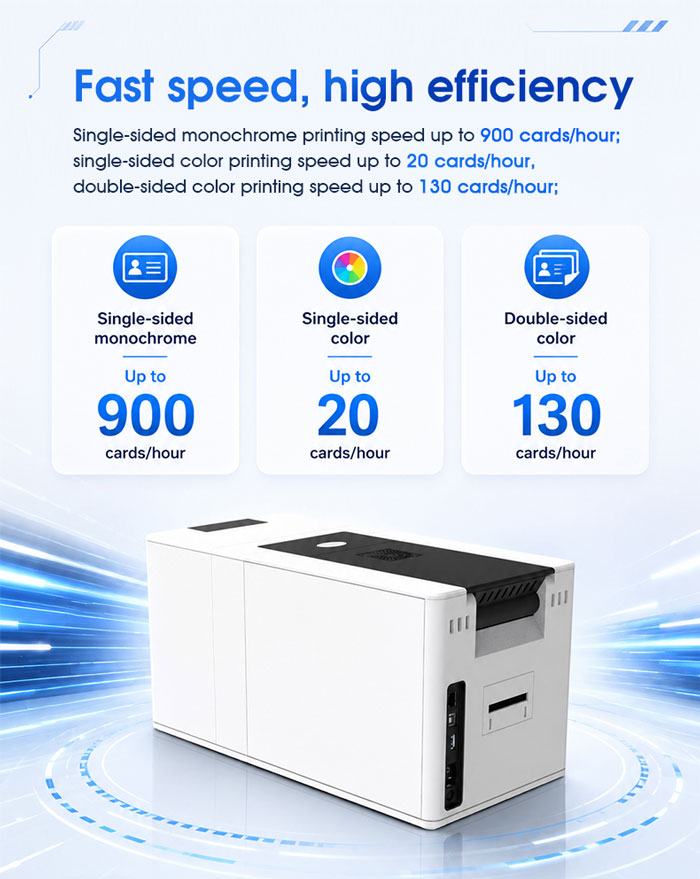

*Fast color printing – Up to 200 cards/hour
Parameters
Standard configuration and specifications of the printer
Print technique
Direct sublimation
Print resolution
300×300DPI、300×600DPI,300×1200DPI
Print Function
Single-sided printing, edge-to-edge printing, double-sided printing (available upon customer request)
Printout rate
Single-sided: Color (YMCKO): 180–200 kcal/h Monochrome (K): 720–900 kcal/h
Double-sided: Color (YMCKO-K): 130 kcal/hour
Card thickness
0.25mm-1.25mm
Accepted card types
PVC, ABS, PET, PET-G, TESLIN, composite materials, etc.
85.6mm×53.98mm(ISOID-1/CR-80size);83.8mm×51.8mm(CR-79)②
Accepted card colors
Transparent, white, black with pre-printed pattern
Security features
Color-band encrypted RFID

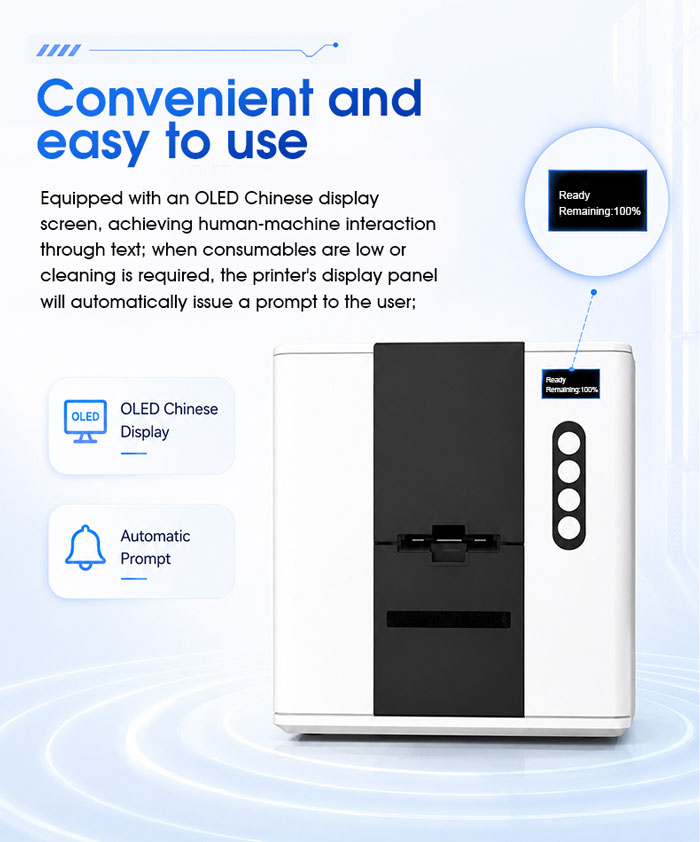

User-friendly operation
ration interface

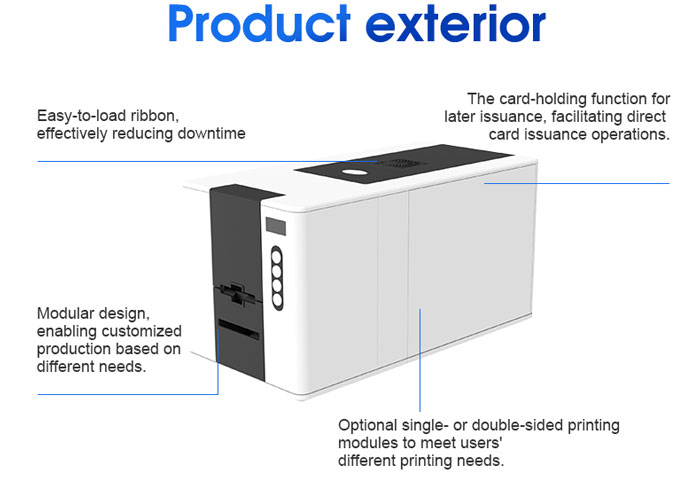

Easy-to-load components, including rapidly replaceable color trips and an automatic card slot
Automatic card capacity and insertion
Automatic insertion: Supports up to 100 cards at 0.76 mm diameter (maximum support: 200 cards at 0.76 mm diameter).
Additional manual insertion: Prioritize single-card insertion. Front card slot: 25 cards (0.76 mm) Rear external card slot: 75 cards (0.76 mm)
Functionality Operational environment
Standard operating environment temperature and humidity: Temperature: 15°C–35°C; Relative humidity: 20–65% RH (no condensation). Minimum/Maximum Operating Temperature and Humidity: Temperature:0°C–40°C; Relative humidity: 20–65% RH (no condensation)
Storage environment
Temperature: -5 C to 70°C Relative humidity: 20–70% RH (no condensation)

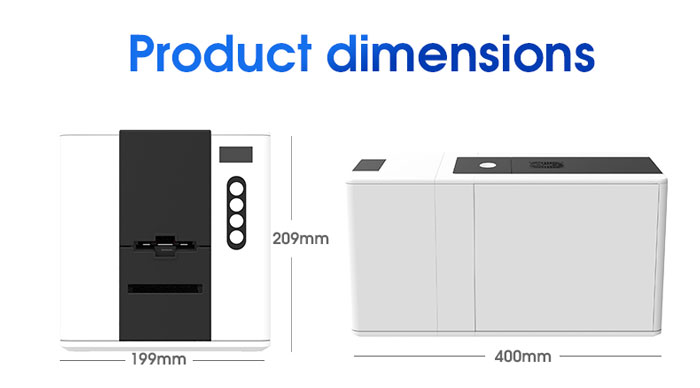

Full scale
352(length)×199(width)×209(height) mm (excluding automatic turner); 400(length)×199(width)×209(height) mm (including automatic turner)
Weight
Approximately 6.2 kg
Power requirements
Adaptive wide-power supply: 100–240 V, 50/60 Hz
Print driver
Windows XP, Vista, 7, 8, 10 (both 32-bit and 64-bit versions) operating systems
Interface
USB (1.0, 1.1, 2.0) connections; USB hub connection; Ethernet 10/100Base-T bidirectional network connection (optional);
Institutional Certification
CCC at testation
Printer Optional Accessories
Option
Automatic flipper, magnetic stripe reader, contact-based reader/writer, non-contact reader/writer, 200-large card slot, compatible with typesetting software Certified consumables utilizing intelligent consumable technology
Consumable material
Certified consumables utilizing intelligent consumable technology
Auto Print Settings and Adjustments

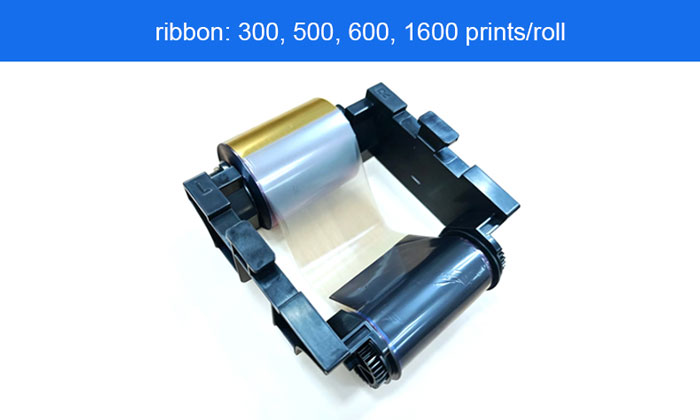

YMCKO ribbon(350/500 patterns);YMCKO-Ribbon(400 patterns);1/2(YMC)ribbon(600 patterns);Ribbon(150metersperroll
Cleanliness Set
Cleanliness Kit:
Cleanliness Card
Adhesive cleaning roller
