PRODUCTS
Category：Handheld & Desktop
Product ID：S3
Views：3159
Product Introduction：In stock
Details

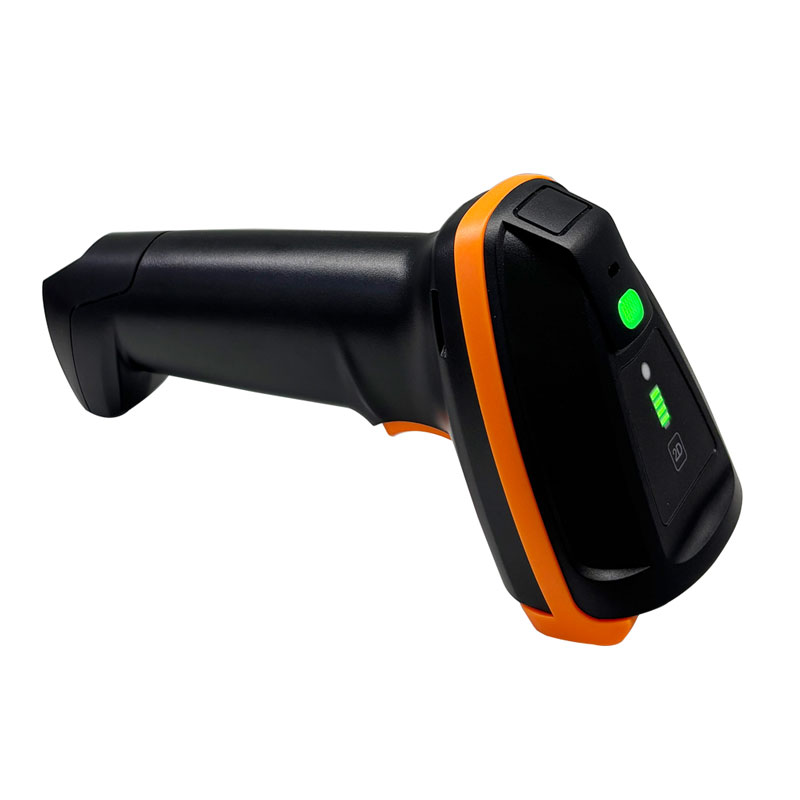

The S3 Series is a high-performance industrial handheld barcode scanner engineered for warehouses, manufacturing lines, and logistics operations. Equipped with a 1280×1080 pixel global exposure sensor and advanced decoding algorithms, it delivers fast, reliable reads on virtually all universal 1D and 2D barcodes—including low-contrast, stained, or distorted printed codes. With support for DPM (Direct Part Marking) symbologies such as Data Matrix, QR, and PDF417, this industrial barcode reader excels in automotive, electronics, and metalworking applications where direct part marks are common. Whether you need a barcode scanner for inventory management, production traceability, or shipping and receiving, the S3 delivers exceptional read accuracy (1D: ≥3 mil; 2D: ≥5 mil) and a depth of field up to 200mm for 100% UPC-A. Its light industrial design makes it a cost-effective yet powerful solution for businesses seeking reliable data capture without compromising performance.
Parameters of Wireless Bluetooth Barcode Scanner
|
Productparameters |
||
|
Pixel |
1280 Pixels(H) x 1080 Pixels(V) |
|
|
Lighting |
White ; Red ; Blue LEDs |
|
|
Aimer |
Red LED |
|
|
Imager Field of View |
36° (H) x 30° (V) |
|
|
Decode Capabilities |
1D |
UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 ,Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited , CC-A , CC-B , CC-C |
|
2D |
PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR, Aztec , MaxiCode ,DotCode , DPM |
|
|
Read accuracy |
1D : ≥3 mil ; 2D : ≥5 mil |
|
|
DOF (mm) |
Code39 (3 mil) : 40 mm ~ 105 mm |
|
|
Code39 (5 mil) : 35 mm ~ 135 mm |
||
|
QR Code (5 mil) : 40 mm ~ 115 mm |
||
|
100%UPCA(13mil) ：40mm~200mm |
||
|
Minimum Print Contrast |
20% (UPC/EAN 100% , PCS 90%) |
|
|
Wireless |
||
|
Radio Technology |
2.4G ; Bluetooth |
|
|
Battery |
3200 mAh |
|
|
Expected Charge Time |
8 hours |
|
|
Expected Battery Life |
12 hours of continuous operation (scan once per 5 seconds) |
|
|
Physical |
||
|

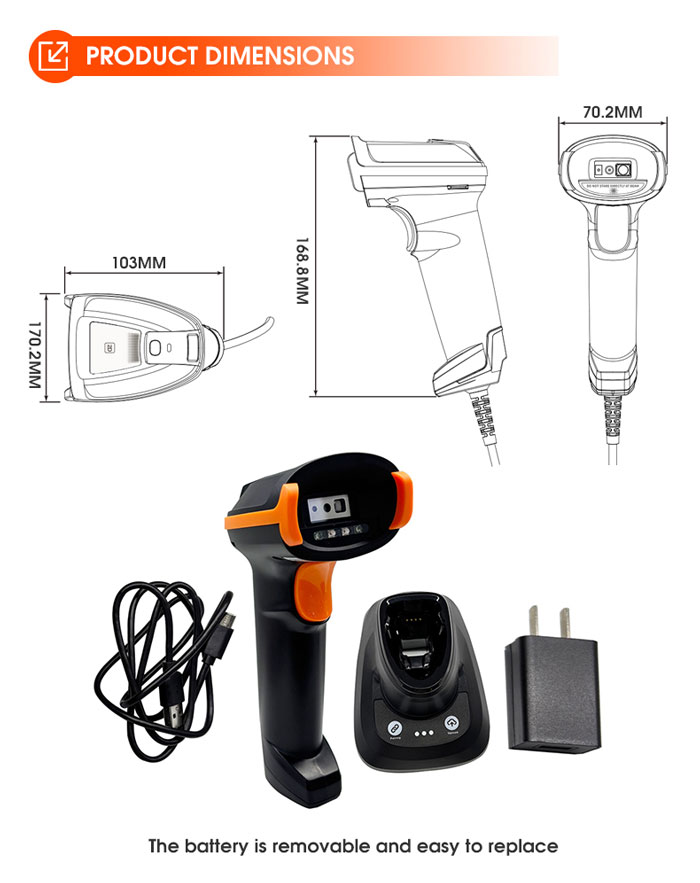

Dimension (mm) |
70.2 (W) × 103 (D) × 168.8 (H) |
|
|
Weight |
212g(barcode scanner) 134g(base ) |
|
|
Standby current |
USB Type A (HID ; CDC) |
|
|
Notification |
Beeper,LED, Vibration |
|
|
Operating Voltage |
DC 5V±5% |
|
|
Environmental |
||
|
Operating Temp |
-10℃~+50℃ |
|
|
Storage Temp |
-40℃~+70℃ |
|
|
Humidity |
5%~95%（non-condensing） |
|
|
ESD |
±8KV (air discharge); ±4 KV (direct discharge) |
|
|
Drop |
Scanner: 1.5 m; Cradle: 1.2 m |
|
|
Sealing |
IP64 |
|
|
Certificates&Protection |
CE ROHS, FCC ID |
|
