Category：Handheld & Desktop Scanner
Product ID：RD100
Views：3364
Product Introduction：
Details

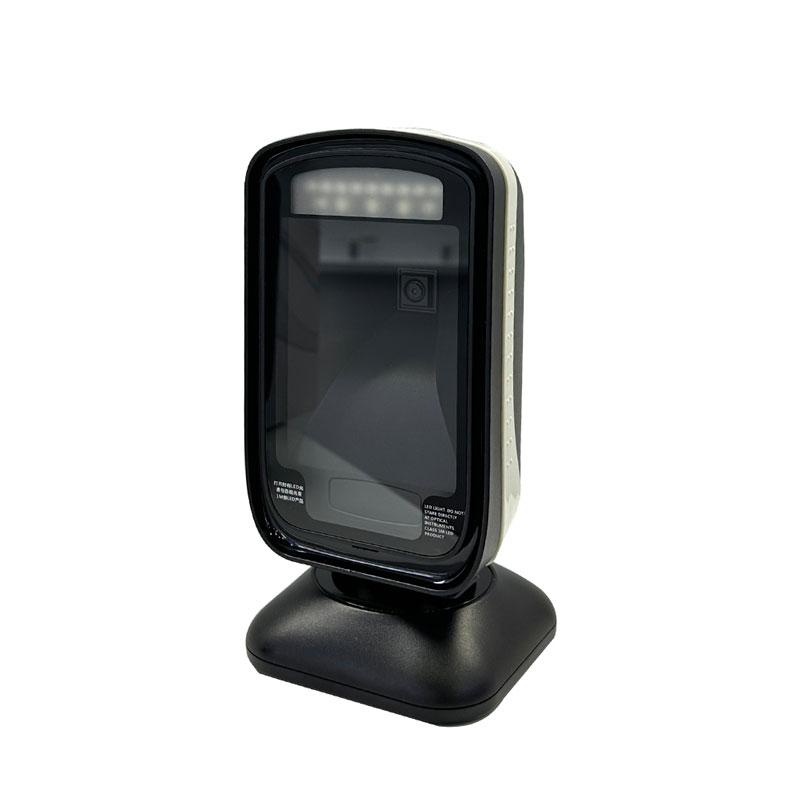

Introducing our cutting-edge barcode scanner, designed to revolutionize your scanning needs with its unparalleled performance, durability, and user-friendly design. This scanner is not just a tool; it's a solution that combines low power consumption with excellent performance, making it incredibly cost-effective for any business.
Advanced Scanning Capabilities
Our scanner excels in reading long barcodes, wrinkled barcodes, large QR codes, and even barcodes displayed on screens. This versatility ensures that you can scan virtually any type of code with ease, enhancing your operational efficiency.
Ergonomic and Durable Design
Crafted with user comfort in mind, this scanner is compact, lightweight, and ergonomic, making it highly comfortable to use for extended periods. Its IP42 protection level ensures it can withstand dust and water, while its 1.2m drop resistance and key life of up to 3 million times guarantee long-lasting durability.
Parameters of Wireless Handheld Scanner
|
Physical Specifications |
|
|
Dimension |
166x73×83mm |
|
Weight |
105g |
|
Electrical |
|
|
ESD |
±8KV Air,,±4 KV Contact |
|
Input voltage |
5V |
|
Input and output interfaces |
USB,RS232,Key rigger |
|
Performance Parameter |
|
|
Sensor resolution |
640*480 |
|
Illumination |
White lighting |
|
Aiming |
LED |
|
Min Resolution |
3mil |
|
FOV |
57.6°(0)46.6°(H)36.8°(V) |
|
Symbol Contrast |
25%minimum print contrast ratio |
|
Scan Angles |
Pitch:±60°;Roll:360°; Yaw:±60° |
|
Reading Indicators |
LED indicating lamp |
|
DOF |
|
|
Barcode |
|
|
13 mil EAN13 |
50mm-230mm |
|
15 mil QR |
30mm-130mm |
|
Environmental Specifications |
|
|
Drop |
1.2m steel plate dropped 6000 times 10cm steel plate slightly dropped |
|
Tumble |
300hits,0.5m,Steel |
|
IP |
IP42 |
|
Button life |
3 million times |
|
Light Levels |
0-100,000 lux |
|
Humidity |
5%-95% |
|
Temperature |
Operating:-20 to 50 ℃;Storage:-40 to 70℃ |
|
Symbologies |
|
|
2D Codes |
UCC Composite;Aztec;China Sensible Code;Data matrix;Dot Code; |
|
1D/Linear Codes |
Code EAN/UPC;GS1DataBar(RSS-14);Code39;Code 128(GS1-128); |
|
Postal Codes |
Australian Post;British Post;China Post;IMB;Japanese Post; KIX Post;Korea Post;Planet Code;Postnet;Royal Mail Code |
|
Stacked Codes |
EAN/JAN Composites;GS1 Data Bar Composites;GS1 Data Bar Expanded Stacked;GS1 Data Bar Stacked; GS1 Data Bar Stacked Omnidirectional;Macro PDF; |
