Category：Barcode Scan Engine
Product ID：LV3000U
Views：13393

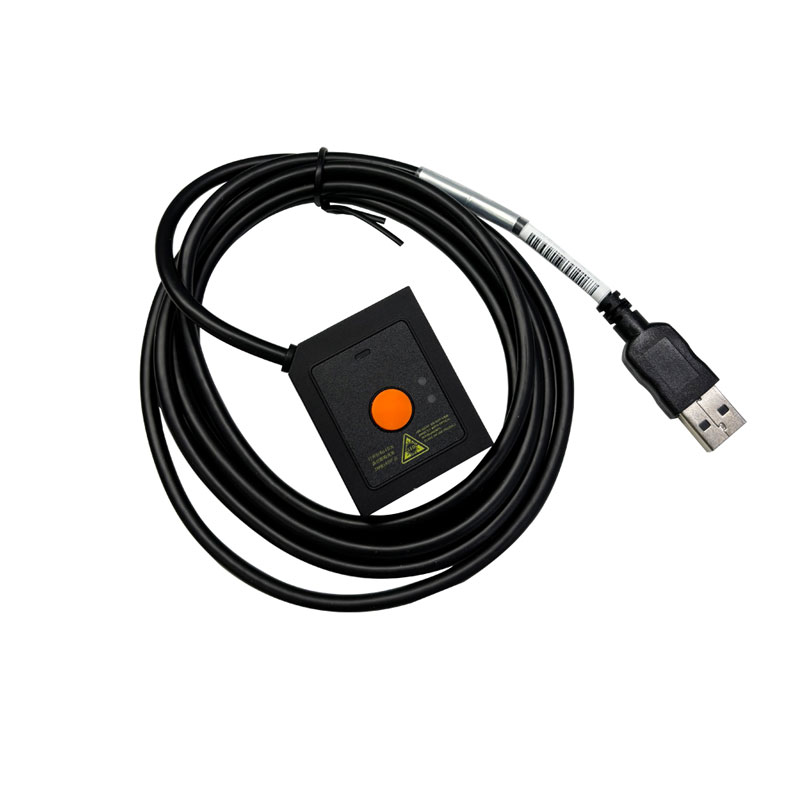

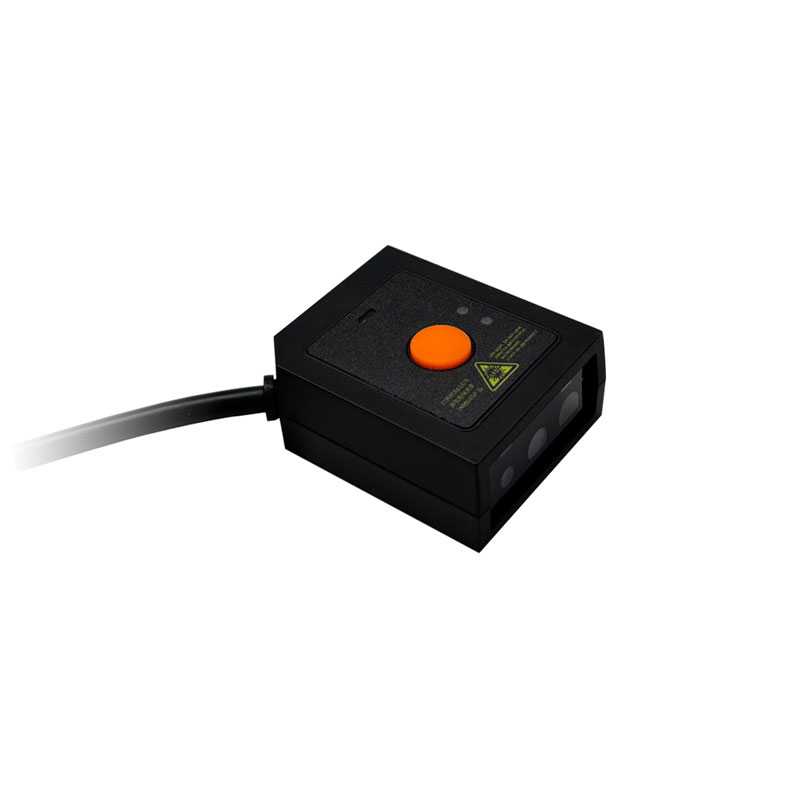

Product Introduction：LV3000U Fixed Mount 2D Scanner is environmentally sealed to anIP54 rating to prevent dust, moisture and other contaminant from entering it.
Details

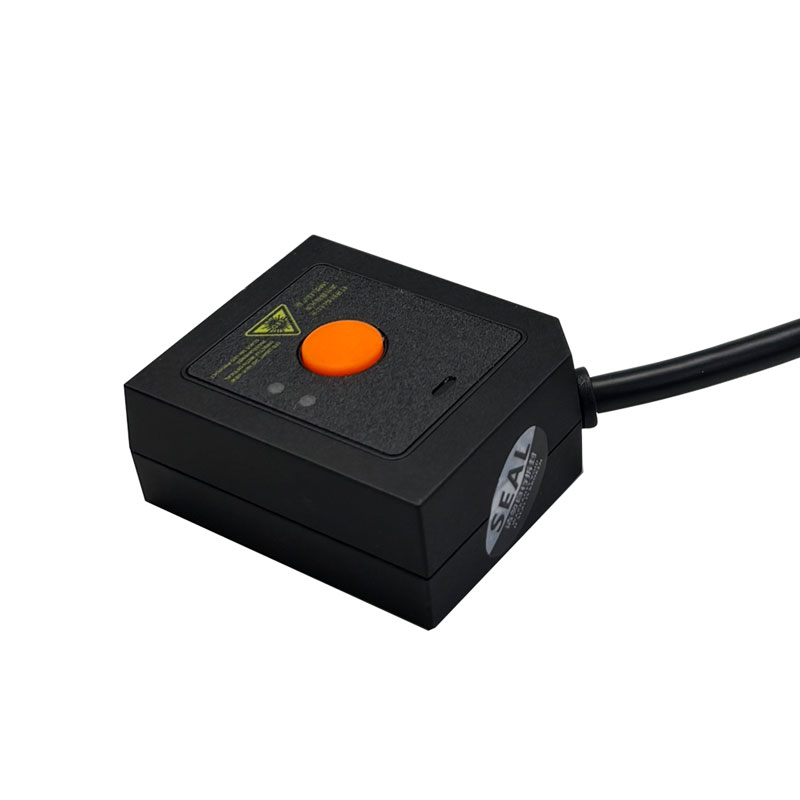

LV3000U Fixed Mount 2D Scanner is environmentally sealed to anIP54 rating to prevent dust, moisture and other contaminant from entering it.
Product Features:
1.IR/Light Triggers
The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.
2.Automatic Exposure Control (AEC)
The sensors in the LV3000U automatically adjust the brightness of supplementary lighting based on the light reflected off barcode.
3.IP54-sealed Housing
The LV3000U is environmentally sealed to anIP54 rating to prevent dust, moisture and other contaminant from entering it.
4.Unmatched Reading Performance
The LV3000U is capable of reading 1D as well as high-volume 2D barcodes on the screencovered with protective film.
5.Highly Visible Laser Aimer
The LV3000U provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.
6.1.5m Drop Resistance
The scanner withstands multiple 1.5m drops toconcrete (for six sides, three drops per side).
Application Fields:
Self-service Kiosk Terminal, Payment machine, Smart Locker, Vending Machine, O2O applications, etc.
Product Parameters:
Item number
LV3000U
Interface
RS232/USB
Image Sensor
960*640 CMOS
Symbologies
2D: PDF417, Data Matrix, QR Code, Aztec, CSC, Maxicode, Mircro QR, Micro PDF417, GM, Code One, etc.
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
Precision
3 mil
Light Source
White LED
Laser Diode or green LED
Scan Mode
Sense Mode, Continuous Mode, Level Mode,Pulse Mode
Drop
1.5m
Power Consumption
1622mW (Typical)
Weight
75g
Dimensions
41.5 mm(L) X 49.5mm (W) X 24.3mm(H)
Notification
Beep, LED Indicator
Operating Temperature
-20 ℃ to +60 ℃
Storage Temperature
-40 ℃ to +70 ℃
Humidity
5% - 95% ( non-condensing )
Sealing
IP54
Certification
FCC Part15 Class B, CE EMC Class B
EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6,
Standard 25, Matrix 25, COOP 25, Industrial 25,
MSI Plessey, Code 11, Code 93, Code 49,
Code 16K, etc.
PDF417, QR Code, Data Matrix, AZTEC, CSC,
Maxicode, Micro QR, Micro PDF417, GM,
Code One, ect.
Model Name
LV3000U
LV3000H
Image Sensor
960*640 CMOS
1280*800 CMOS
Illumination
White LED（400nm-750nm）
Red LED
Aiming
Green LED（510-540nm）
Laser Aiming
Sealing
IP54
IP54
Field of view
Horizontal 51°, Vertical 32°
Horizontal 51°, Vertical 32°
Interface
RS-232, USB
RS-232, USB
1D
Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,
ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,
Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
2D
PDF 417, Data Matrix, QR Code,Aztec,Maxicode,Mircro QR, Micro PDF417, GM, Code One, OCR, MRZ
Resolution
≥3mil
≥3mil
Operating Temperature
-20℃~ +60℃
-20℃~ 60℃(-4℉~140℉)
Storage Temperature
-40℃~ +70℃
-40℃~70℃ (-40℉ ~ 158℉)
