Category：Fixed Mount Scanner

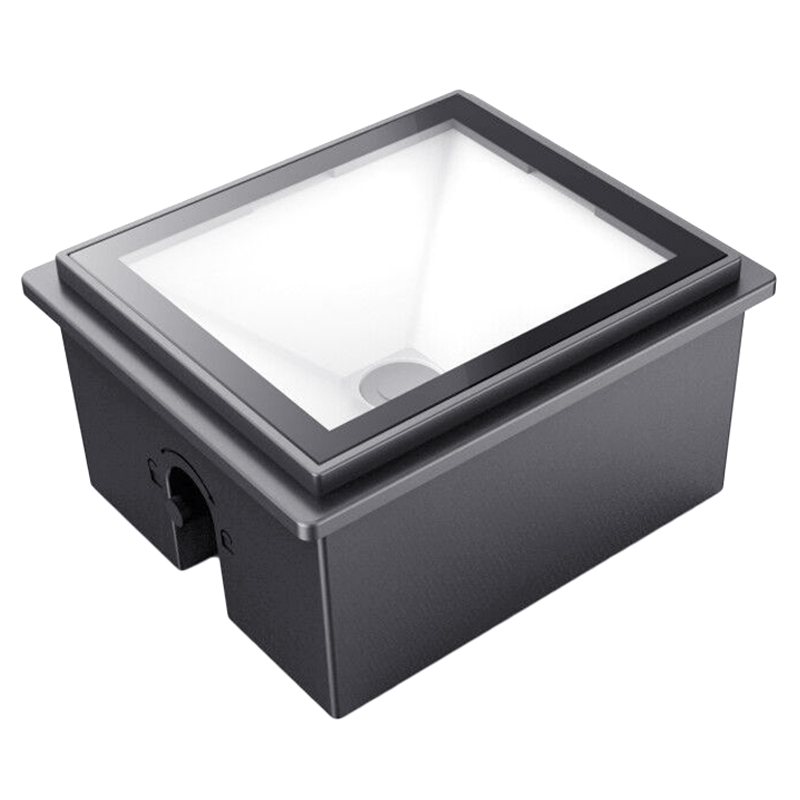

Product ID：LV3000
Views：3660
Product Introduction：
Details
Embedded Barcode Reader System Features:
● Support secondary development: secondary development can be carried out through serial port instructions and SDK, and supports hardware, optics, algorithms, and embedded customization.
● High-speed recognition: Using a 120-frame Global Shutter high-speed sensor, it can quickly identify screen and paper barcodes.
● Good environmental adaptability: It adopts aluminum alloy shell and low power consumption design, which can meet the requirements of continuous operation in both low and high temperature environments.
● Supports customization of unique dual optical sensing technology, which can achieve rapid and accurate distance sensing wake-up in dark environments.
Stationary Barcode Scanner Parameters
|
Performance |
Image Sensor |
|
640*480 Coms |
|
Illumination |
|
White LED |
|
|
Symbologies |
2D |
(PDF417)、(QR Code)、(Micro QR)、(Data Matrix)、(Aztec)、(Hanxi code) |
|
|
1D |
(Codabar)、(Code 39)、(Code 32)、(Industrial 2 of 5)、(Interleaved 2 of 5)、(Standard 2 of 5)、(Matrix 2 of 5)、(Code 93)、(Code 11)、(Code 128)、(UPC-A)、(UPC-E)、(EAN/JAN-8)、(EAN/JAN-13)、(GS1 DataBar(RSS14) |
||
|
Resolution* |
|
≥5mil |
|
|
Typical Decode Range* |
EAN-13 (13mil) |
5mm~90mm（Barcode Size：31mm*7mm） |
|
|
PDF417 (6mil) |
5mm~55mm（Barcode Size：14mm*7mm） |
||
|
Code39 (6.6mil) |
18mm~45mm（Barcode Size：27mm*8mm） |
||
|
Data Matrix (10mil) |
5mm~60mm（Barcode Size：5mm*5mm） |
||
|
QR Code (15mil) |
5mm~80mm（Barcode Size：10mm*10mm） |
||
|
Min Print Contract* |
|
≥20% |
|
|
Scan Angle** |
|
Skew±70°，Pitch±70°，Roll 360° |
|
|
FOV |
|
Diagonal 87.1°，Horizontal 74°，Vertical 65° |
|
|
Electronic |
Interface |
|
USB、RS232 、RS485 、TTL、Wiegand |
|
Dimension(mm) |
|
78(W)×66.2(D)×41(H)(Max) |
|
|
Operating Voltage |
|
5VDC±5% |
|
|
Power |
|
1400mW(Typical) |
|
|
Current@5 VDC |
Operating |
280mA(RMS Typical)，300mA(RMS Max) |
|
|
Standby |
150mA |
||
|
Environmental |
Operating Temperature |
|
0℃~+60℃ |
|
Storage Temperature |
|
-40℃~+70℃ |
|
|
Operating Humidity |
|
5%~95%（Non-Condensing） |
|
|
Embient Light |
|
0~100,000LUX |
|
|
Accessories |
Cable |
USB |
USB Cable |
|
RS-232 |
RS232 Cable |
||
|
TTL |
TTL Cable |
||
|
RS-485 |
RS485Cable |
||
|
WG |
Wiegand Cable |
