PRODUCTS
Category：Fixed Mount Scanner
Product ID：LV5500
Views：4466
Product Introduction：
Details

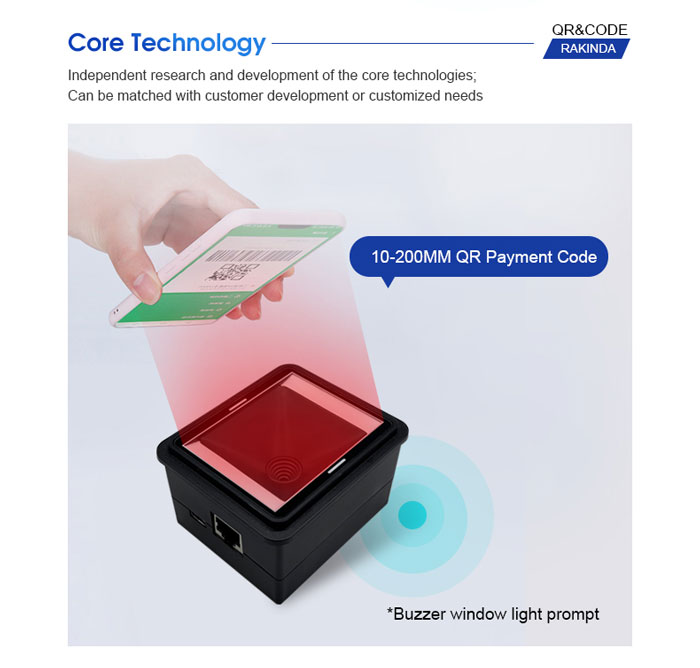

Boost efficiency with the LV5500, a high-speed 1D/2D barcode scanner engineered for industrial and retail applications. Featuring a 640x480 CMOS sensor (upgradable to 1280x800), it delivers rapid scanning of paper and screen codes, including QR, PDF417, Data Matrix, and all major 1D symbologies. With a reading distance of 0–30mm and tilt tolerance up to ±55°, it excels in self-service kiosks, logistics cabinets, and ATMs. Customizable USB, TTL, RS232, or RS485 interfaces and 5V–16V wide voltage input ensure seamless integration. NFC support for Mifare, CPU cards, and mobile payments adds unmatched versatility.
Barcode Reading Engine Parameters
|
Scan Performance |
Imaging sensor |
640×480 CMOS |
||
|
Lighting |
White, LED 6500K |
|||
|
Read code system |
2D |
PDF417, Data Matrix, QR Code,AZTEC |
||
|
1D |
And EAN-13,EAN-8,UPC-A,UPC-E,Code 39,Code 128,ISBN,Code 93,Code 11,UCC/EAN-128,GS1 Databar,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Codabar,Standard 2 of 5,MSI-Plessey,GS1 composite code, et al |
|||
|
Reading accuracy |
1D ≥6mil 2D≥10mil |
|||
|
Typical reading of the depth of field |
10-200CM Alipay payment code |
|||
|
20-120CM EAN13 13mil |
||||
|
Symbol Contrast |
≥20% |
|||
|
Bar code sensitivity |
Ttilt ± 55°, deflection ± 55°, and rotation 360° |
|||
|
Field of view Angle |
Horizontal, 66°, and 50° vertical |
|||
|
Machinery Electrical Parameters
|
Communication interface |
USB (optional, HID, virtual serial port), TTL serial port; Customizable RS232, RS485 |
||
|

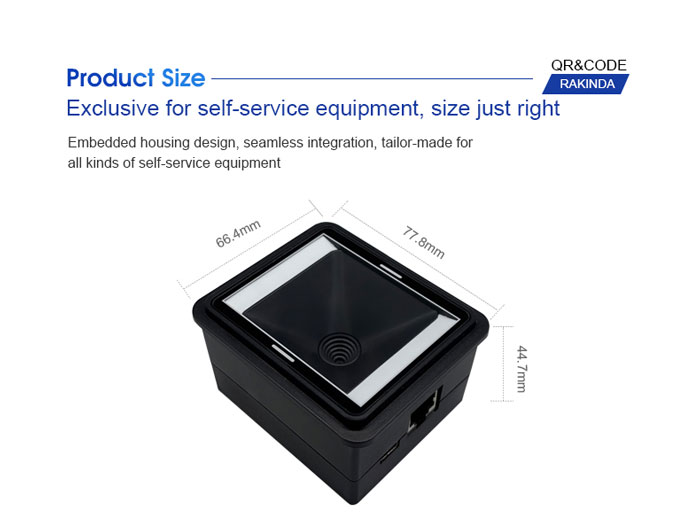

Visual dimensions (mm) |
77.8(D)×66.4(W)×44.7 (H) |
|||
|
Weight |
70g |
|||
|
Working voltage |
Power supply is 1:4-6V (5V power supply) by default Power supply 2: customized 5V-16V wide voltage Note: Power supply 1 and power supply 2, choose one or the other, not at the same time |
|||
|
Rated current |
(Typical value) is less than 190 mA (5V input) |
|||
|
Enviromental Parameter |
Working temperature |
-20℃~+60℃ |
||
|
Storage temperature |
-40℃~+70℃ |
|||
|
Working humidity |
5%~95% (no condensation) |
|||
|
Environmental light |
0~100,000LUX |
|||
|
Thermal Shock Resistance |
Maximum temperature |
60°C (140 °F) |
|
|
|
Minimum temperature |
-20°C (-4 °F) |
|
||
|
Cycle index |
30 minutes for high temperature; 30 minutes for low temperature |
|
||
|
Period |
24 |
|
||
