Shenzhen Rakinda Technologies Co., Ltd.

Peraformance

Light Source

LED Red Light (standard)

Decode Capabilities

2D

1D

2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code

Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;GS1

DataBar Stacked Omnidirectional; GS1 DataBar Composite;

MicroPDF417; PDF417.

1D: ll standard 1D codes including GS1 DataBar™ linear code can

be automatically distinguished and decoded.

Aiming Light

Green Dot

Image Sensor

1280*800 pixels (Global Shutter)

Resolution(maximum)

3mil

Minimum Print Contrast

15% Reflection Difference

Motion Tolerance

2M/S

Image Field of View

Horizontal: 42°; Vertical: 32°

Reading Indicators

LED light&Buzzer(adjustable tone and volume）

Typical depth of Field

(The minimum depth of field is determined by the

barcode length and

scanning angle. It depends on the print resolution,contrast and ambient light.)

Precision             Barcode                             Depth of Field

3.34mil               CODE 128                         60mm—130mm

10mil                   CODE128                          40mm—190mm

3.34mil                 EAN-13                            60mm—120mm

10mil                    EAN-13                            40mm—180mm

13.34mil              EAN-13                            50mm—210mm

3.34mil                 PDF417                             60mm—110mm

10mil                    PDF417                             40mm—190mm

10mil                    DM                                   40mm —170mm

20mil                    DM                                   30mm—210mm

20mil                    QR                                     30mm—220mm

10mil                    QR                                     40mm—

160mm

Current

Working current(Standard): < 460 mA ; Standby current(Standard): <90 mA

Input Voltage

12-24 VDC (+/- 10%)

ESD protection

Air discharge: 15Kv; Contact discharge: 8Kv

Drop resistance

Withstands repeated drops from 1.5m/4.0 ft onto a concrete surface.

Temperature

Working: -10 to 50 °C

Storage/Transport: -20 to 65°C

Humidity(non-condensing)

5 - 95%

Ambient light

Indoor: 0 to 100,000 lux

Interfaces

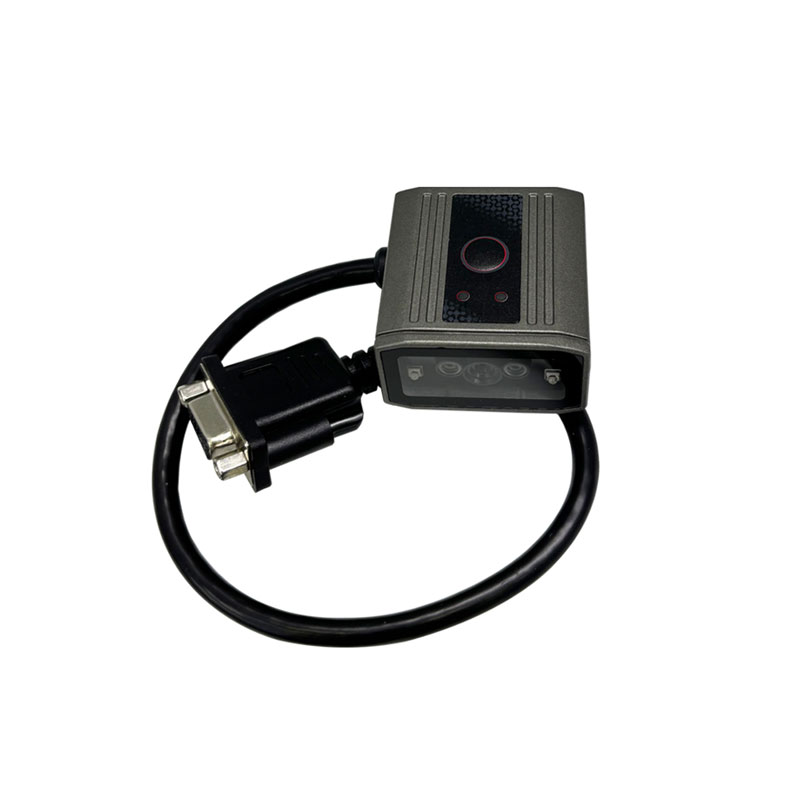

RS-232 Ethernet/IP; IO input and output (1 input; 2 outputs)

Transmission

Supports multi-language transmission, direct transmission in

Chinese, direct transmission invoicing, supports Windows, Linux, ISO and other operating systems, and supports data editing functions.

Warranty

12 months
