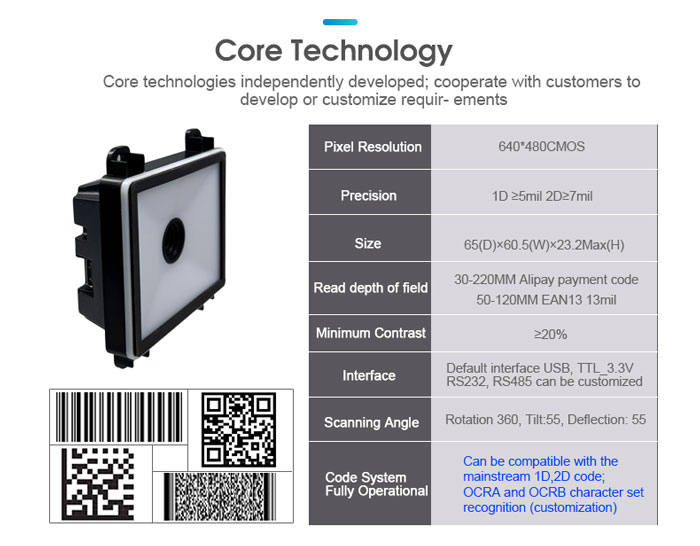

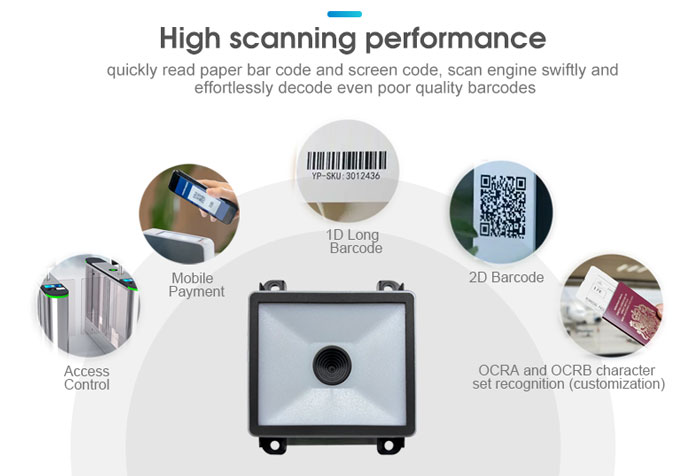

Scan Performance

lmage Sensor

640x480 CMOS

Lighting

White. LED 6500K

Read the Code

2D

1D

PDF417, Data Matrix, QR Code, HanXin,AZTEC,maxicode

EAN- 13, EAN-8, UPC-A, UPC-E, Code 39,Code 128, ISBN, Code 93,

Code 11, UCC/EAN- 128, GS1 Databar, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, Standard 2 of 5, MSI-Plessey, GS1 composite code, etc

Reading Accuracy

1D≥5mil  2D≥7mil

Typical Reading Depth of Field

30-220MM Alipay payment code

50- 120MMEAN13 13mil

Contrast of symbols

20%

Barcode Sensitivity

Tilt ±55°, deflection ±55°, rotation 360°

Field Angle

Horizontal 66°, vertical 50°

Machinery Electrical Parameters

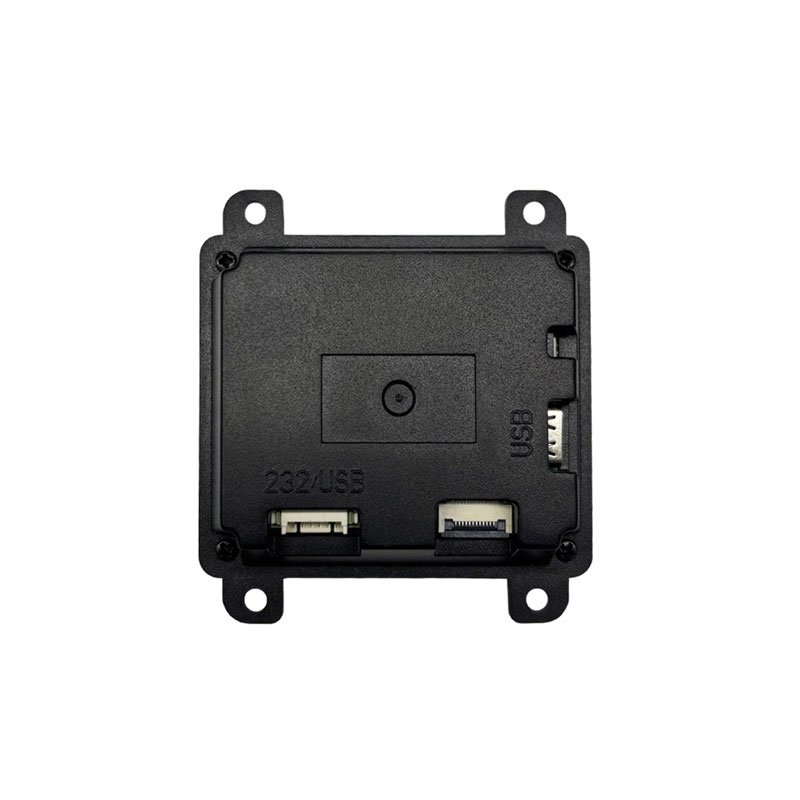

Communication Interface

USB (optional, HID, virtual serial port), TTL serial port;RS232, RS485 customizable

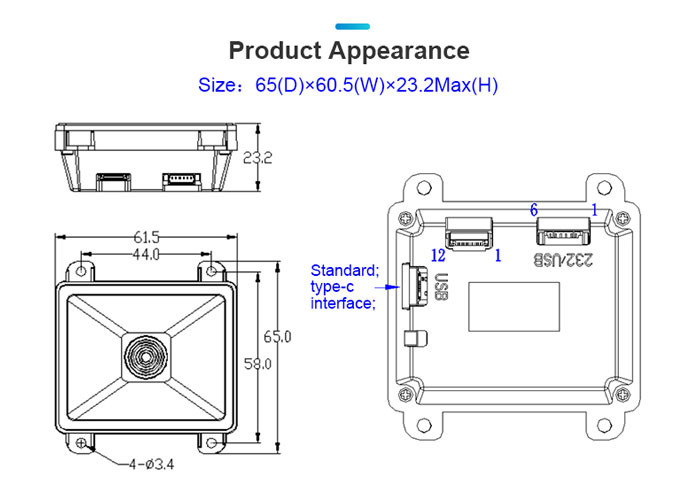

Dimensions (mm)

65(D)×60.5(W)×23.2Max(H)

Weight

30g

Working Voltage

Power supply 1:4.5V-5.5V (default)

Power supply 2:3.3V- 3.6V (customized)

Power supply 3:4.5V- 16V (customized)

Rated Current

(typical value) less than 150mA (5V input)

Enviromental Parameter

Working Temperature

-20℃~+60℃

Storage Temperature

-40℃~+70℃

Working Humidity

5%~95%(no condensation)

Environmental Light

0~100,000LUX

Heat Shock Resistance

Maximum Temperature

60°C(140°F)

Minimum Temperature

-20°C (-4°F)

Cycle Index

30 minutes for high temperature: 30 minutes for lowtemperature

Period

24
