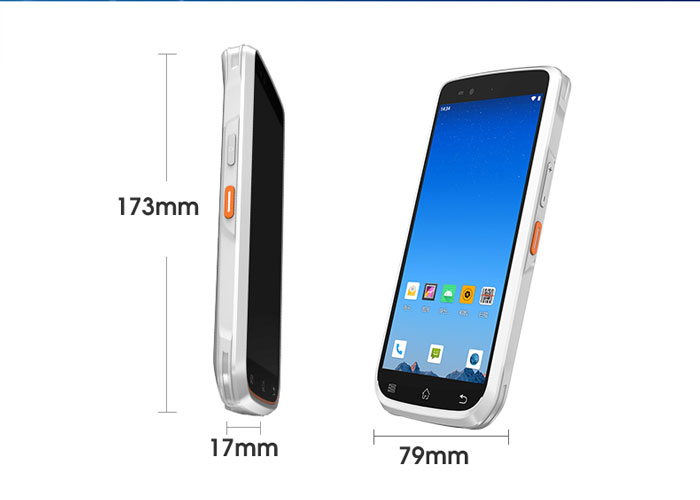

Size

173 (L) * 79 (W) * 17 (T) mm

Weight

The whole machine is less than 350g (including battery)

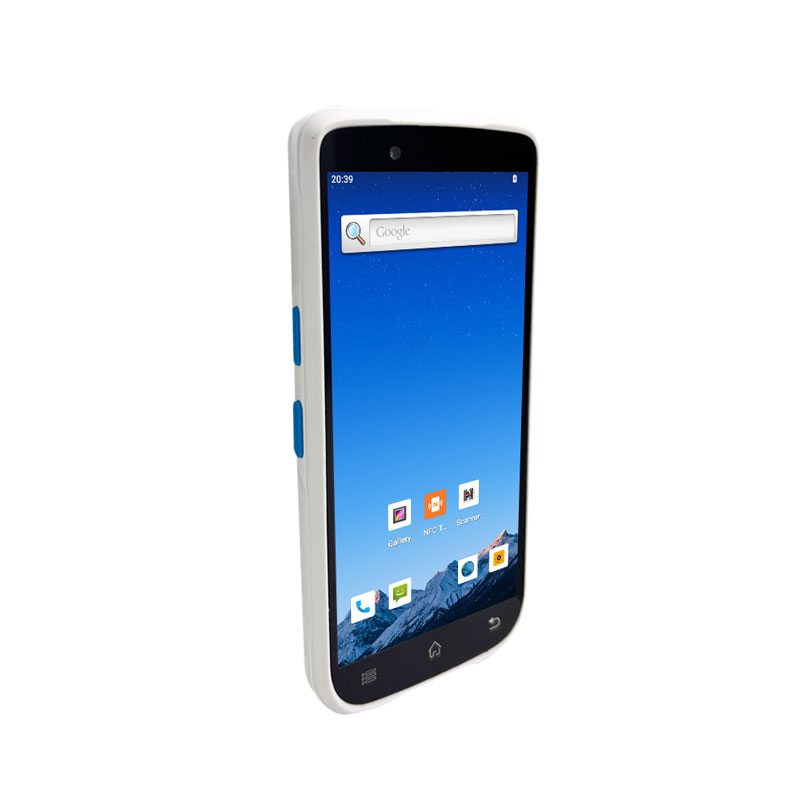

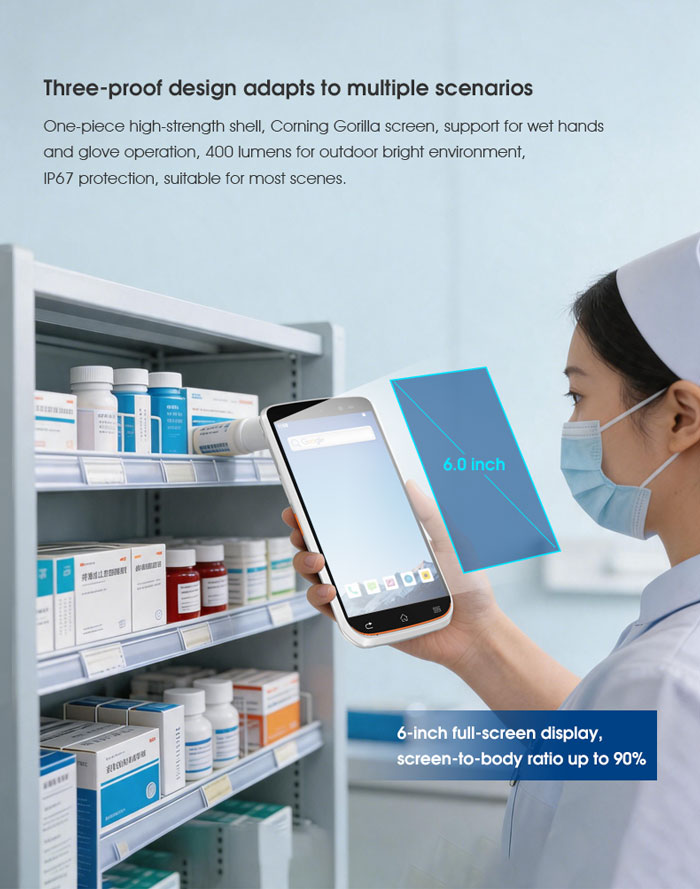

Screen

6.0 inch, resolution 720 * 1440, 400 lumen

Touch

Industrial Gorilla Five-Point Touch Screen

Backlight

Led backlight

Battery

Removable lithium-ion polymer battery, capacity: 4850mAh;4.35 V normal use time: more than 8 hours, standby time: 300 hours

Card slot

Micro-SIM card X 1, TF card X 1

I/O

Type-C USB X 1 with OTG support

Network

4G/3G/2G 、Wi-Fi 、GPRS

Notification method

Sound, vibration

Audio

Microphone, speaker, earpiece

Key button

Power button, volume +/-button, left and right scan button

Power adapter

Charging time 3-4 hours, use standard power adapter and data cable to support optional fast charging, fast charging for 2.5 hours

Sensor

Gravity sensing, light sensing, distance sensing

PSAM

Support for 2 PSAM cards

CPU

Octa-core 2.0 GHz

OS

Android 12.0

Memory

4GB RAM + 64GB ROM

8GB RAM + 128GB ROM (optional)

Supports Micro SD (TF) up to 128 G expansion

WWAN

2G：G850/900/1800/1900

3G：W1/2/5/8

4G： B1/3/4/5/7/8/12/20/38/39/40/41

WIFI

WIFI frequency: 2.4 GHz & 5 GHz

WIFI protocol: 802.11 a/B/G/n/AC protocol

GPS

Beidou, Glonass, GPS, Galileo

Bluetooth

Bluetooth 5.0 is supported

WIFI

WIFI frequency: 2.4 GHz & 5 GHz

WIFI protocol: 802.11 a/B/G/n/AC protocol

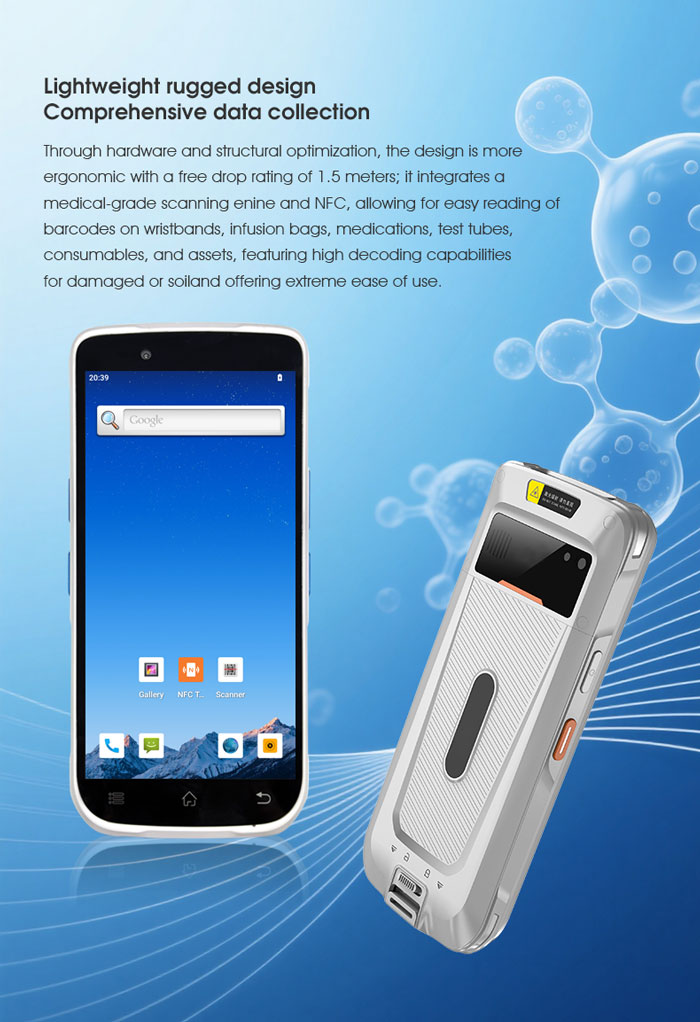

Scan engine

N6601 2D scanning engine(supporting Zebra, Honeywell and other brands)

Support 1Dbarcode type

UPC/EAN,Bookland EAN,UCC Coupon Code,ISSN EAN, Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39, Code 32, Code 93,Code 11, Interleaved 2 of 5,Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, Korean 3 of 5, Matrix 2 of 5, Inverse 1D, GS1 DataBar, Coposite Codes, etc.

Supports 2 Code type

PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code,Micro QR,QR inverse,Aztec,Aztec Inverse, Postal Codes: US Postnet, US Planet,UK Postal, Australian Postal, Japan Postal,Netherlands KIX Code, USPS 4CB/One/Intelligent Mail, UPS FICS Pstal, etc.

Cameras

Front camera: 5 megapixels

Rear camera: 13MP

Support autofocus and flash

Operating System

Android 12.0

SDK

Handheld terminal software development kit

Development language

Java

Development tools

Eclipse/Android Studio

NFC

(optional)

Operating band: 13.56 MHz

Protocols supported: Mifare Classic (MF1) NDEF, NfcV (15693), Ultraligh (MF0), IsoDep (quasi-CPU MF3),IsoDep (CPU)

Reading distance: 0-5cm (depending on card type)

Operating temperature

-20  ℃  to 60  ℃

Humidity

5% to 95% (non-condensing)

Drop specification

Six sides and four corners can withstand a drop of 1.5 meters.

Rolling specifications

Continuous rolling of 1000 wheels for 0.5 m, and stable operation after rolling of 6 contact surfaces

Vibration

Random (10 Hz to 30 KHz); 60 minutes per axis, 3 axes

Electrostatic protection

+/-15 kV air discharge; +/-8kv contact

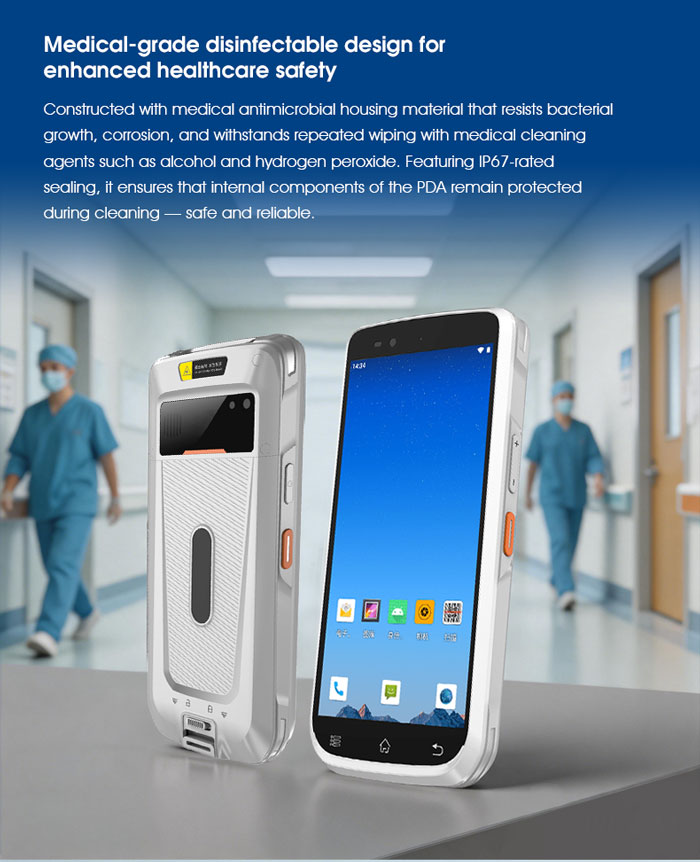

Degree of protection

IP67 meets IEC sealing standard
