PRODUCTS
Category：UHF PDA & POS
Product ID：S5 PLUS
Views：2875
Product Introduction：Compact tablet terminals, sealing level of IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, extremely large internal 10000mAh battery
Details

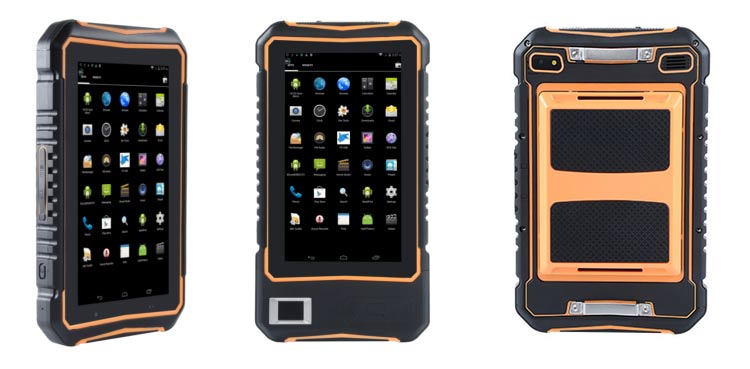

S5 PLUS serial products extend Rakinda product serials into Android OS 7.0 with 4G high-speed network communication. Compact tablet terminals, sealing level of IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, extremely large internal 10000mAh battery, quick- charging technology, and 7.0-inch tough Gorilla Glass 3 screen are all equipped to ensure performance. Latest 1.3GHz quad-core processor 2GB RAM/16GB ROM and up to 32GB expansion are all designed to boost up experience level.
Product Features:
1.Extraordinary Battery Life
Extremely large internal battery of 10000mAh can ensure long battery in different using environment.
2.Rugged Ergonomic and Over-molding Design
Over-molding and ergonomic hardware design can satisfy most of the tough environment from different fields.
3. Extremely Stable Hardware Display
7.0 inch tough screen can ensure the performance under different tough environment.
4. Highly Customized Structure
'All-in-One' hardware design conception can expand the hardware modules integration based on different project requirements, especially like UHF+HF, UHF+LF, HF+LF.
5. Highly Integrated and Preinstalled Application
The highly integrated and preinstalled Scan Server can satisfy most of the solutions obtained from Google Play by the working principle of 'Plug and Play'.
6.Quick-Charging
Quick-charging technology can provide the most efficient experience.
7.Perfect Service
Professional and skillful service involving the whole life cycle can guarantee the stability.
Product Parameters:
| PHYSICAL CHARACTERISTICS | |||
| Dimension | 208mm(H)x130mm(W)x20mm(D)±2 mm | ||
| Weight | Net Weight: 500g (including battery&wrist strap) | ||
| Display | Gorilla Glass 3 9H 5.0 in. TFT-LCD(720x1280)touch screen with backlight | ||
| Backlight | LED backlight | ||
| Keypads | 3 TP keys | ||
| Expansions | 2 PSAM, 1 SIM, 1 TF | ||
| Battery | Rechargeable li-ion polymer, 3.7V, 10000mAh | ||
| PERFORMANCE CHARACTERSTICS | |||
| CPU | Quad A53 1.3GHz quad-core | ||
| Operating System | Android 7.0 | ||
| Storage | 2GB RAM, 16GB ROM, MicroSD(max 32GB expansion) | ||
| USER ENVIRONMENT | |||
| Operating Temp. | -20℃ to 50℃ | ||
| Storage Temp. | -20℃ to 70℃ | ||
| Humidity | 5%RH to 95%RH(non-condensing) | ||
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | ||
| Sealing | IP65, IEC compliance | ||
| ESD | ±15kv air discharge, ±8kv direct discharge | ||
| DEVELOPMENT ENVIRONMENT | |||
| SDK | HHW Software Development Kit | ||
| Language | Java | ||
| Environment | Android Studio or Eclipse | ||
| DATA COMMUNICATION | |||
| WWAN | TDD-LTE Band 38, 39, 40, FDD-LTE Band 1, 2, 3, 4, 7; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge 850/900/1800/1900MHz); | ||
| WLAN | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | ||
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 | ||
| GPS | GPS(embedded A-GPS), accuracy of 5 m | ||
| DATA CAPTUER | |||
| BARCODE READER(OPTIONAL) | |||
| 1D barcode | 1D laser engine | Honeywell N431x | |
| Symbologies | All major 1D barcodes | ||
| 2D barcode | 2D CMOS Imager | Honeywell N6603 | |
| Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | ||
| COLOR CAMERA | |||
| Resolution | 8.0 megapixel | ||
| Lens | Auto-focus with LED flash | ||
| RFID READER(OPTIONAL) | |||
| RFID LF | Frequency | 125KHz/134.2KHz(FDX-B/HDX) | |
| Protocol | ISO 11784&11785 | ||
| R/W Range | 2cm to 10 cm | ||
| RFID HF | Frequency | 13.56MHz | |
| Protocol | ISO 14443A&15693 | ||
| R/W Range | 2cm to 8cm | ||
| RFID UHF | Frequency | 865~868MHz or 920~925MHz | |
| Protocol | EPC C1 GEN2/ISO 18000-6C | ||
| Antenna Gain | Circular antenna(2dBi) | ||
| R/W Range | 1 m to 1.5 m(tags and environment dependant) | ||
| Active 2.45GHz | Read range more than 200 m | ||
| 433MHz | Read range more than 200 m | ||
| ZigBee READER(OPTIONAL) | |||
| Protocol | IEEE 802.15.4 | ||
| Reading Range | 100 m to 200 m | ||
| FINGERPRINT READER(OPTIONAL) | |||
| Sensor | TCS1ST | ||
| Sensor type | Capacitive, area sensor | ||
| Resolution | 508 DPI | ||
| Performance | FRR<0.008%, FAR<0.005% | ||
| Capacity | 1000 | ||
| PSAM SECURITY(OPTIONAL) | |||
| Protocol | ISO 7816 | ||
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 | ||
| Slot | 2 slots(maximum) | ||
| ACCESSORIES | |||
| Standard | 1xPower Supply 1xLithium Polymer Battery 1xDC charging cable 1xUSB data cable | ||
| Optional | Magnetic charging cable; Carrying case | ||
