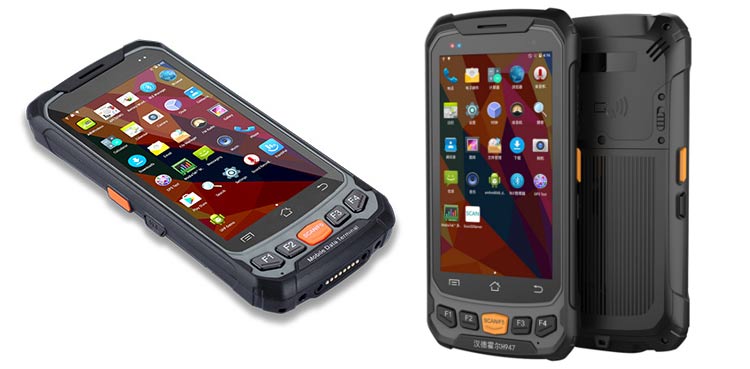

S6 PLUS Android Mobile Computer

Category:PDA & POS Terminal

Product ID:S6 PLUS

Views:1190

Product Introduction:Latest 1.3GHz quad-core processor 2GB RAM/16GB ROM and up to 32GB expansion are all designed to boost up experience level.

Details

S6 PLUS serial products extend Rakinda product serials into Android OS 5.1.1 with 4G high speed network communication. Inside the compact handheld device, sealing level of IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, quick- charging technology, and 4.7 inch tough Gorilla Glass 3 screen are all equipped to ensure performance. Latest 1.3GHz quad-core processor 2GB RAM/16GB ROM and up to 32GB expansion are all designed to boost up experience level.

Product Features:
1. Extremely Stable Performance
Android 5.1.1 OS with memory of 2GB RAM/16GB ROM can provide the highly standard experience
2. High Speed Data Communication
Double insurance of 4G high Speed network and dual-frequency WIFI network can ensure the real-time data communication in different using environment;
3. Rugged Ergonomic and Over-molding Design
Over-molding and ergonomic hardware design can satisfy most of the tough environment from different fields;
4. Extremely Stable Hardware Display
4.7 inch Gorilla Glass 3 9H screen can ensure the performance under different tough environment;
5. Highly Customized Structure
‘All-in-One’ hardware design conception can expand the hardware modules integration based on different project requirements, especially like UHF+HF, UHF+LF; HF+LF;
6. Quick-Charging
Quick-charging technology can provide the most efficient experience;
7. Perfect Service

Professional and skillful service involving the whole life cycle can guarantee the stability.


Product Parameters:

PHYSICAL CHARACTERISTICS
Dimension 162mm(H)x78mm(W)x22mm(D)±2 mm
Weight Net Weight :<450g (including battery&wrist strap)
Display Gorilla Glass 3 9H 4.7 in. TFT-LCD(720x1280)touch screen with backlight
Backlight LED backlight
Keypads 3 TP keys, 5 function keys, 4 side buttons
Expansions 2 PSAM, 1 SIM, 1 TF
Battery Rechargeable li-ion polymer, 3.7V, 4300mAh
PERFORMANCE CHARACTERSTICS
CPU Quad A53 1.3GHz quad-core
Operating System Android 5.1.1
Storage 2GB RAM, 16GB ROM, MicroSD(max 32GB expansion)
USER ENVIRONMENT
Operating Temp. -20℃ to 50℃
Storage Temp. -20℃ to 70℃
Humidity 5%RH to 95%RH(non-condensing)
Drop Specifications 5ft./1.5 m drop to concrete across the operating temperature range
Sealing IP65, IEC compliance
ESD ±15kv air discharge, ±8kv direct discharge
DEVELOPMENT ENVIRONMENT
SDK HHW Software Development Kit
Language Java
Environment Android Studio or Eclipse
DATA COMMUNICATION
WWAN TDD-LTE Band 38, 39, 40, 41 FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz);
WLAN 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n
WPAN Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
GPS GPS(embedded A-GPS), accuracy of 5 m
DATA CAPTUER
BARCODE READER(OPTIONAL)
1D barcode Symbologies All major 1D barcodes
2D barcode 2D CMOS Imager New Land Scan Engine
Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
COLOR CAMERA
Resolution 8.0 megapixel
Lens Auto-focus with LED flash
RFID READER(OPTIONAL)
RFID LF Frequency 125KHz/134.2KHz(FDX-B/HDX)
Protocol ISO 11784&11785
R/W Range 2cm to 10 cm
RFID HF Frequency 13.56MHz
Protocol ISO 14443A&15693
R/W Range 2cm to 8cm
RFID UHF Frequency                865~868MHz or 920~925MHz
Protocol EPC C1 GEN2/ISO 18000-6C
Antenna Gain Circular antenna(2dBi)
R/W Range 2 m to 4 m(tags and environment dependent)
Active 2.45GHz Read range more than 200 m
433MHz Read range more than 200 m
PSAM SECURITY(OPTIONAL)
Protocol ISO 7816
Baud rate 9600, 19200, 38400,43000, 56000, 57600, 115200
Slot 2 slots(maximum)
ACCESSORIES
Standard 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable; 1xUSB data cable
Optional Carrying case; Cradle
