Category：Industrial Scanner
Product ID：R2
Views：3365

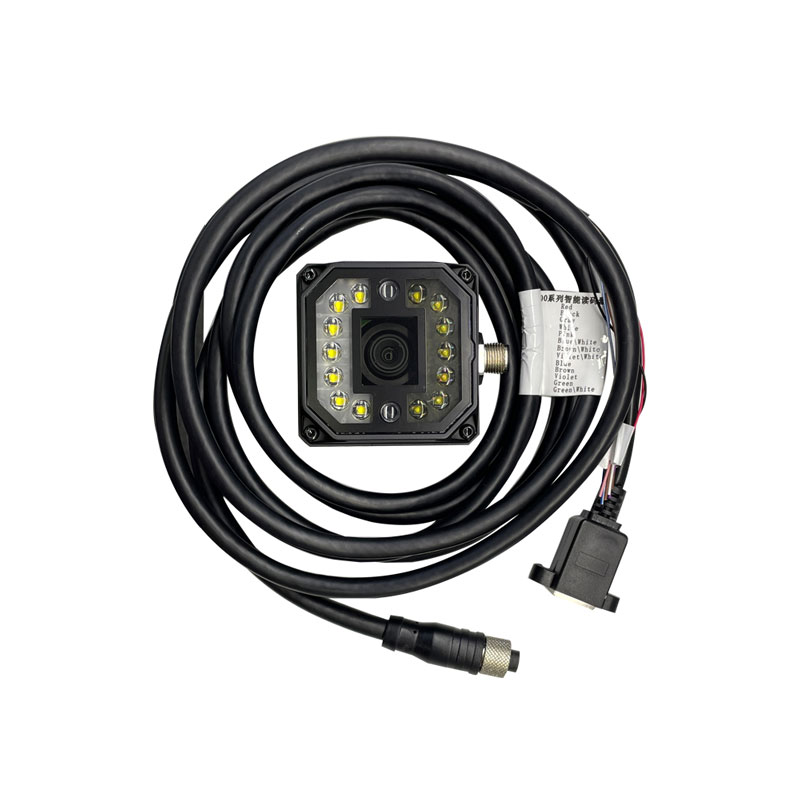

Product Introduction：The R2 Series industrial barcode reader is designed to deliver exceptional performance and versatility, equipped with advanced features to tackle challenging code reading scenarios.
Details
The R2 Series barcode scanner leverages cutting-edge deep learning algorithms to deliver superior code reading robustness, ensuring accurate and reliable performance across diverse applications. Equipped with a high-quality CMOS global shutter sensor, it captures crisp, clear images even in challenging conditions.
Industrial Barcode Reader Features
* High-Resolution Image Sensor: Equipped with a 2368 × 1760 CMOS image sensor, it ensures high-quality images for accurate barcode reading.
* Advanced Decode Capabilities: Provides advanced decoding capabilities for 1D and 2D barcodes, including Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, and Industrial 25.
* High Frame Rate and Reading Speed: Provides frame rates up to 30 fps and can read up to 60 codes per second.
* CMOS Global Shutter Sensor: Equipped with a CMOS global shutter sensor, it ensures clear and distortion-free images even in high-speed motion or low-light conditions.
* Customizable and User-Friendly: Provides personalized customization options to meet specific business needs. Features a clear LCD display and an audible beep when paying. The device also supports remote IAP upgrades for easy system updates. The R2 series also offers a variety of lens options and light source configurations to meet specific needs.
Stationary Industrial Scanners Parameters
|
Model |
R2 Series |
|
Image Sensor |
2368 × 1760 CMOS |
|
Performance Characteristics |
|
|
Decode Capabilities |
1D：Code 39, Code 93, Code 128, Code Bar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 and Industrial 25 2D ：QR Code, Data Matrix, PDF 417 |
|
Max. Frame Rate |
30 fps |
|
Max. Reading Speed |
60 codes/sec |
|
Sensor Type |
CMOS ，global shutter 3.2 µm × 3.2 µm |
|
Pixel Size |
3.2 µm × 3.2 µm |
|
Sensor Size |
1/ 1.7” |
|
Exposure Time |
16 μs ~ 1 sec |
|
Gain |
0 ~ 18 dB |
|
Resolution |
1D 3mil; 2D 5mil |
|
Communication Protocol |
Smart SDK，TCP Client ，Serial， FTP ，TCP Server， Profinet， MELSEC， Ethernet/ IP， ModBus， Fins ，SLMP |
|
Electrical Feature |
|
|
Interface |
17-pin M12 connector provides power and I/O, including non-isolated input (Line ln 0/1/2) x 3, non-isolated output (Line Out 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported. |
|
Data Interface |
Fast Ethernet（ 100 Mbit/s） |
|
Digital l/O |
Including non-isolated input (Line ln 0/1/2) x 3, non-isolated output (Line Out 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported. |
|
Power Supply |
12 ~ 24 VDC |
|
Max.Power Consumption |
48W@24 VDC（ (light source enabled)） |
|
User Environment |
|
|
Typical Depth of Field |
08mm:51*39; 12mm: 34*26; 16mm: 27*20 |
|
Lens Interface |
M12-mount ，Manual focus |
|
Fill Light |
6 independent control channels, totaling 14 white lights, half with polarizing lens cover |
|
Light Source |
Spotlight white light, available for purchase with spotlight red/blue light, wide-angle white/blue light |
|
Indicator Light |
Power indicator(PWR),network indicator (LNK),status indicator(STS),result indicator (OK/NG) |
|
Dimension |
65.2 mm×65.2mm×47.2mm |
|
Weight |
Approx. 280 g (0.6 lb.) |
|
Seal |
IP67 |
|
Operating Temp. |
0℃~+50℃ |
|
Storage Temp. |
-30℃~+70℃ |
|
Humidity |
20% to 95% RH,non-condensing |
|
Regulatory |
CE,FCC.RoHS |
